Toyota Carina ff AT171 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
JP
CARINA FF
AT171-CEMVF (1988)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

AT171-CEMVF (1988)

Toyota Carina Ff

Production May 1988 - Aug 1992

Engine 4AGE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

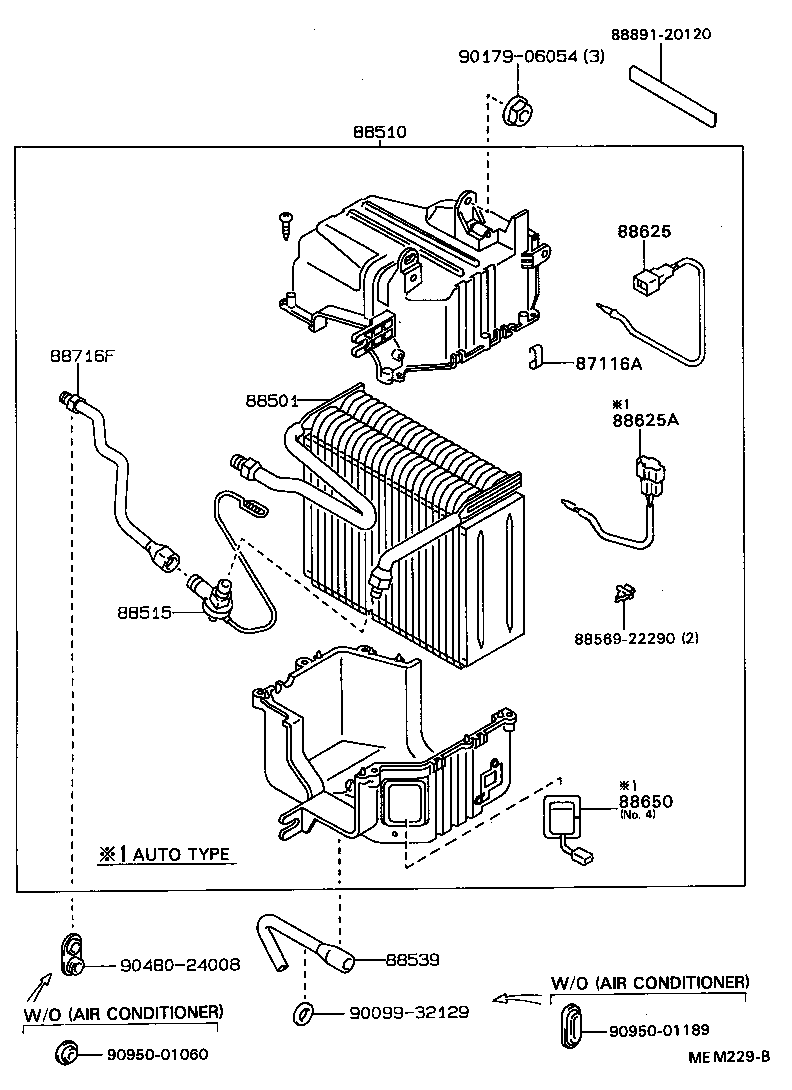

ILLUST NO. 1 OF 2(8805- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	AT171..5F..S	05/1988 - 05/1990	3
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20220	AT17#	05/1988 - 11/1992	1
88510 - UNIT ASSY, COOLER
88510-20800	AT170..4FC..SE;ST170..SGEXT,SX;AT171,175,CT170..GLIM,S,SE,SGEXT ｵ-ﾄｴｱｺﾝ	05/1988 - 04/1989	1
88510-20810	AT171..4FC;AT175..SGEXT;AT171,CT176..5F..(DX,GLIM,SG);AT170,CT170,ST170..SE,SG,SGEXT,SX	05/1988 - 05/1990	1
88510-20780	AT171..5F..S	05/1988 - 01/1990	1
88515 - VALVE, COOLER EXPANSION
88515-16040	AT17#	05/1988 - 11/1992	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-20160	AT171,CT170..S,SE	05/1988 - 03/1989	1
88539-20160	ET176;AT170,171,ST170..DX,GLIM,SE,SGEXT,SV,SX	05/1988 - 03/1989	1
88539-20160	AT170..SED..EFI;AT170,ST170..(DX,SE,SV,SX)..(CBR,CI);AT171,ET176,ST170..(DX,GLIM,SE,SG,SGEXT,STD)..(CBR,EFI)	03/1989 - 12/1990	1
88539-20160	ST170..SGEXT..CI;AT170,ST170..WG..EFI;AT171,CT170..S,SE,SV	03/1989 - 12/1990	1
88625 - THERMISTOR, COOLER, NO.1
88625-32040	AT171..5F..S	05/1988 - 05/1990	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20500	AT171..S ｵ-ﾄｴｱｺﾝ,NO.3	05/1988 - 03/1989	1
88650-20500	AT17#,CT170..GLIM,SE,SGEXT NO.3	05/1988 - 03/1989	1
88650-20590	AT171,175..GLIM,S,SGEXT NO.4,ｱﾘ(ｵ-ﾄｴｱｺﾝ)	05/1988 - 04/1989	1
88650-20630	AT171..GLIM NO.1	05/1988 - 08/1989	1
88650-20490	AT171,ST170..S,SGEXT,SX NO.2	05/1988 - 05/1990	1
88650-20620	AT171,175..S,SG,SGEXT NO.1	05/1988 - 05/1990	1
88650-20500	AT170..SV..EFI;AT170..SE,SGEXT;ST170..(SE,SX)..CI;AT171,175,CT170,ST170..(GLIM,SE,SGEXT,SV)..(DSL,EFI) NO.3	03/1989 - 12/1990	1
88650-20500	ST170..SGEXT..CI;AT171,ST170..(S,SX)..(EFI,EFIS) ｵ-ﾄｴｱｺﾝ,NO.3	03/1989 - 12/1990	1
88650-20590	AT171..EFI NO.4	05/1990 - 08/1992	1
88650-20631	AT171..GLIM NO.1	08/1989 - 08/1992	1
88650-20760	AT17#..DX,S,SE,SG,SGEXT NO.1	05/1990 - 12/1990	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-2B420	AT171..5F..S	05/1988 - 05/1990	1
Common parts
88569-22290
88891-20120
90099-32129
90179-06054
90480-24008
90950-01060
90950-01189

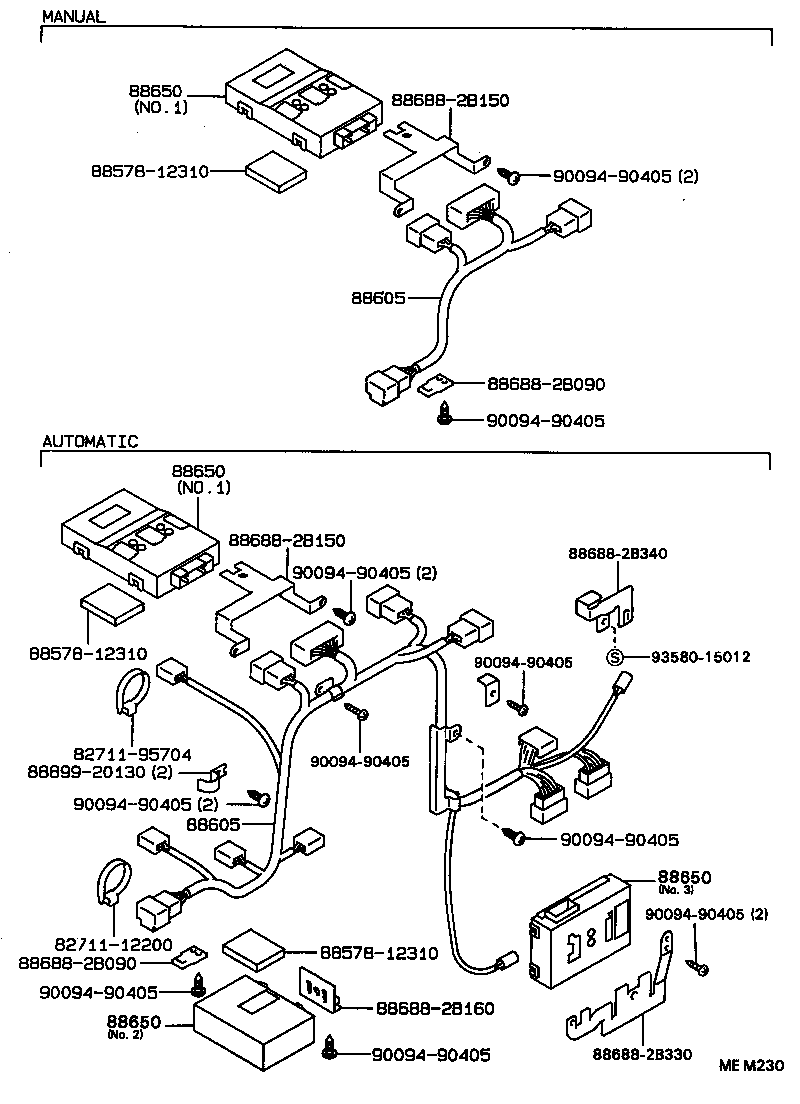

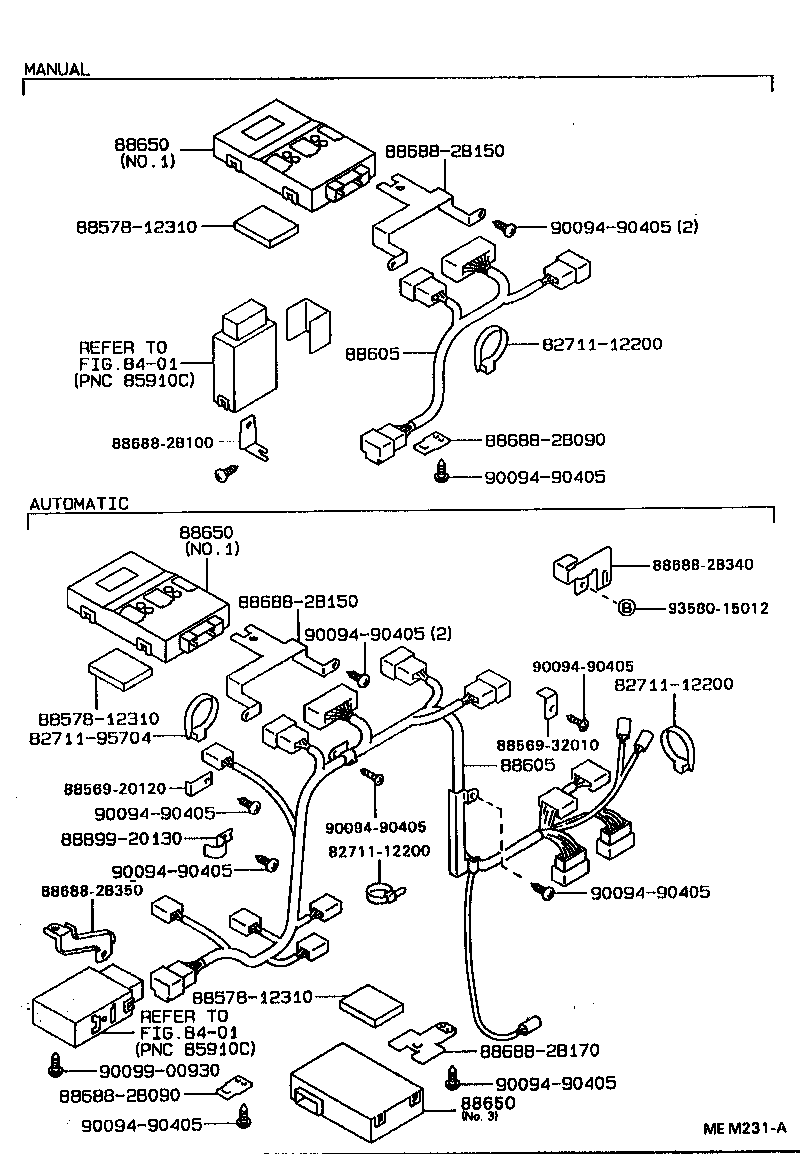

ILLUST NO. 2 OF 2(8805- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2B100	AT175..4FC..SG;AT171,ST170..GLIM,SE,SGEXT,SX	05/1988 - 03/1989	1
88605-2B480	AT171..5F..S ｵ-ﾄｴｱｺﾝ	05/1988 - 05/1990	1
88605-2B470	AT171,175..5F..(S,SGEXT)	05/1988 - 05/1990	1
88605-2B100	AT175..4FC..SG;AT171,ST170..GLIM,SE,SX	03/1989 - 05/1990	1
88605-2B490	AT171..5F..S S ﾘﾐﾃﾂﾄﾞ OR SX ﾘﾐﾃﾂﾄﾞ,ｵ-ﾄｴｱｺﾝ	05/1988 - 05/1990	1
88605-2B420	AT171..EFI ｵ-ﾄｴｱｺﾝ	05/1990 - 08/1992	1
88605-2B740	AT171..EFI	05/1990 - 08/1992	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2B100	AT175..4FC..SG;AT171,ST170..GLIM,SE,SGEXT,SX	05/1988 - 03/1989	1
88605-2B480	AT171..5F..S ｵ-ﾄｴｱｺﾝ	05/1988 - 05/1990	1
88605-2B470	AT171,175..5F..(S,SGEXT)	05/1988 - 05/1990	1
88605-2B100	AT175..4FC..SG;AT171,ST170..GLIM,SE,SX	03/1989 - 05/1990	1
88605-2B490	AT171..5F..S S ﾘﾐﾃﾂﾄﾞ OR SX ﾘﾐﾃﾂﾄﾞ,ｵ-ﾄｴｱｺﾝ	05/1988 - 05/1990	1
88605-2B420	AT171..EFI ｵ-ﾄｴｱｺﾝ	05/1990 - 08/1992	1
88605-2B740	AT171..EFI	05/1990 - 08/1992	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20500	AT171..S ｵ-ﾄｴｱｺﾝ,NO.3	05/1988 - 03/1989	1
88650-20500	AT17#,CT170..GLIM,SE,SGEXT NO.3	05/1988 - 03/1989	1
88650-20590	AT171,175..GLIM,S,SGEXT NO.4,ｱﾘ(ｵ-ﾄｴｱｺﾝ)	05/1988 - 04/1989	1
88650-20630	AT171..GLIM NO.1	05/1988 - 08/1989	1
88650-20490	AT171,ST170..S,SGEXT,SX NO.2	05/1988 - 05/1990	1
88650-20620	AT171,175..S,SG,SGEXT NO.1	05/1988 - 05/1990	1
88650-20500	AT170..SV..EFI;AT170..SE,SGEXT;ST170..(SE,SX)..CI;AT171,175,CT170,ST170..(GLIM,SE,SGEXT,SV)..(DSL,EFI) NO.3	03/1989 - 12/1990	1
88650-20500	ST170..SGEXT..CI;AT171,ST170..(S,SX)..(EFI,EFIS) ｵ-ﾄｴｱｺﾝ,NO.3	03/1989 - 12/1990	1
88650-20590	AT171..EFI NO.4	05/1990 - 08/1992	1
88650-20631	AT171..GLIM NO.1	08/1989 - 08/1992	1
88650-20760	AT17#..DX,S,SE,SG,SGEXT NO.1	05/1990 - 12/1990	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20500	AT171..S ｵ-ﾄｴｱｺﾝ,NO.3	05/1988 - 03/1989	1
88650-20500	AT17#,CT170..GLIM,SE,SGEXT NO.3	05/1988 - 03/1989	1
88650-20590	AT171,175..GLIM,S,SGEXT NO.4,ｱﾘ(ｵ-ﾄｴｱｺﾝ)	05/1988 - 04/1989	1
88650-20630	AT171..GLIM NO.1	05/1988 - 08/1989	1
88650-20490	AT171,ST170..S,SGEXT,SX NO.2	05/1988 - 05/1990	1
88650-20620	AT171,175..S,SG,SGEXT NO.1	05/1988 - 05/1990	1
88650-20500	AT170..SV..EFI;AT170..SE,SGEXT;ST170..(SE,SX)..CI;AT171,175,CT170,ST170..(GLIM,SE,SGEXT,SV)..(DSL,EFI) NO.3	03/1989 - 12/1990	1
88650-20500	ST170..SGEXT..CI;AT171,ST170..(S,SX)..(EFI,EFIS) ｵ-ﾄｴｱｺﾝ,NO.3	03/1989 - 12/1990	1
88650-20590	AT171..EFI NO.4	05/1990 - 08/1992	1
88650-20631	AT171..GLIM NO.1	08/1989 - 08/1992	1
88650-20760	AT17#..DX,S,SE,SG,SGEXT NO.1	05/1990 - 12/1990	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20500	AT171..S ｵ-ﾄｴｱｺﾝ,NO.3	05/1988 - 03/1989	1
88650-20500	AT17#,CT170..GLIM,SE,SGEXT NO.3	05/1988 - 03/1989	1
88650-20590	AT171,175..GLIM,S,SGEXT NO.4,ｱﾘ(ｵ-ﾄｴｱｺﾝ)	05/1988 - 04/1989	1
88650-20630	AT171..GLIM NO.1	05/1988 - 08/1989	1
88650-20490	AT171,ST170..S,SGEXT,SX NO.2	05/1988 - 05/1990	1
88650-20620	AT171,175..S,SG,SGEXT NO.1	05/1988 - 05/1990	1
88650-20500	AT170..SV..EFI;AT170..SE,SGEXT;ST170..(SE,SX)..CI;AT171,175,CT170,ST170..(GLIM,SE,SGEXT,SV)..(DSL,EFI) NO.3	03/1989 - 12/1990	1
88650-20500	ST170..SGEXT..CI;AT171,ST170..(S,SX)..(EFI,EFIS) ｵ-ﾄｴｱｺﾝ,NO.3	03/1989 - 12/1990	1
88650-20590	AT171..EFI NO.4	05/1990 - 08/1992	1
88650-20631	AT171..GLIM NO.1	08/1989 - 08/1992	1
88650-20760	AT17#..DX,S,SE,SG,SGEXT NO.1	05/1990 - 12/1990	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20500	AT171..S ｵ-ﾄｴｱｺﾝ,NO.3	05/1988 - 03/1989	1
88650-20500	AT17#,CT170..GLIM,SE,SGEXT NO.3	05/1988 - 03/1989	1
88650-20590	AT171,175..GLIM,S,SGEXT NO.4,ｱﾘ(ｵ-ﾄｴｱｺﾝ)	05/1988 - 04/1989	1
88650-20630	AT171..GLIM NO.1	05/1988 - 08/1989	1
88650-20490	AT171,ST170..S,SGEXT,SX NO.2	05/1988 - 05/1990	1
88650-20620	AT171,175..S,SG,SGEXT NO.1	05/1988 - 05/1990	1
88650-20500	AT170..SV..EFI;AT170..SE,SGEXT;ST170..(SE,SX)..CI;AT171,175,CT170,ST170..(GLIM,SE,SGEXT,SV)..(DSL,EFI) NO.3	03/1989 - 12/1990	1
88650-20500	ST170..SGEXT..CI;AT171,ST170..(S,SX)..(EFI,EFIS) ｵ-ﾄｴｱｺﾝ,NO.3	03/1989 - 12/1990	1
88650-20590	AT171..EFI NO.4	05/1990 - 08/1992	1
88650-20631	AT171..GLIM NO.1	08/1989 - 08/1992	1
88650-20760	AT17#..DX,S,SE,SG,SGEXT NO.1	05/1990 - 12/1990	1
Common parts
82711-12200
82711-95704
88578-12310
88688-2B090
88688-2B150
88688-2B160
88688-2B330
88688-2B340
88899-20130
90094-90405
93580-15012

ILLUST NO. 2 OF 2(8805- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2B100	AT175..4FC..SG;AT171,ST170..GLIM,SE,SGEXT,SX	05/1988 - 03/1989	1
88605-2B480	AT171..5F..S ｵ-ﾄｴｱｺﾝ	05/1988 - 05/1990	1
88605-2B470	AT171,175..5F..(S,SGEXT)	05/1988 - 05/1990	1
88605-2B100	AT175..4FC..SG;AT171,ST170..GLIM,SE,SX	03/1989 - 05/1990	1
88605-2B490	AT171..5F..S S ﾘﾐﾃﾂﾄﾞ OR SX ﾘﾐﾃﾂﾄﾞ,ｵ-ﾄｴｱｺﾝ	05/1988 - 05/1990	1
88605-2B420	AT171..EFI ｵ-ﾄｴｱｺﾝ	05/1990 - 08/1992	1
88605-2B740	AT171..EFI	05/1990 - 08/1992	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2B100	AT175..4FC..SG;AT171,ST170..GLIM,SE,SGEXT,SX	05/1988 - 03/1989	1
88605-2B480	AT171..5F..S ｵ-ﾄｴｱｺﾝ	05/1988 - 05/1990	1
88605-2B470	AT171,175..5F..(S,SGEXT)	05/1988 - 05/1990	1
88605-2B100	AT175..4FC..SG;AT171,ST170..GLIM,SE,SX	03/1989 - 05/1990	1
88605-2B490	AT171..5F..S S ﾘﾐﾃﾂﾄﾞ OR SX ﾘﾐﾃﾂﾄﾞ,ｵ-ﾄｴｱｺﾝ	05/1988 - 05/1990	1
88605-2B420	AT171..EFI ｵ-ﾄｴｱｺﾝ	05/1990 - 08/1992	1
88605-2B740	AT171..EFI	05/1990 - 08/1992	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20500	AT171..S ｵ-ﾄｴｱｺﾝ,NO.3	05/1988 - 03/1989	1
88650-20500	AT17#,CT170..GLIM,SE,SGEXT NO.3	05/1988 - 03/1989	1
88650-20590	AT171,175..GLIM,S,SGEXT NO.4,ｱﾘ(ｵ-ﾄｴｱｺﾝ)	05/1988 - 04/1989	1
88650-20630	AT171..GLIM NO.1	05/1988 - 08/1989	1
88650-20490	AT171,ST170..S,SGEXT,SX NO.2	05/1988 - 05/1990	1
88650-20620	AT171,175..S,SG,SGEXT NO.1	05/1988 - 05/1990	1
88650-20500	AT170..SV..EFI;AT170..SE,SGEXT;ST170..(SE,SX)..CI;AT171,175,CT170,ST170..(GLIM,SE,SGEXT,SV)..(DSL,EFI) NO.3	03/1989 - 12/1990	1
88650-20500	ST170..SGEXT..CI;AT171,ST170..(S,SX)..(EFI,EFIS) ｵ-ﾄｴｱｺﾝ,NO.3	03/1989 - 12/1990	1
88650-20590	AT171..EFI NO.4	05/1990 - 08/1992	1
88650-20631	AT171..GLIM NO.1	08/1989 - 08/1992	1
88650-20760	AT17#..DX,S,SE,SG,SGEXT NO.1	05/1990 - 12/1990	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20500	AT171..S ｵ-ﾄｴｱｺﾝ,NO.3	05/1988 - 03/1989	1
88650-20500	AT17#,CT170..GLIM,SE,SGEXT NO.3	05/1988 - 03/1989	1
88650-20590	AT171,175..GLIM,S,SGEXT NO.4,ｱﾘ(ｵ-ﾄｴｱｺﾝ)	05/1988 - 04/1989	1
88650-20630	AT171..GLIM NO.1	05/1988 - 08/1989	1
88650-20490	AT171,ST170..S,SGEXT,SX NO.2	05/1988 - 05/1990	1
88650-20620	AT171,175..S,SG,SGEXT NO.1	05/1988 - 05/1990	1
88650-20500	AT170..SV..EFI;AT170..SE,SGEXT;ST170..(SE,SX)..CI;AT171,175,CT170,ST170..(GLIM,SE,SGEXT,SV)..(DSL,EFI) NO.3	03/1989 - 12/1990	1
88650-20500	ST170..SGEXT..CI;AT171,ST170..(S,SX)..(EFI,EFIS) ｵ-ﾄｴｱｺﾝ,NO.3	03/1989 - 12/1990	1
88650-20590	AT171..EFI NO.4	05/1990 - 08/1992	1
88650-20631	AT171..GLIM NO.1	08/1989 - 08/1992	1
88650-20760	AT17#..DX,S,SE,SG,SGEXT NO.1	05/1990 - 12/1990	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20500	AT171..S ｵ-ﾄｴｱｺﾝ,NO.3	05/1988 - 03/1989	1
88650-20500	AT17#,CT170..GLIM,SE,SGEXT NO.3	05/1988 - 03/1989	1
88650-20590	AT171,175..GLIM,S,SGEXT NO.4,ｱﾘ(ｵ-ﾄｴｱｺﾝ)	05/1988 - 04/1989	1
88650-20630	AT171..GLIM NO.1	05/1988 - 08/1989	1
88650-20490	AT171,ST170..S,SGEXT,SX NO.2	05/1988 - 05/1990	1
88650-20620	AT171,175..S,SG,SGEXT NO.1	05/1988 - 05/1990	1
88650-20500	AT170..SV..EFI;AT170..SE,SGEXT;ST170..(SE,SX)..CI;AT171,175,CT170,ST170..(GLIM,SE,SGEXT,SV)..(DSL,EFI) NO.3	03/1989 - 12/1990	1
88650-20500	ST170..SGEXT..CI;AT171,ST170..(S,SX)..(EFI,EFIS) ｵ-ﾄｴｱｺﾝ,NO.3	03/1989 - 12/1990	1
88650-20590	AT171..EFI NO.4	05/1990 - 08/1992	1
88650-20631	AT171..GLIM NO.1	08/1989 - 08/1992	1
88650-20760	AT17#..DX,S,SE,SG,SGEXT NO.1	05/1990 - 12/1990	1
Common parts
82711-12200
82711-95704
88569-20120
88569-32010
88578-12310
88688-2B090
88688-2B100
88688-2B150
88688-2B170
88688-2B340
88688-2B350
88899-20130
90094-90405
90099-00930
93580-15012
Linked diagrams
8401

AT171-CEMVF (1988)

ILLUST NO. 1 OF 2(8805- )

ILLUST NO. 2 OF 2(8805- )

ILLUST NO. 2 OF 2(8805- )
