AT171-CEMVF (1988)
Toyota Carina Ff
Production
May 1988
-
Aug 1992
Engine
4AGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

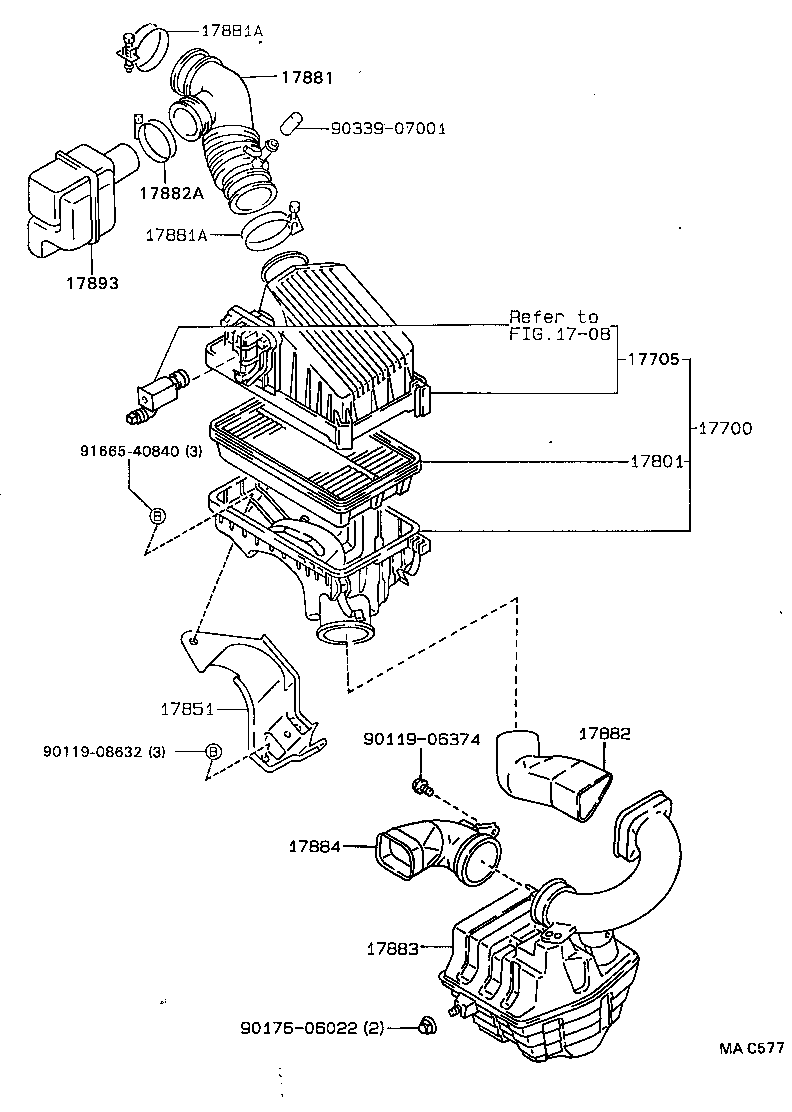

(8908- )4AGE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-16370 |
4AGE..AT171 |
1 | ||
| 17700-16730 |
4AGE..AT171 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-16160 |
4AGE..AT171 |
1 | ||
| 17705-16390 |
4AGE..AT171 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-16020 |
4A#..AT171,175 |
1 | ||
| 17851 - BRACKET, AIR CLEANER SUPPORT | ||||
| 17851-16020 |
4AF#,4AGE,5AFE..AT17# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-16130 |
4AGE..AT171 |
1 | ||
| 17881-16260 |
4AGE..AT171 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80001 |
4AGE..AT171 |
2 | ||
| 96111-10800 |
4AGE..AT171 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80001 |
4AGE..AT171 |
2 | ||
| 96111-10800 |
4AGE..AT171 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-16110 |
4AF#,4AGE,5AFE..AT17# NO.2 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-58003 |
4AGE..AT171 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17880-74060 |
4A#..AT171 |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17884-74030 |
4AF#,4AGE,5AFE..AT17# |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-16040 |
4AGE..AT171 |
1 | ||
| Common parts | ||||
| 90119-06374 | ||||
| 90119-08632 | ||||
| 90176-06022 | ||||
| 90339-07001 | ||||
| 91665-40840 | ||||
| Linked diagrams | ||||
| 1708 | ||||

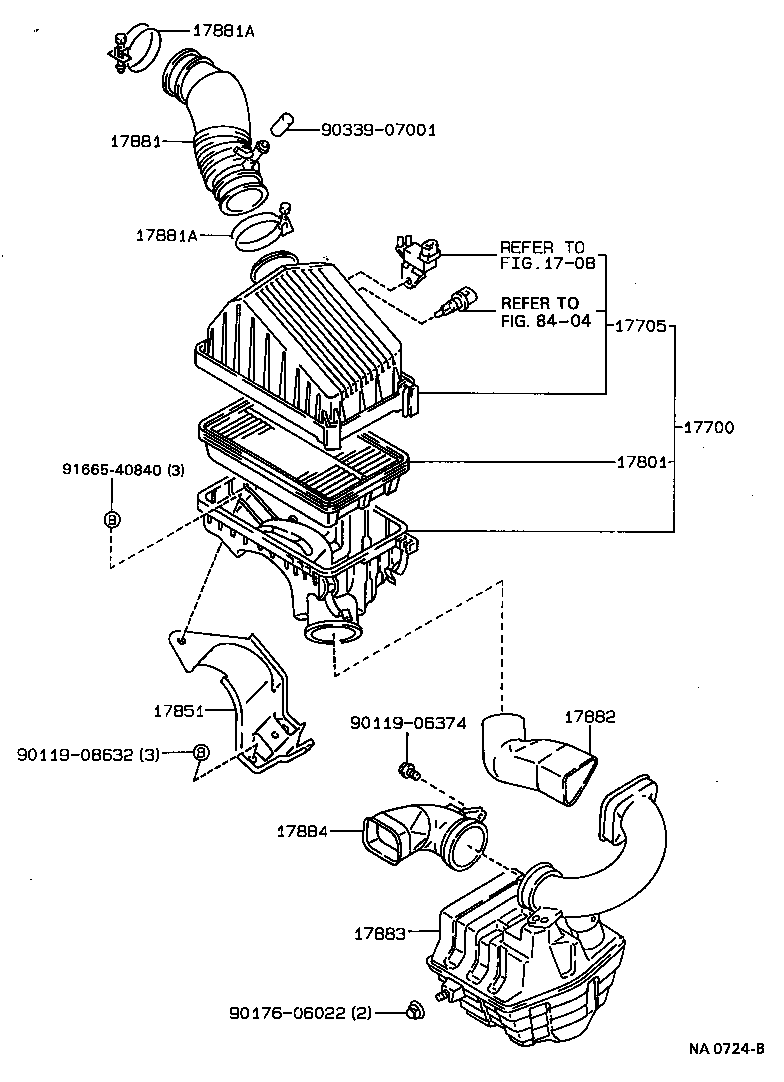

(8805-8908)4AGE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-16370 |
4AGE..AT171 |
1 | ||
| 17700-16730 |
4AGE..AT171 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-16160 |
4AGE..AT171 |
1 | ||
| 17705-16390 |
4AGE..AT171 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-16020 |
4A#..AT171,175 |
1 | ||
| 17851 - BRACKET, AIR CLEANER SUPPORT | ||||
| 17851-16020 |
4AF#,4AGE,5AFE..AT17# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-16130 |
4AGE..AT171 |
1 | ||
| 17881-16260 |
4AGE..AT171 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80001 |
4AGE..AT171 |
2 | ||
| 96111-10800 |
4AGE..AT171 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80001 |
4AGE..AT171 |
2 | ||
| 96111-10800 |
4AGE..AT171 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-16110 |
4AF#,4AGE,5AFE..AT17# NO.2 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17880-74060 |
4A#..AT171 |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17884-74030 |
4AF#,4AGE,5AFE..AT17# |
1 | ||
| Common parts | ||||
| 90119-06374 | ||||
| 90119-08632 | ||||
| 90176-06022 | ||||
| 90339-07001 | ||||
| 91665-40840 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 8404 | ||||
