AT171-CEMVF (1988)

Toyota Carina Ff

Production May 1988 - Aug 1992
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

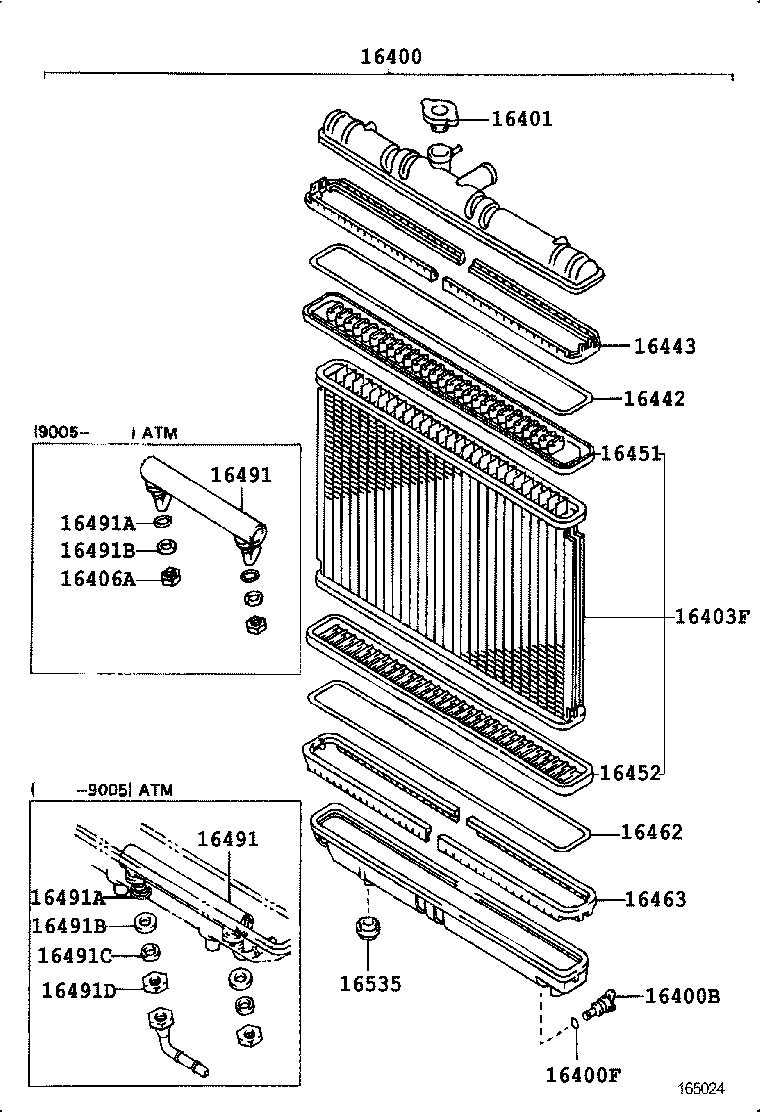

ILLUST NO. 2 OF 2(8805- )4AF#,4AGE,5AF#

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16401 16403F 16406A 16442 16443 16451 16452 16462 16463 16491 16491 16491A 16491A 16491B 16491B 16491C 16491D 16535
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-16220

4AGE..AT171..5F

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

4AFE..AT175;4AFE,5AF..AT170,171..MTM;4AFHE,4AGE,5AFE..AT170,171

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

4AFE,5AF..AT170,171..MTM;4A#..AT171,175..GLIM,SG,SGEXT

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

4AFE..AT175;4AFE,5AF..AT170,171..MTM;4AFHE,4AGE,5AFE..AT170,171

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-74130

4AF#,4AGE..AT171..5F

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-63030

4AF#,4AGE,5AF#..AT17#..MTM

 1
16443 - PLATE, RADIATOR TANK, LOCK, UPPER
16443-15321

4AF#,4AGE,5AF#..AT17#..MTM

 2
16451 - PLATE, RADIATOR CORE, UPPER
16451-63030

4AF#,4AGE,5AF#..AT17#..MTM

 1
16452 - PLATE, RADIATOR CORE, LOWER
16452-63030

5AFE..AT170;4AF#,4AGE,5AF..AT17#..MTM

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16462-63030

4A#,5AF..AT17#..MTM

 1
16463 - PLATE, RADIATOR TANK, LOCK, LOWER
16463-15320

4AFE..AT175;4A#,5AF..AT170,171..MTM

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-11030

4AGE..AT171;4AFE..AT175..4FC;4AFHE..AT171..4FC

 2

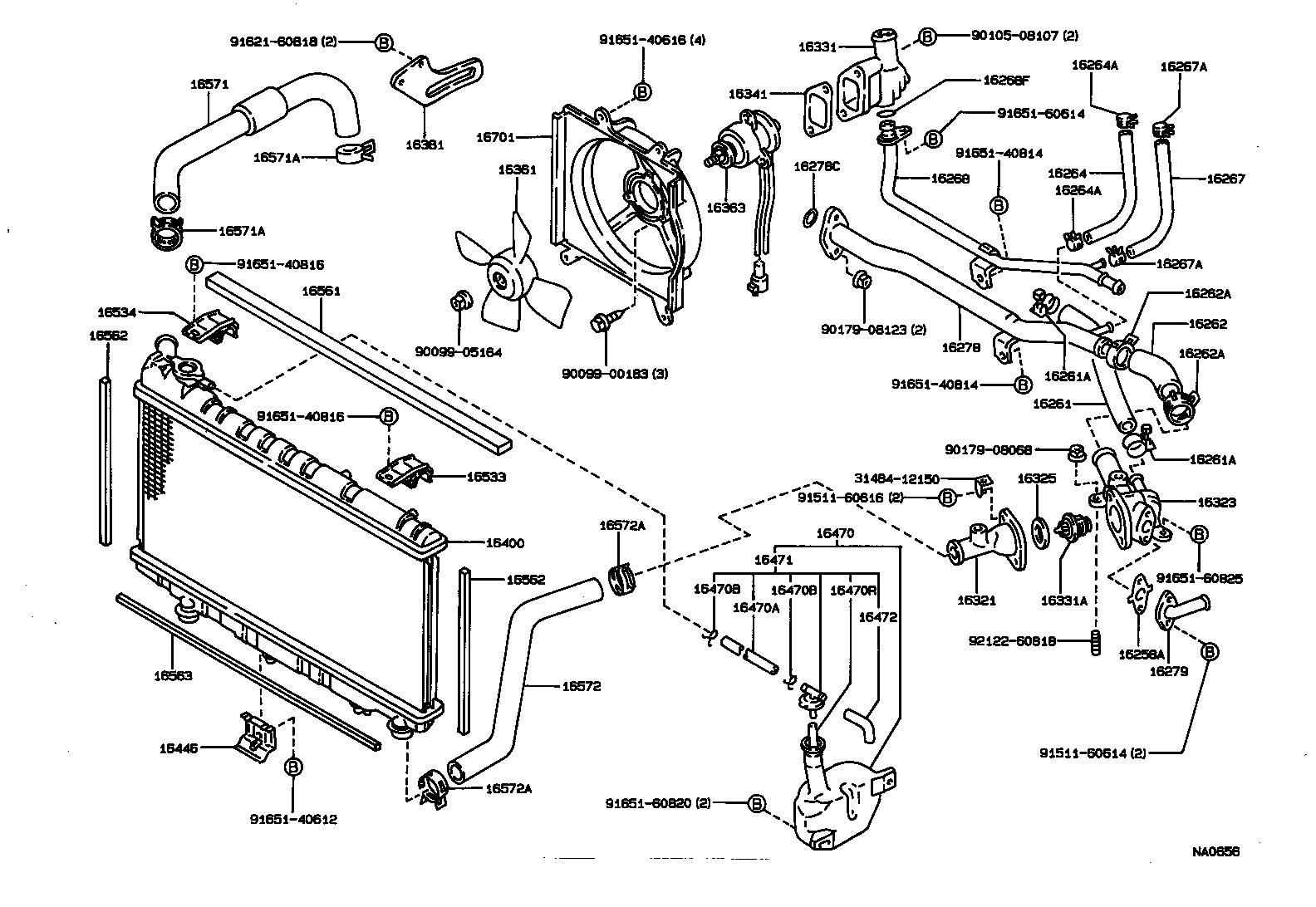

ILLUST NO. 1 OF 2(8805- )4AGE

Click highlighted areas on diagram

diagram 16258A 16261 16261A 16261A 16262 16262A 16262A 16264 16264A 16264A 16267 16267A 16267A 16268 16268F 16278 16278C 16279 16321 16323 16325 16331 16331A 16341 16361 16363 16381 16400 16446 16470 16470A 16470B 16470B 16470R 16471 16472 16533 16534 16561 16562 16562 16563 16571 16571A 16571A 16572 16572A 16572A 16701 3148412150 9009900183 9009905164 9010508107 9017908068 9017908123 9151160614 9151160616 9162160818 9165140612 9165140616 9165140814 9165140814 9165140816 9165140816 9165160614 9165160820 9165160825 9212260818
Part # Description Qty Price
16258A - GASKET(FOR HEATER RETURN)
16258-15011

4AGE..AT171

 1
16261 - HOSE, WATER BY-PASS
16261-15010

4AGE..AT171

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10250

4AGE..AT171

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10250

4AGE..AT171

 2
16262 - HOSE, WATER INLET
16262-15010

4AGE..AT171

 1
16262A - CLIP(FOR WATER INLET HOSE)
90467-34003

4AGE..AT171

 2
16262A - CLIP(FOR WATER INLET HOSE)
90467-34003

4AGE..AT171

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-16030

4AGE..AT171

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13001

4AF#,4AGE,5AFE..AT17#

 2
90467-13001

4A#..AT171,175

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13001

4AF#,4AGE,5AFE..AT17#

 2
90467-13001

4A#..AT171,175

 2
16267 - HOSE, WATER BY-PASS, NO.3
16267-16010

4AGE..AT171

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-13001

4AF#,4AGE..AT171,175

 2
90467-13001

4AGE..AT171

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-13001

4AF#,4AGE..AT171,175

 2
90467-13001

4AGE..AT171

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-16070

4AGE..AT171

 1
16268-16090

4AGE..AT171

 1
16268-16091

4AGE..AT171

 1
16268F - RING, O(FOR WATER BY-PASS PIPE)
96711-24013

4AGE..AT171

 1
16278 - PIPE, WATER BY-PASS, NO.2
16278-16060

4AGE..AT171

 1
16278-16061

4AGE..AT171

 1
16278C - RING, O(FOR WATER BY-PASS PIPE NO.2)
96711-24035

4AF#,4AGE,5AF#..AT17#

 1
16279 - PIPE, WATER BY-PASS, NO.3
16279-16011

4AGE..AT171

 1
16279-16010

4AGE..AT171

 1
16321 - INLET, WATER
16321-16030

4AGE..AT171..5F

 1
16323 - HOUSING, WATER INLET
16323-16060

4AGE..AT171

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

4AF#,4AGE,5AF#..AT17#

 1
16331 - OUTLET, WATER
16331-16090

4AGE..AT171

 1
16331A - THERMOSTAT
90916-03060

4AGE..AT171

*WAX 82−95

 1
16341 - GASKET, WATER OUTLET
16341-16020

4AGE..AT171

 1
16361 - FAN
16361-15080

4AF#,4AGE,5AF#..AT170,171..MTM

 1
16363 - MOTOR, COOLING FAN
16363-10010

4AF#,4AGE,5AF#..AT170,171..MTM

 1
16381 - BAR, FAN BELT ADJUSTING
16381-16050

4AGE..AT171

 1
16400 - RADIATOR ASSY
16400-16220

4AGE..AT171..5F

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-16120

4AGE..AT171

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90099-33494

4AGE..AT171

 1
85338-16120

4AGE..AT171

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

4AF#,4AGE,5AF#..AT17#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

4AF#,4AGE,5AF#..AT17#

 2
16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK)
90099-33466

4AGE..AT171

*H,L=210

 1
90445-12078

4AGE..AT171

長さ=600

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-16090

4AGE..AT171

 1
16472 - HOSE, BREATHER
85338-74040

4A#,5AF..AT170,171

 1
16533 - SUPPORT, RADIATOR, UPPER
16533-15110

4AGE..AT171

 1
16534 - SUPPORT, RADIATOR, NO.2
16534-15050

4AGE..AT171

 1
16561 - SEAL, RADIATOR TO SUPPORT, NO.1
16561-74010

4AF#,4AGE,5AF#..AT17#

 1
16562 - SEAL, RADIATOR TO SUPPORT, NO.2
16562-74010

4AF#,4AGE,5AF#..AT17#

 2
16562 - SEAL, RADIATOR TO SUPPORT, NO.2
16562-74010

4AF#,4AGE,5AF#..AT17#

 2
16563 - SEAL, RADIATOR TO SUPPORT, NO.3
16563-74010

4AF#,4AGE,5AF#..AT17#

 1
16571 - HOSE, RADIATOR, INLET
16571-16090

4AGE..AT171

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-33002

4AGE..AT171

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-33002

4AGE..AT171

 2
16572 - HOSE, RADIATOR, OUTLET
16572-16070

4AGE..AT171

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-33002

4AGE..AT171

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-33002

4AGE..AT171

 2
16701 - SHROUD SUB-ASSY, FAN
16711-15220

4AF#,4AGE,5AF#..AT170,171..MTM

 1
Common parts
31484-12150
90099-00183
90099-05164
90105-08107
90179-08068
90179-08123
91511-60614
91511-60616
91621-60818
91651-40612
91651-40616
91651-40814
91651-40816
91651-60614
91651-60820
91651-60825
92122-60818
