AT171-CEMSK (1988)

Toyota Carina Ff

Production May 1988 - May 1990
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )AT170,171,ET176..MTM

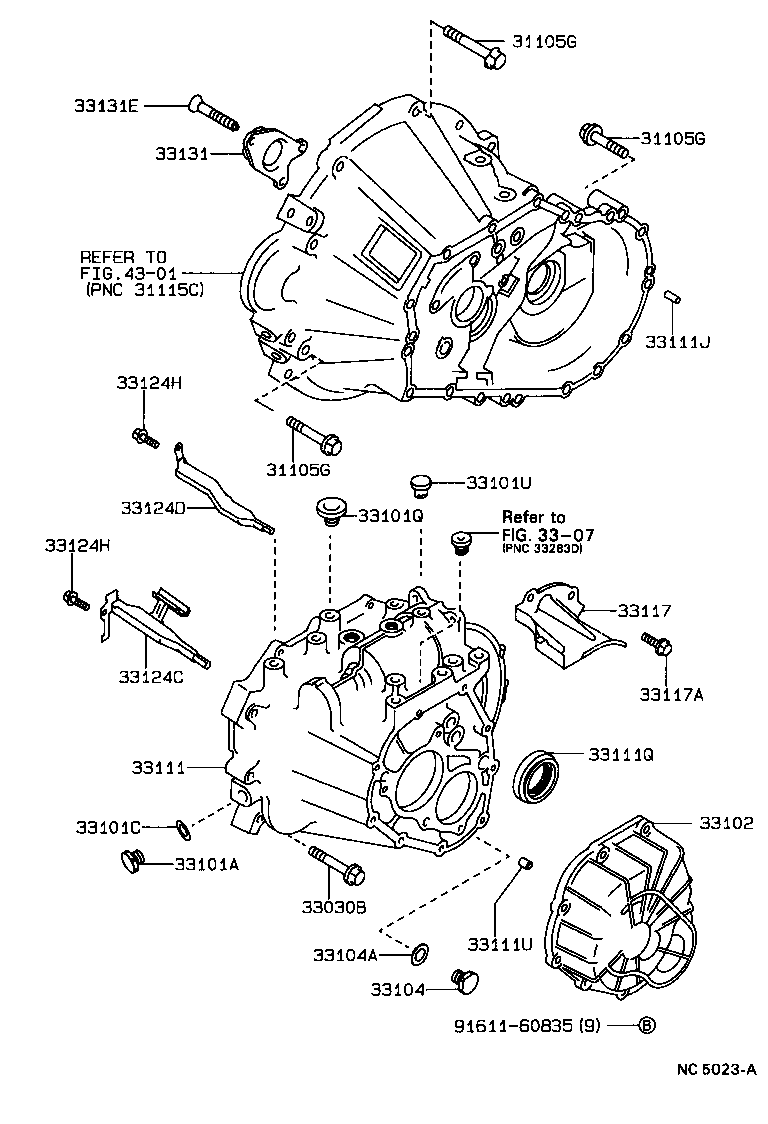

Click highlighted areas on diagram

C40,C50,C51,C52

diagram 31105G 31105G 31105G 33030B 3307 33101A 33101C 33101Q 33101U 33102 33104 33104A 33111 33111J 33111Q 33111U 33117 33117A 33124C 33124D 33124H 33124H 33131 33131E 4301 9161160835
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10077

AT17#,CT17#,ST170..MTM

*10−1.25PX43−26

 1
90119-12168

AT17#..MTM

*12−1.25PX55−30

 2
90119-12042

AT170,171..MTM

*12−1.25PX75−30

 1
91611-61025

AT170,171..MTM..(DX,S,SE,SG,SGEXT,SV)

*10−1.25PX25−25

 3
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10077

AT17#,CT17#,ST170..MTM

*10−1.25PX43−26

 1
90119-12168

AT17#..MTM

*12−1.25PX55−30

 2
90119-12042

AT170,171..MTM

*12−1.25PX75−30

 1
91611-61025

AT170,171..MTM..(DX,S,SE,SG,SGEXT,SV)

*10−1.25PX25−25

 3
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10077

AT17#,CT17#,ST170..MTM

*10−1.25PX43−26

 1
90119-12168

AT17#..MTM

*12−1.25PX55−30

 2
90119-12042

AT170,171..MTM

*12−1.25PX75−30

 1
91611-61025

AT170,171..MTM..(DX,S,SE,SG,SGEXT,SV)

*10−1.25PX25−25

 3
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08064

AT170,171..MTM

*8−1.25PX51−28

 16
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

AT170,171,ET176..MTM

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

AT17#,CT17#,ET176,ST170..MTM

 1
33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-03080

AT170,171,CT17#,ET176,ST170..MTM

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-12020

AT170,171,ET176..5F

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

AT17#,CT17#,ET176,ST170..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

AT17#,CT17#,ET176,ST170..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33111-16040

AT170,171,ET176..MTM

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

AT17#,ET176..MTM

長さ=23,外径=8

 4
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90311-34008

AT170,171,ET176..MTM

 1
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001

AT170,171,ET176..MTM

長さ=11,外径=11

 2
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33117-12011

AT170,171,ET176..MTM..(DX,S,SE,SG,SGEXT,STD,SV)

 1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
90105-08040

AT17#,CT17#,ET176,ST170..MTM

 2
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-12010

AT170,171,ET176..MTM

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-12020

AT170,171,ET176..MTM

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-60820

AT170,171,ET176..MTM

 2
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-60820

AT170,171,ET176..MTM

 2
33131 - RETAINER, BEARING, FRONT(MTM)
33131-12071

AT170,171..MTM

 1
33131E - SCREW(FOR BEARING RETAINER FRONT)
90149-60028

AT170,171..MTM

 3
Common parts
91611-60835
Linked diagrams
3307
4301
