AT170G-CWPDU (1988)

Toyota Carina Ff

Production May 1988 - May 1990
Engine 5AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )

Click highlighted areas on diagram

diagram 1638564011 88301 88302 88320 88330A 88403 88410 9009904349 9009904356 9009904976 9009907114 9009907125 9011908299 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-20120

AT170,175

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-20150

AT170,175

 1
88320 - COMPRESSOR ASSY, COOLER
88320-20630

AT170,175..SED..EFI;AT170..(DX,SE,SV)..CBR

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

AT17#,CT17#,ET176,ST170

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011

AT17#,ET176,ST170

 1
88410 - CLUTCH ASSY, MAGNET
88410-20270

AT175;AT170..DX,SE,SV

 1
Common parts
16385-64011
90099-04349
90099-04356
90099-04976
90099-07114
90099-07125
90119-08299
93319-15008

(8805- )AT17#

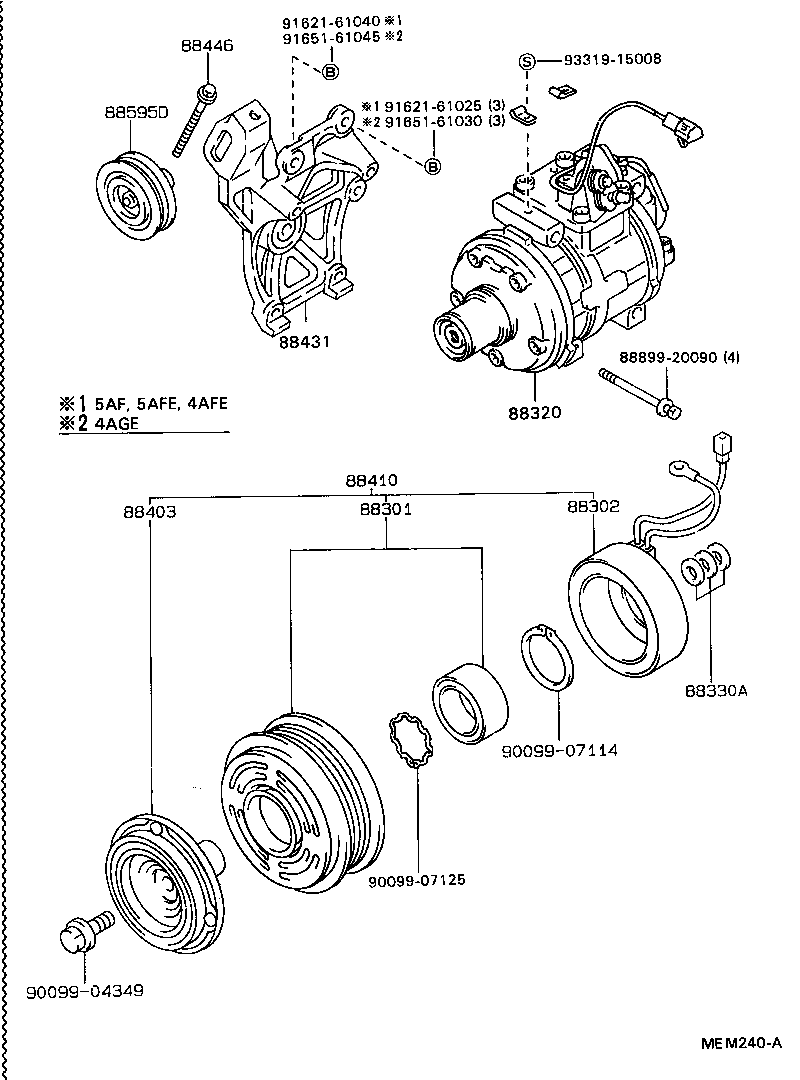

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 88431 88446 88595D 8889920090 9009904349 9009907114 9009907125 9162161025 9162161040 9165161030 9165161045 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-20120

AT170,175

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-20150

AT170,175

 1
88320 - COMPRESSOR ASSY, COOLER
88320-20630

AT170,175..SED..EFI;AT170..(DX,SE,SV)..CBR

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

AT17#,CT17#,ET176,ST170

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011

AT17#,ET176,ST170

 1
88410 - CLUTCH ASSY, MAGNET
88410-20270

AT175;AT170..DX,SE,SV

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-20330

AT170,175..SED..EFI;AT170..(DX,SE,SV)..CBR

 1
88446 - BOLT, IDLE PULLEY
88446-12030

AT170,175,ET176

 1
88595D - PULLEY ASSY, IDLE
88440-17010

AT170,175..SED..EFI;AT170..(DX,SE,SV)..CBR

 1
Common parts
88899-20090
90099-04349
90099-07114
90099-07125
91621-61025
91621-61040
91651-61030
91651-61045
93319-15008
