AT170G-CWMDU (1988)

Toyota Carina Ff

Production May 1988 - May 1990
Engine 5AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )

Click highlighted areas on diagram

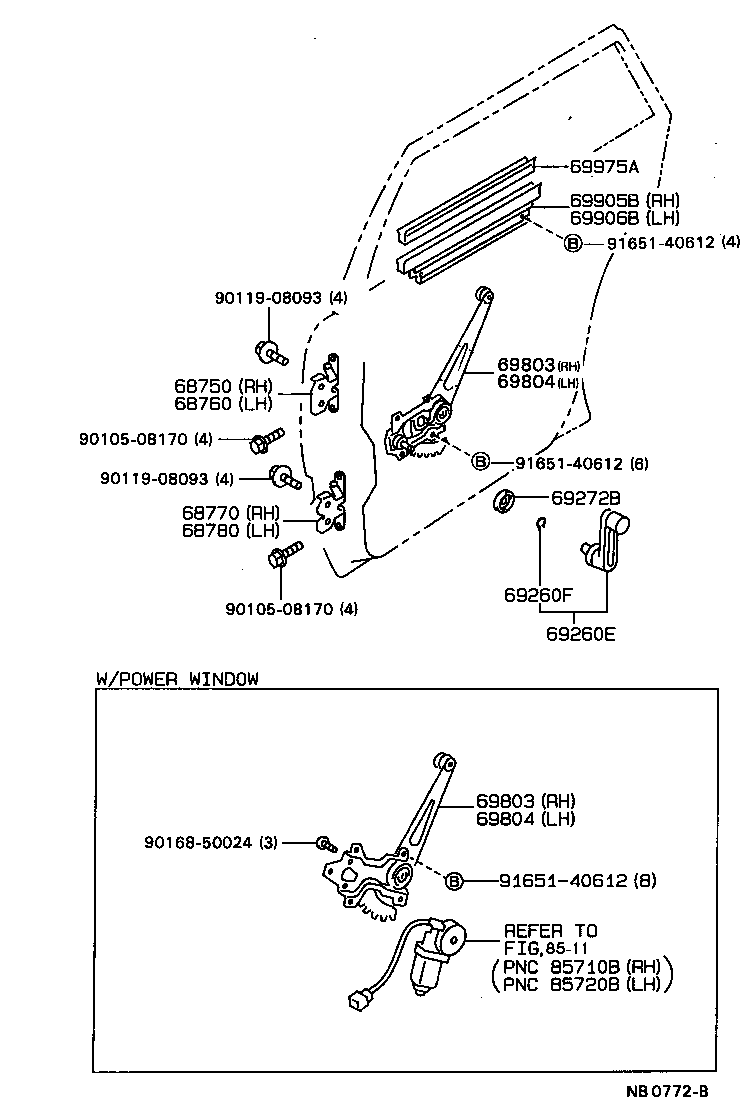

diagram 68750 68760 68770 68780 69260E 69260F 69272B 69803 69803 69804 69804 69905B 69906B 69975A 8511 9010508170 9010508170 9011908093 9011908093 9016850024 9165140612 9165140612 9165140612
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-20060

AT17#,CT17#,ET176,ST170

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-20060

AT17#,CT17#,ET176,ST170

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-20050

AT17#,CT17#,ET176,ST170

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-20060

AT17#,CT17#,ET176,ST170

 1
69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-1402058

AT17#,CT170..S,SG,SV;CT176,ET176,ST170..DX,SG,SGEXT,SX

SABLE,TRIM4#

 2
69260-1402054

ST170..SGEXT;AT17#,CT170..S,SG

DARK BLUE,TRIM8#

 2
69260-1402033

ST170..SGEXT,SX;AT17#,CT17#,ET176..DX,S,SG,STD,SV

GRAY,TRIM1#

 2
69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01002

ST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69285-2201008

AT170,CT176,ET176,ST170..(VAN,WG)..(DX,SG,SV,SX)

NATURAL WHITE,TRIM1#,4#

 2
69285-2201008

ST170..SGEXT;AT17#,CT170..S,SG

NATURAL WHITE,TRIM1#,4#,8#

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-95505

AT170,171,ST170..S,SG,SGEXT

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)

 1
69830-95503

ST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-95505

AT170,171,ST170..S,SG,SGEXT

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)

 1
69830-95503

ST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-95505

AT170,171,ST170..S,SG,SGEXT

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)

 1
69840-95503

ST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-95505

AT170,171,ST170..S,SG,SGEXT

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)

 1
69840-95503

ST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX

 1
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-95502

AT17#,CT17#,ET176,ST170

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-95501

AT17#,CT17#,ET176,ST170

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-22020

AT17#,CT17#,ET176,ST170

 2
Common parts
90105-08170
90119-08093
90168-50024
91651-40612
Linked diagrams
8511
