AT170G-CWMDK (1990)
Toyota Carina Ff

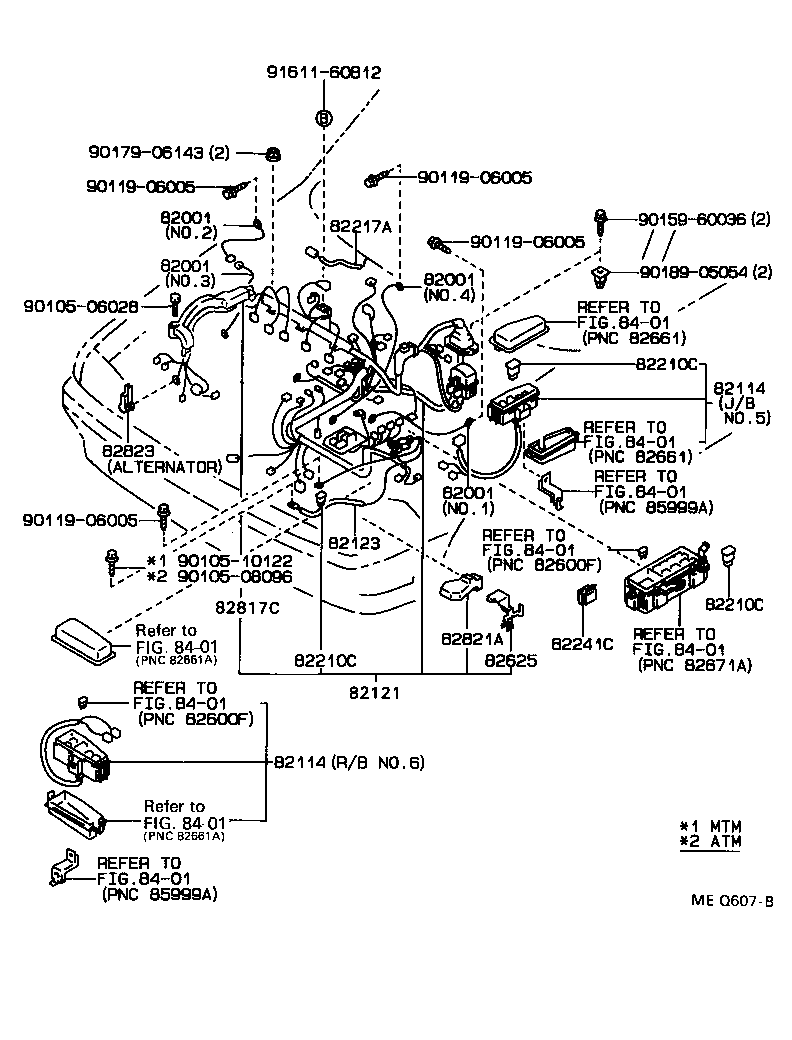

ILLUST NO. 1 OF 6(9005- )AT170
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AT17#,CT17#,ST170 NO.2 |
1 | ||
| 90980-07264 |
AT17#,ET176,ST170 NO.1 |
1 | ||
| 90980-07299 |
AT17#..DX,S,SE,SG,SGEXT,SV NO.3 |
1 | ||
| 90980-07302 |
AT170,171..DX,S,SE,SG,SGEXT,SV NO.4 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AT17#,CT17#,ST170 NO.2 |
1 | ||
| 90980-07264 |
AT17#,ET176,ST170 NO.1 |
1 | ||
| 90980-07299 |
AT17#..DX,S,SE,SG,SGEXT,SV NO.3 |
1 | ||
| 90980-07302 |
AT170,171..DX,S,SE,SG,SGEXT,SV NO.4 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AT17#,CT17#,ST170 NO.2 |
1 | ||
| 90980-07264 |
AT17#,ET176,ST170 NO.1 |
1 | ||
| 90980-07299 |
AT17#..DX,S,SE,SG,SGEXT,SV NO.3 |
1 | ||
| 90980-07302 |
AT170,171..DX,S,SE,SG,SGEXT,SV NO.4 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AT17#,CT17#,ST170 NO.2 |
1 | ||
| 90980-07264 |
AT17#,ET176,ST170 NO.1 |
1 | ||
| 90980-07299 |
AT17#..DX,S,SE,SG,SGEXT,SV NO.3 |
1 | ||
| 90980-07302 |
AT170,171..DX,S,SE,SG,SGEXT,SV NO.4 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-20050 |
AT170,171..GLIM,S,SE,SGEXT R/B NO.6 |
1 | ||
| 82114-20030 |
AT170,ET176 J/B NO.5 |
1 | ||
| 82114-20140 |
AT170,171 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-20050 |
AT170,171..GLIM,S,SE,SGEXT R/B NO.6 |
1 | ||
| 82114-20030 |
AT170,ET176 J/B NO.5 |
1 | ||
| 82114-20140 |
AT170,171 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-2B750 |
AT170..MTM |
1 | ||
| 82121-2D820 |
AT170..MTM |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-20130 |
AT17#,ET176,ST170 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
AT17#,CT17#,ET176,ST170 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08203 |
AT17#,ET176,ST170 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08253 |
AT17#,ET176,ST170 80A,ｵｽ端子,黒,YAZAKI |
1 | ||
| 90982-08188 |
AT17#,CT17#,ET176,ST170 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
AT17#,CT17#,ET176,ST170 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08203 |
AT17#,ET176,ST170 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08253 |
AT17#,ET176,ST170 80A,ｵｽ端子,黒,YAZAKI |
1 | ||
| 90982-08188 |
AT17#,CT17#,ET176,ST170 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
AT17#,CT17#,ET176,ST170 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08203 |
AT17#,ET176,ST170 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08253 |
AT17#,ET176,ST170 80A,ｵｽ端子,黒,YAZAKI |
1 | ||
| 90982-08188 |
AT17#,CT17#,ET176,ST170 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 82217A - WIRE, FRONT WINDOW DEFOGGER | ||||
| 82217-20010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-32020 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-12700 |
AT17#..DX,S,SE,SG,SGEXT,SV |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-24010 |
AT17#,CT17#,ST170..CI,DSL,EFI,EFIS |
1 | ||
| 82821-32030 |
AT170,ET176..CBR;AT170..(DX,SG,SV)..EFI;AT170..MTM..(SE,SGEXT)..EFI |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20030 |
AT17#,ET176..DX,S,SE,SG,SGEXT,STD,SV STARTER |
1 | ||
| 82823-22050 |
AT17#,ET176..DX,S,SE,SG,SGEXT,STD,SV ALTERNATOR |
1 | ||
| 82823-22050 |
AT17# |
1 | ||
| Common parts | ||||
| 90105-06028 | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06005 | ||||
| 90159-60036 | ||||
| 90179-06143 | ||||
| 90189-05054 | ||||
| 91611-60812 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 6 OF 6(9005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-20060 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 82982-20030 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-14010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 82987-20060 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| Common parts | ||||
| 82982-20060 | ||||
| 82987-20060 | ||||
