AT170G-CWMDK (1990)
Toyota Carina Ff

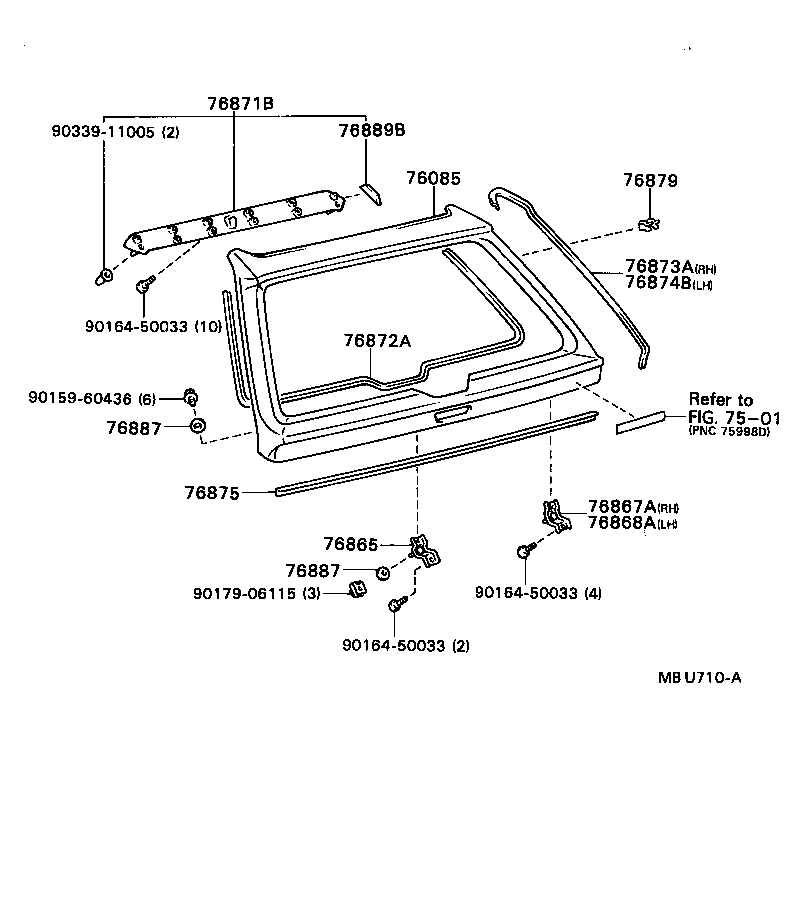

ILLUST NO. 2 OF 2(9005- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76871-21900 |
AT170,CT170..SV ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ) |
1 | ||
| 76871-21901 |
AT170,CT170..SV |
1 | ||
| 76865 - RETAINER, REAR SPOILER, NO.1 | ||||
| 76865-21010 |
AT170,CT170,ST170..WG |
1 | ||
| 76867A - RETAINER, REAR SPOILER, NO.3 | ||||
| 76867-21010 |
AT170,CT170,ST170..WG |
1 | ||
| 76868A - RETAINER, REAR SPOILER, NO.4 | ||||
| 76868-21010 |
AT170,CT170,ST170..WG |
1 | ||
| 76871B - COVER, REAR SPOILER | ||||
| 76871-21030 |
AT170,CT170,ST170..WG |
1 | ||
| 76872A - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-21010 |
AT170,CT170,ST170..WG |
1 | ||
| 76873A - PROTECTOR, REAR SPOILER, RH | ||||
| 76873-21010 |
AT170,CT170,ST170..WG |
1 | ||
| 76874B - PROTECTOR, REAR SPOILER, LH | ||||
| 76874-21010 |
AT170,CT170,ST170..WG |
1 | ||
| 76875 - PROTECTOR, REAR SPOILER, NO.4 | ||||
| 76875-21010 |
AT170,CT170,ST170..WG |
1 | ||
| 76879 - CLIP, REAR SPOILER, NO.1 | ||||
| 76879-20030 |
AT170,CT170..SV |
7 | ||
| 76887 - SEAL, REAR SPOILER | ||||
| 76887-21010 |
AT170,CT170,ST170..WG LOWER |
6 | ||
| 76887-10010 |
AT170,CT170,ST170..WG SIDE |
3 | ||
| 76887 - SEAL, REAR SPOILER | ||||
| 76887-21010 |
AT170,CT170,ST170..WG LOWER |
6 | ||
| 76887-10010 |
AT170,CT170,ST170..WG SIDE |
3 | ||
| 76889B - SEAL, REAR SPOILER, NO.1 | ||||
| 76889-21010 |
AT170,CT170,ST170..WG |
2 | ||
| Common parts | ||||
| 90159-60436 | ||||
| 90164-50033 | ||||
| 90179-06115 | ||||
| 90339-11005 | ||||
| Linked diagrams | ||||
| 7501 | ||||
ILLUST NO. 1 OF 2(9005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76081A - SPOILER SUB-ASSY, FRONT RH | ||||
| 76081-20040 |
AT170,ST170 |
1 | ||
| 76083A - SPOILER SUB-ASSY, FRONT LH | ||||
| 76083-20020 |
AT170,ST170 |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76603-2912504 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,SE,SG,SGEXT,SV,SX DARK BLUE MAICA M,8E9 |
1 | ||
| 76603-2912506 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,SE,SG,SGEXT,SV,SX BROWN M,4H2 |
1 | ||
| 76603-2912503 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,SE,SG,SGEXT,SV,SX GRINISH SILVER M,174 |
1 | ||
| 76603-2912512 |
AT17#,CT170,ST170..GLIM,SE,SG,SGEXT,SV,SX RED MAICA,3H4 |
1 | ||
| 76603-29135 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 76603-2912508 |
AT17#,CT170,ST170..DX,GLIM,SE,SG,SGEXT,SV,SX SUPER WHITE 2,040 |
1 | ||
| 76603-2912508 |
AT175..SE,SGEXT;AT170,171,CT170,ST170..DSL,EFI SUPER WHITE 2,040 |
1 | ||
| 76603-2912513 |
AT175..SE,SGEXT;AT170,171,CT170,ST170..GLIM,SE,SG,SGEXT,SV,SX DARK GRAY MAICA,175 |
1 | ||
| 76603-2912522 |
AT175..SE,SGEXT;AT170,171,CT170,ST170..GLIM,SE,SG,SGEXT,SV,SX RED MICA,3J9 |
1 | ||
| 76603-2912504 |
AT175..SE,SGEXT;CT176,ET176..DX,SG;AT170,171,CT170,ST170..GLIM,SE,SG,SGEXT,SV,SX DARK BLUE MAICA M,8E9 |
1 | ||
| 76603-29135 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 76603-2912504 |
CT176,ET176..DX,SG;AT175,CT170..SE,SGEXT,SV;AT170,171,ST170..GLIM,SE,SG,SV,SX DARK BLUE MAICA M,8E9 |
1 | ||
| 76603-2912522 |
AT175,CT170..SE,SGEXT,SV;AT170,171,ST170..GLIM,SE,SG,SV,SX RED MICA,3J9 |
1 | ||
| 76603-2912508 |
AT175,CT170..SE,SGEXT,SV;AT170,171,ST170..DX,GLIM,SE,SG,SV,SX SUPER WHITE 2,040 |
1 | ||
| 76603-2912527 |
AT175..SE,SGEXT;CT176,ET176..DX,SG;AT170,171,CT170,ST170..GLIM,SE,SG,SGEXT,SV,SX PASTEL AQUA M,745 |
1 | ||
| 76603-2912527 |
CT176,ET176..DX,SG;AT175,CT170..SE,SGEXT,SV;AT170,171,ST170..GLIM,SE,SG,SV,SX PASTEL AQUA M,745 |
1 | ||
| 76603-2912513 |
AT175,CT170..SE,SGEXT,SV;AT170,171,ST170..GLIM,SE,SG,SV,SX DARK GRAY MAICA,175 |
1 | ||
| 76603-29135 |
AT175;CT170..SE,SV;AT170,171,CT176,ET176,ST170..DX,GLIM,S,SE,SG,STD,SV,SX |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76604-2912503 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,SE,SG,SGEXT,SV,SX GRINISH SILVER M,174 |
1 | ||
| 76604-2912508 |
AT17#,CT170,ST170..DX,GLIM,SE,SG,SGEXT,SV,SX SUPER WHITE 2,040 |
1 | ||
| 76604-2912504 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,SE,SG,SGEXT,SV,SX DARK BLUE MAICA M,8E9 |
1 | ||
| 76604-29135 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 76604-2912512 |
AT17#,CT170,ST170..GLIM,SE,SG,SGEXT,SV,SX RED MAICA,3H4 |
1 | ||
| 76604-2912506 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,SE,SG,SGEXT,SV,SX BROWN M,4H2 |
1 | ||
| 76604-2912504 |
AT175..SE,SGEXT;CT176,ET176..DX,SG;AT170,171,CT170,ST170..GLIM,SE,SG,SGEXT,SV,SX DARK BLUE MAICA M,8E9 |
1 | ||
| 76604-2912508 |
AT175..SE,SGEXT;AT170,171,CT170,ST170..DSL,EFI SUPER WHITE 2,040 |
1 | ||
| 76604-2912513 |
AT175..SE,SGEXT;AT170,171,CT170,ST170..GLIM,SE,SG,SGEXT,SV,SX DARK GRAY MAICA,175 |
1 | ||
| 76604-2912527 |
AT175..SE,SGEXT;CT176,ET176..DX,SG;AT170,171,CT170,ST170..GLIM,SE,SG,SGEXT,SV,SX PASTEL AQUA M,745 |
1 | ||
| 76604-29135 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 76604-2912508 |
AT175,CT170..SE,SGEXT,SV;AT170,171,ST170..DX,GLIM,SE,SG,SV,SX SUPER WHITE 2,040 |
1 | ||
| 76604-2912504 |
CT176,ET176..DX,SG;AT175,CT170..SE,SGEXT,SV;AT170,171,ST170..GLIM,SE,SG,SV,SX DARK BLUE MAICA M,8E9 |
1 | ||
| 76604-2912522 |
AT175,CT170..SE,SGEXT,SV;AT170,171,ST170..GLIM,SE,SG,SV,SX RED MICA,3J9 |
1 | ||
| 76604-2912513 |
AT175,CT170..SE,SGEXT,SV;AT170,171,ST170..GLIM,SE,SG,SV,SX DARK GRAY MAICA,175 |
1 | ||
| 76604-29135 |
AT175;CT170..SE,SV;AT170,171,CT176,ET176,ST170..DX,GLIM,S,SE,SG,STD,SV,SX |
1 | ||
| 76604-2912527 |
CT176,ET176..DX,SG;AT175,CT170..SE,SGEXT,SV;AT170,171,ST170..GLIM,SE,SG,SV,SX PASTEL AQUA M,745 |
1 | ||
| 76604-2912522 |
AT175..SE,SGEXT;AT170,171,CT170,ST170..GLIM,SE,SG,SGEXT,SV,SX RED MICA,3J9 |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-2915506 |
AT170,CT176,ET176,ST170..(VAN,WG)..(DX,SG,SV,SX) BROWN M,4H2 |
1 | ||
| 76607-2915502 |
AT170,ST170..WG RED MAICA,3H4 |
1 | ||
| 76607-2915503 |
AT170,CT176,ET176,ST170..(VAN,WG)..(DX,SG,SV,SX) GRINISH SILVER M,174 |
1 | ||
| 76607-29175 |
AT175;CT170..SE;AT170,171,ST170..DX,GLIM,S,SE,SG |
1 | ||
| 76607-2915504 |
AT170,CT17#,ET176,ST170..(VAN,WG)..(DX,SG,SV,SX) DARK BLUE MAICA M,8E9 |
1 | ||
| 76607-2915507 |
AT170,CT17#,ET176,ST170..(VAN,WG)..(DX,SG,SV,SX) PASTEL AQUA M,745 |
1 | ||
| 76607-29165 |
AT170,CT17#,ET176,ST170..VAN,WG |
1 | ||
| 76607-2915508 |
AT170,CT170,ST170..WG SUPER WHITE 2,040 |
1 | ||
| 76607-2915512 |
AT170,CT170,ST170..WG RED MICA,3J9 |
1 | ||
| 76607-2915513 |
AT170,CT170,ST170..WG DARK GRAY MICA,175 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-2915506 |
AT170,CT176,ET176,ST170..(VAN,WG)..(DX,SG,SV,SX) BROWN M,4H2 |
1 | ||
| 76608-2915503 |
AT170,CT176,ET176,ST170..(VAN,WG)..(DX,SG,SV,SX) GRINISH SILVER M,174 |
1 | ||
| 76608-2915502 |
AT170,ST170..WG RED MAICA,3H4 |
1 | ||
| 76608-29175 |
AT175;CT170..SE;AT170,171,ST170..DX,GLIM,S,SE,SG |
1 | ||
| 76608-2915508 |
AT170,CT170,ST170..WG SUPER WHITE 2,040 |
1 | ||
| 76608-29165 |
AT170,CT17#,ET176,ST170..VAN,WG |
1 | ||
| 76608-2915513 |
AT170,CT170,ST170..WG DARK GRAY MICA,175 |
1 | ||
| 76608-2915512 |
AT170,CT170,ST170..WG RED MICA,3J9 |
1 | ||
| 76608-2915507 |
AT170,CT17#,ET176,ST170..(VAN,WG)..(DX,SG,SV,SX) PASTEL AQUA M,745 |
1 | ||
| 76608-2915504 |
AT170,CT17#,ET176,ST170..(VAN,WG)..(DX,SG,SV,SX) DARK BLUE MAICA M,8E9 |
1 | ||
| Common parts | ||||
| 90159-60313 | ||||
| 90159-60373 | ||||
| 90189-06006 | ||||
| 90189-06029 | ||||
| 90467-00002 | ||||
| 90467-0703001 | ||||
