AT170G-CWMDK (1990)
Toyota Carina Ff

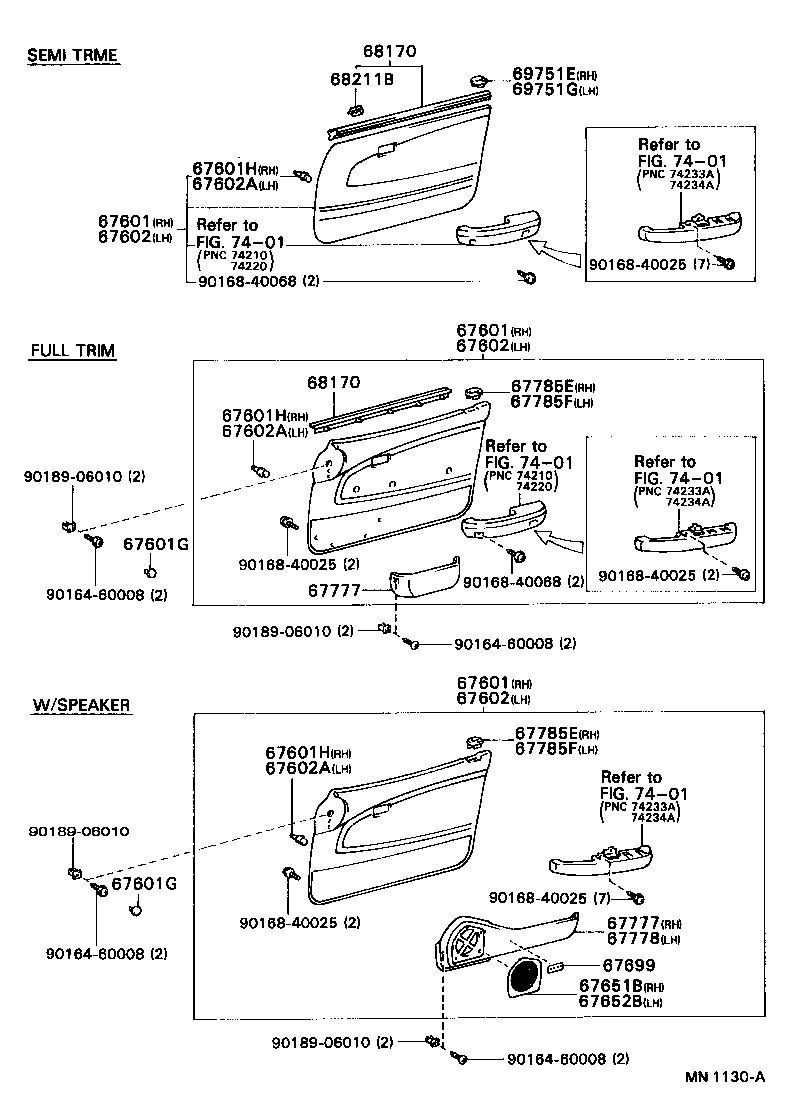

ILLUST NO. 2 OF 2(9005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2D17003 |
AT170..DX,SV GRAY,TRIM1# |
1 | ||
| 67610-2D17006 |
AT170..SV SABLE,TRIM4# |
1 | ||
| 67650-2D03003 |
AT170,CT170..DX,SV GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2D17003 |
AT170..DX,SV GRAY,TRIM1# |
1 | ||
| 67610-2D17006 |
AT170..SV SABLE,TRIM4# |
1 | ||
| 67650-2D03003 |
AT170,CT170..DX,SV GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2D17003 |
AT170..DX,SV GRAY,TRIM1# |
1 | ||
| 67610-2D17006 |
AT170..SV SABLE,TRIM4# |
1 | ||
| 67650-2D03003 |
AT170,CT170..DX,SV GRAY,TRIM1# |
1 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-0150314 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
2 | ||
| 90950-0150326 |
AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
2 | ||
| 90950-0150303 |
CT176,ET176..SG;AT17#,CT170,ST170 SHADOW GRAY,TRIM1# |
2 | ||
| 90950-0150324 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
2 | ||
| 90950-0150326 |
AT17#,CT170,ST170..S,SE,SG,SGEXT,SX SABLE,TRIM4# |
2 | ||
| 90950-0150303 |
CT176,ET176..SG;AT17#,CT170,ST170 SHADOW GRAY,TRIM1# |
2 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-0150314 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
2 | ||
| 90950-0150326 |
AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
2 | ||
| 90950-0150303 |
CT176,ET176..SG;AT17#,CT170,ST170 SHADOW GRAY,TRIM1# |
2 | ||
| 90950-0150324 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
2 | ||
| 90950-0150326 |
AT17#,CT170,ST170..S,SE,SG,SGEXT,SX SABLE,TRIM4# |
2 | ||
| 90950-0150303 |
CT176,ET176..SG;AT17#,CT170,ST170 SHADOW GRAY,TRIM1# |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
CT176,ET176..SG;AT17#,CT170,ST170 |
9 | ||
| 67771-12040 |
CT176,ET176..SG;AT17#,CT170,ST170 |
9 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
CT176,ET176..SG;AT17#,CT170,ST170 |
9 | ||
| 67771-12040 |
CT176,ET176..SG;AT17#,CT170,ST170 |
9 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
CT176,ET176..SG;AT17#,CT170,ST170 |
9 | ||
| 67771-12040 |
CT176,ET176..SG;AT17#,CT170,ST170 |
9 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2G38003 |
AT170..DX,SV GRAY,TRIM1# |
1 | ||
| 67620-2G38006 |
AT170..SV SABLE,TRIM4# |
1 | ||
| 67620-2H25003 |
AT170,CT170..DX,SV GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2G38003 |
AT170..DX,SV GRAY,TRIM1# |
1 | ||
| 67620-2G38006 |
AT170..SV SABLE,TRIM4# |
1 | ||
| 67620-2H25003 |
AT170,CT170..DX,SV GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2G38003 |
AT170..DX,SV GRAY,TRIM1# |
1 | ||
| 67620-2G38006 |
AT170..SV SABLE,TRIM4# |
1 | ||
| 67620-2H25003 |
AT170,CT170..DX,SV GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
CT176,ET176..SG;AT17#,CT170,ST170 |
9 | ||
| 67771-12040 |
CT176,ET176..SG;AT17#,CT170,ST170 |
9 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
CT176,ET176..SG;AT17#,CT170,ST170 |
9 | ||
| 67771-12040 |
CT176,ET176..SG;AT17#,CT170,ST170 |
9 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
CT176,ET176..SG;AT17#,CT170,ST170 |
9 | ||
| 67771-12040 |
CT176,ET176..SG;AT17#,CT170,ST170 |
9 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2012006 |
ST170..SX;AT17#,CT17#,ET176..S,SG,SGEXT SABLE,TRIM4# |
1 | ||
| 67777-2012003 |
ST170..SX;AT17#,CT17#,ET176..S,SG,SGEXT GRAY,TRIM1# |
1 | ||
| 67777-2012014 |
AT17#,CT170,ST170..S,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 67777-2012006 |
AT17#,CT170,ST170..S,SG,SGEXT,SX SABLE,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2012006 |
ST170..SX;AT17#,CT17#,ET176..S,SG,SGEXT SABLE,TRIM4# |
1 | ||
| 67777-2012003 |
ST170..SX;AT17#,CT17#,ET176..S,SG,SGEXT GRAY,TRIM1# |
1 | ||
| 67777-2012014 |
AT17#,CT170,ST170..S,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 67777-2012006 |
AT17#,CT170,ST170..S,SG,SGEXT,SX SABLE,TRIM4# |
1 | ||
| 67785E - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH | ||||
| 69751-2006044 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 69751-2006003 |
CT176,ET176..SG;AT17#,CT170,ST170 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006036 |
AT17#,CT170,ST170..S,SE,SG,SGEXT,SX SABLE,TRIM4# |
1 | ||
| 69751-2006053 |
CT176,ET176..SG;AT17#,CT170,ST170 GRAY,TRIM1# |
1 | ||
| 69751-2006036 |
AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 69751-2006009 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 67785E - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH | ||||
| 69751-2006044 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 69751-2006003 |
CT176,ET176..SG;AT17#,CT170,ST170 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006036 |
AT17#,CT170,ST170..S,SE,SG,SGEXT,SX SABLE,TRIM4# |
1 | ||
| 69751-2006053 |
CT176,ET176..SG;AT17#,CT170,ST170 GRAY,TRIM1# |
1 | ||
| 69751-2006036 |
AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 69751-2006009 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 67785F - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH | ||||
| 69751-2006036 |
AT17#,CT170,ST170..S,SE,SG,SGEXT,SX SABLE,TRIM4# |
1 | ||
| 69751-2006036 |
AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 69751-2006003 |
CT176,ET176..SG;AT17#,CT170,ST170 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006044 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 69751-2006009 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 69751-2006053 |
CT176,ET176..SG;AT17#,CT170,ST170 GRAY,TRIM1# |
1 | ||
| 67785F - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH | ||||
| 69751-2006036 |
AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 69751-2006003 |
CT176,ET176..SG;AT17#,CT170,ST170 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006044 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 69751-2006036 |
AT17#,CT170,ST170..S,SE,SG,SGEXT,SX SABLE,TRIM4# |
1 | ||
| 69751-2006009 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 69751-2006053 |
CT176,ET176..SG;AT17#,CT170,ST170 GRAY,TRIM1# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-20270 |
CT176,ET176..SG;AT17#,CT170,ST170 左側 |
1 | ||
| 68170-20360 |
CT176,ET176..SG;AT17#,CT170,ST170 右側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-20270 |
CT176,ET176..SG;AT17#,CT170,ST170 左側 |
1 | ||
| 68170-20360 |
CT176,ET176..SG;AT17#,CT170,ST170 右側 |
1 | ||
| Common parts | ||||
| 90164-60008 | ||||
| 90168-40025 | ||||
| 90168-40068 | ||||
| 90189-06010 | ||||
| Linked diagrams | ||||
| 7401 | ||||
