AT170G-CWMDK (1990)

Toyota Carina Ff

Production May 1990 - Nov 1992
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9006- )WG

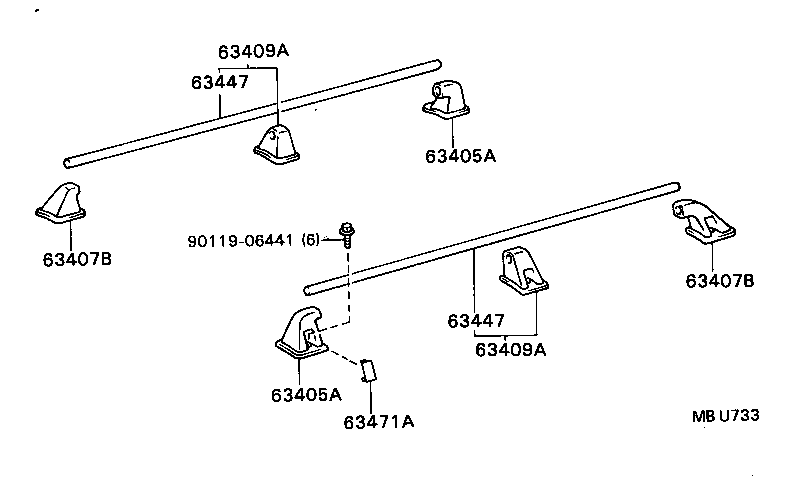

Click highlighted areas on diagram

diagram 63405A 63405A 63407B 63407B 63409A 63409A 63447 63447 63471A 9011906441
Part # Description Qty Price
63405A - SUPPORT SUB-ASSY, ROOF RACK, REAR
63405-21010

AT170,CT170,ST170..WG

 2
63405A - SUPPORT SUB-ASSY, ROOF RACK, REAR
63405-21010

AT170,CT170,ST170..WG

 2
63407B - SUPPORT SUB-ASSY, ROOF RACK, FRONT
63407-21010

AT170,CT170,ST170..WG

 2
63407B - SUPPORT SUB-ASSY, ROOF RACK, FRONT
63407-21010

AT170,CT170,ST170..WG

 2
63409A - SUPPORT SUB-ASSY, ROOF RACK, CENTER
63409-21010

AT170,CT170,ST170..WG

 2
63409A - SUPPORT SUB-ASSY, ROOF RACK, CENTER
63409-21010

AT170,CT170,ST170..WG

 2
63447 - BAR, ROOF CARRIER, FRONT
63447-21010

AT170,CT170,ST170..WG

 2
63447 - BAR, ROOF CARRIER, FRONT
63447-21010

AT170,CT170,ST170..WG

 2
63471A - LEG, ROOF RACK, OUTER
63471-21010

AT170,CT170,ST170..WG

 6
Common parts
90119-06441
