AT170G-CWMDK (1990)
Toyota Carina Ff
(9005- )AT17#,CT170,ST170
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-20210 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 52011-20250 |
AT17#,CT170,ST170 |
1 | ||
| 52011-20260 |
AT170..SED;AT170..5F..SV;AT171,CT170,ST170 ｱﾘ(*80) |
1 | ||
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-20210 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 52011-20250 |
AT17#,CT170,ST170 |
1 | ||
| 52011-20260 |
AT170..SED;AT170..5F..SV;AT171,CT170,ST170 ｱﾘ(*80) |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-20160 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 52012-20210 |
AT17#,CT170,ST170 |
1 | ||
| 52012-20220 |
AT170..SED;AT170..5F..SV;AT171,CT170,ST170 ｱﾘ(*80) |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-20160 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 52012-20210 |
AT17#,CT170,ST170 |
1 | ||
| 52012-20220 |
AT170..SED;AT170..5F..SV;AT171,CT170,ST170 ｱﾘ(*80) |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-20250 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52115-20250 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-2051002 |
CT170;AT17#,ST170..GLIM,S,SE,SGEXT SUPER RED 2,3E5 |
1 | ||
| 52119-2052006 |
CT170;AT17#,ST170..GLIM,S,SE,SGEXT,SV,SX BROWN M,4H2 |
1 | ||
| 52119-2051004 |
CT170;AT17#,ST170..GLIM,S,SE,SGEXT,SV,SX DARK BLUE MICA M,8E9 |
1 | ||
| 52119-2051003 |
AT170..SV ｶﾗ- ﾊﾞﾝﾊﾟ & ｱﾘ(ﾌﾞﾗﾂｸ ﾓ-ﾙ),GRINISH SILVER M,174 |
1 | ||
| 52119-2051008 |
AT170..SV SUPER WHITE 2,040 |
1 | ||
| 52119-2051012 |
AT170..SE,SV RED MICA,3H4 |
1 | ||
| 52119-2052118 |
AT17#,CT170,ST170..S,SE,SX ｶﾗ- ﾊﾞﾝﾊﾟ & ｱﾘ(ｶﾗ- ﾓ-ﾙ);Sﾘﾐﾃﾂﾄﾞ ｶﾗ-ﾊﾞﾝﾊﾟ & ｱﾘ(ｶﾗ-ﾓ-ﾙ),SUPER WHITE 2,SUPER WHITE 2,TRIM4#&040 |
1 | ||
| 52119-2052107 |
AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT DARK TURCU0ISE MICA,742 |
1 | ||
| 52119-2052113 |
AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT REDISH SILVER M,178 |
1 | ||
| 52119-2051104 |
AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX DARK BLUE MICA M,8E9 |
1 | ||
| 52119-2051117 |
AT170,CT170..SV PASTEL AQUA M,745 |
1 | ||
| 52119-2051108 |
AT170..SG,SGEXT,SV SUPER WHITE 2,040 |
1 | ||
| 52119-2051102 |
AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX RED MICA,3J9 |
1 | ||
| 52119-20710 |
AT170,CT170..DX,SV |
1 | ||
| 52119-2052103 |
AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX DARK GRAY MICA,175 |
1 | ||
| 52119-2052118 |
AT17#,CT170,ST170..S,SE,SX Sﾘﾐﾃﾂﾄﾞ,ｶﾗ-ﾊﾞﾝﾊﾟ & ｱﾘ(ｶﾗ-ﾓ-ﾙ),SUPER WHITE 2,SUPER WHITE 2,TRIM4#&040 |
1 | ||
| 52127A - BRACKET, FRONT TURN SIGNAL LAMP MOUNTING, RH | ||||
| 52127-20070 |
AT17#,CT170,ST170 |
1 | ||
| 52128A - BRACKET, FRONT TURN SIGNAL LAMP MOUNTING, LH | ||||
| 52127-20070 |
AT17#,CT170,ST170 |
1 | ||
| 52145A - STAY, FRONT BUMPER, NO.2 RH | ||||
| 52144-20200 |
AT17#,CT170,ST170 |
1 | ||
| 52146A - STAY, FRONT BUMPER, NO.2 LH | ||||
| 52144-20200 |
AT17#,CT170,ST170 |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-20130 |
AT17#,CT170,ST170 |
1 | ||
| Common parts | ||||
| 90119-06352 | ||||
| 90119-12007 | ||||
| 90159-50050 | ||||
| 90159-50110 | ||||
| 90179-06086 | ||||
| 90179-06156 | ||||
| 90189-05104 | ||||
| 90189-06018 | ||||

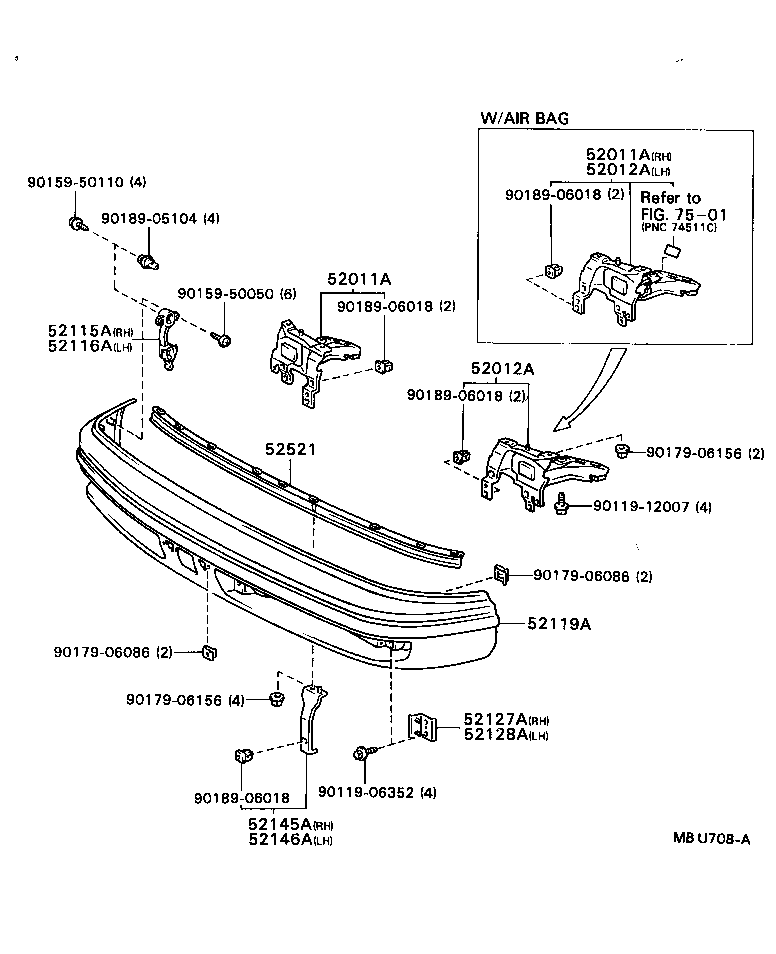

| Linked diagrams | ||||
| 7501 | ||||
