AT170-CEPNU (1988)
Toyota Carina Ff

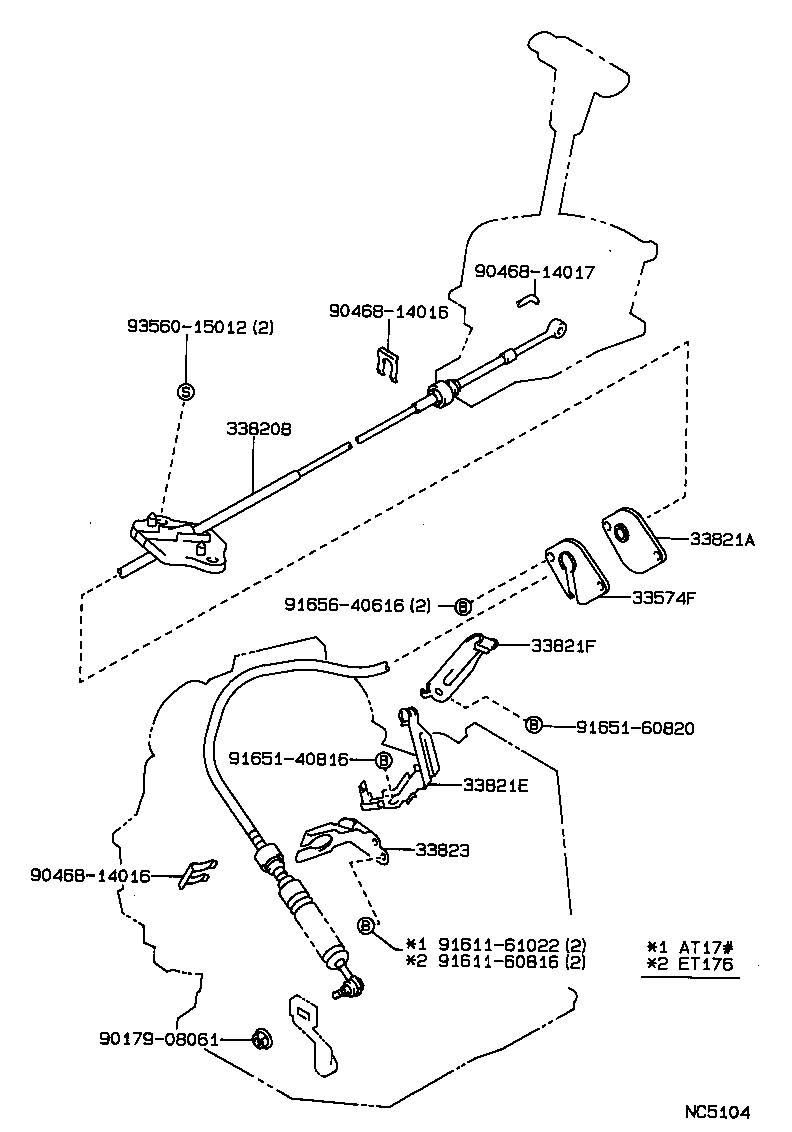

ILLUST NO. 2 OF 2(8805- )AT170,171,ET176..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT) | ||||
| 33574-20270 |
AT170,171,ET176..ATM |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-20550 |
AT170,171..4FC..(DX,S,SE,SG,SGEXT,SV) |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01457 |
AT170,171,ET176..ATM |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01397 |
AT17#..4FC..(DX,S,SE,SG,SV) |
1 | ||
| 90949-01508 |
AT170,171..4FC..(DX,S,SE,SG,SV) |
1 | ||
| 33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01443 |
AT170,171,ET176..ATM..(DX,S,SE,SG,SV) |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12060 |
AT170,171..4FC..(DX,GLIM,SE,SG,SGEXT,SV) |
1 | ||
| Common parts | ||||
| 90179-08061 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 91611-60816 | ||||
| 91611-61022 | ||||
| 91651-40816 | ||||
| 91651-60820 | ||||
| 91656-40616 | ||||
| 93560-15012 | ||||

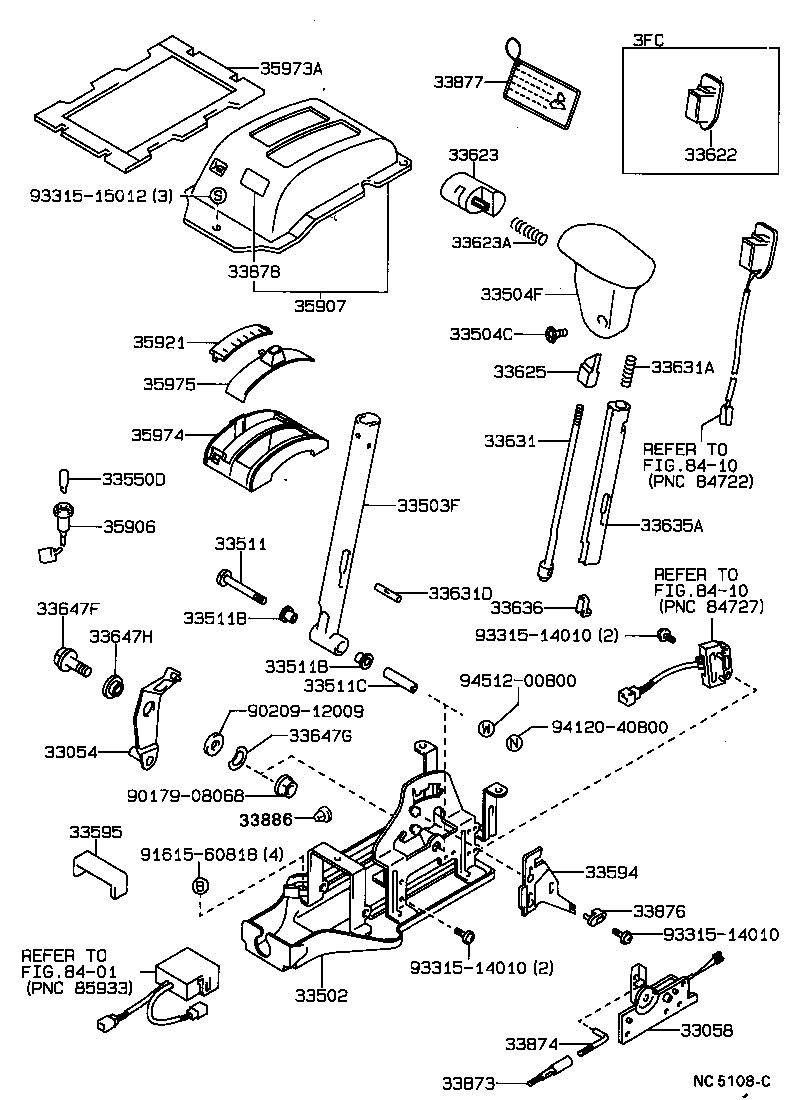

ILLUST NO. 1 OF 2(8805- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-20040 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-20010 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-20260 |
AT170,171,CT170,ET176,ST170..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-20450 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
AT17#,CT17#,ET176,ST170..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-2008003 |
AT17#,CT170,ET176,ST170..ATM..(DX,S,SG,SGEXT,SV,SX) GRAY,TRIM1# |
1 | ||
| 33542-2008004 |
AT170,171,CT170,ST170..4FC..(S,SG,SGEXT) BLUE,TRIM8# |
1 | ||
| 33504-2009004 |
AT170..4F..SG BLUE,TRIM8# |
1 | ||
| 33542-2008006 |
AT170..4FC..(SG,SV);AT171,CT170,ET176,ST170..ATM..(DX,S,SG,SGEXT,SX) SABLE,TRIM4# |
1 | ||
| 33504-2009006 |
AT170,ET176..4F..SG SABLE,TRIM4# |
1 | ||
| 33542-2008006 |
AT170..4FC..(SE,SG,SV);AT171,CT17#,ET176,ST170..ATM..(DX,S,SE,SG,SGEXT,SX) SABLE,TRIM4# |
1 | ||
| 33542-2008004 |
AT170,171,CT170,ST170..4FC..(S,SE,SG,SGEXT) BLUE,TRIM8# |
1 | ||
| 33504-2009003 |
AT170,ET176..4F..(SG,SGEXT) GRAY,TRIM1# |
1 | ||
| 33542-2008003 |
AT17#,CT17#,ET176,ST170..ATM..(DX,S,SE,SG,SGEXT,SV,SX) GRAY,TRIM1# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-32020 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-11012 |
AT17#,CT17#,ET176,ST170..ATM |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-11012 |
AT17#,CT17#,ET176,ST170..ATM |
2 | ||
| 33511C - COLLAR (FOR CONTROL SHAFT) | ||||
| 90387-08091 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-12034 |
AT17#,CT17#,ET176,ST170..ATM 12V 3.4W |
1 | ||
| 33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT) | ||||
| 33594-20010 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 33595 - BRACKET, SHIFT LOCK COMPUTER | ||||
| 33595-20010 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-2002004 |
AT17#,CT170,ST170..4FC..(S,SE,SG,SGEXT) BLUE,TRIM8# |
1 | ||
| 33623-2002003 |
AT17#,CT17#,ET176,ST170..ATM..(DX,S,SE,SG,SGEXT,SV,SX) GRAY,TRIM1# |
1 | ||
| 33623-2002003 |
AT17#,CT170,ET176,ST170..ATM..(DX,S,SG,SGEXT,SV,SX) GRAY,TRIM1# |
1 | ||
| 33623-2002004 |
AT17#,CT170,ST170..4FC..(S,SG,SGEXT) BLUE,TRIM8# |
1 | ||
| 33623-2002006 |
AT170..4FC..(SG,SV);AT171,175,CT170,ET176,ST170..ATM..(DX,S,SG,SGEXT,SX) SABLE,TRIM4# |
1 | ||
| 33623-2002006 |
AT170..4FC..(SE,SG,SV);AT171,175,CT17#,ET176,ST170..ATM..(DX,S,SE,SG,SGEXT,SX) SABLE,TRIM4# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07074 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT) | ||||
| 90119-08606 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT) | ||||
| 90206-12002 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-12029 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 33873 - LINK, SHIFT LOCK RELEASE, NO.3 | ||||
| 33873-20010 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 33874 - LINK, SHIFT LOCK RELEASE, NO.4 | ||||
| 33874-20010 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 33876 - GUIDE, SHIFT LOCK PLATE | ||||
| 33876-20010 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 33877 - LABEL, SHIFT LOCK INFORMATION, NO.1 | ||||
| 33877-20010 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 33878 - LABEL, SHIFT LOCK INFORMATION, NO.2 | ||||
| 33878-20010 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-20030 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT) | ||||
| 35907-2014106 |
AT170..4FC..(SE,SG,SV);AT171,175,CT17#,ET176,ST170..ATM SABLE,TRIM4# |
1 | ||
| 35907-2014106 |
AT170..4FC..(SG,SV);AT171,175,CT170,ET176,ST170..ATM..(DX,GLIM,S,SG,SGEXT,SX) SABLE,TRIM4# |
1 | ||
| 35907-2014101 |
AT17#,CT170,ST170..4FC..(S,SE,SG,SGEXT) BLACK,TRIM1#,4#,8# |
1 | ||
| 35907-2014104 |
AT17#,CT170,ST170..4FC..(S,SG,SGEXT) BLUE,TRIM8# |
1 | ||
| 35907-2014103 |
AT17#,CT170,ET176,ST170..ATM..(DX,GLIM,S,SG,SGEXT,SV,SX) GRAY,TRIM1# |
1 | ||
| 35907-2014104 |
AT17#,CT170,ST170..4FC..(S,SE,SG,SGEXT) BLUE,TRIM8# |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-20240 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 35973A - ATTACHMENT, POSITION INDICATOR HOUSING COVER | ||||
| 35973-20011 |
AT17#,CT170,ET176,ST170..ATM |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-20100 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-2008003 |
AT170,CT170..4FC..SE GRAY,GRAY,TRIM1# |
1 | ||
| 35975-2008004 |
AT170,CT170..4FC..(SE,SG) BLUE,TRIM8# |
1 | ||
| 35975-2008006 |
AT17#..4FC..(S,SG,SGEXT,SV) SABLE,SABLE,TRIM4# |
1 | ||
| 35975-2008001 |
AT170,CT170..4FC..SE BLACK,BLACK,TRIM1#,4# |
1 | ||
| 35975-2008004 |
AT17#,CT170,ST170..4FC..(S,SE,SG,SGEXT) BLUE,TRIM8# |
1 | ||
| 35975-2008003 |
AT170,CT176,ET176,ST170..ATM GRAY,TRIM1# |
1 | ||
| 35975-2008006 |
AT170..4FC..(SE,SG,SV);AT171,175,CT17#,ET176,ST170..ATM..(DX,S,SE,SG,SGEXT,SX) SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 90179-08068 | ||||
| 90209-12009 | ||||
| 91615-60818 | ||||
| 93315-14010 | ||||
| 93315-15012 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||
