AT170-CEPNU (1988)

Toyota Carina Ff

Production May 1988 - May 1990
Engine 5AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805-9005)4AFE..AT171 ; (8805- )5AF#,4SF#

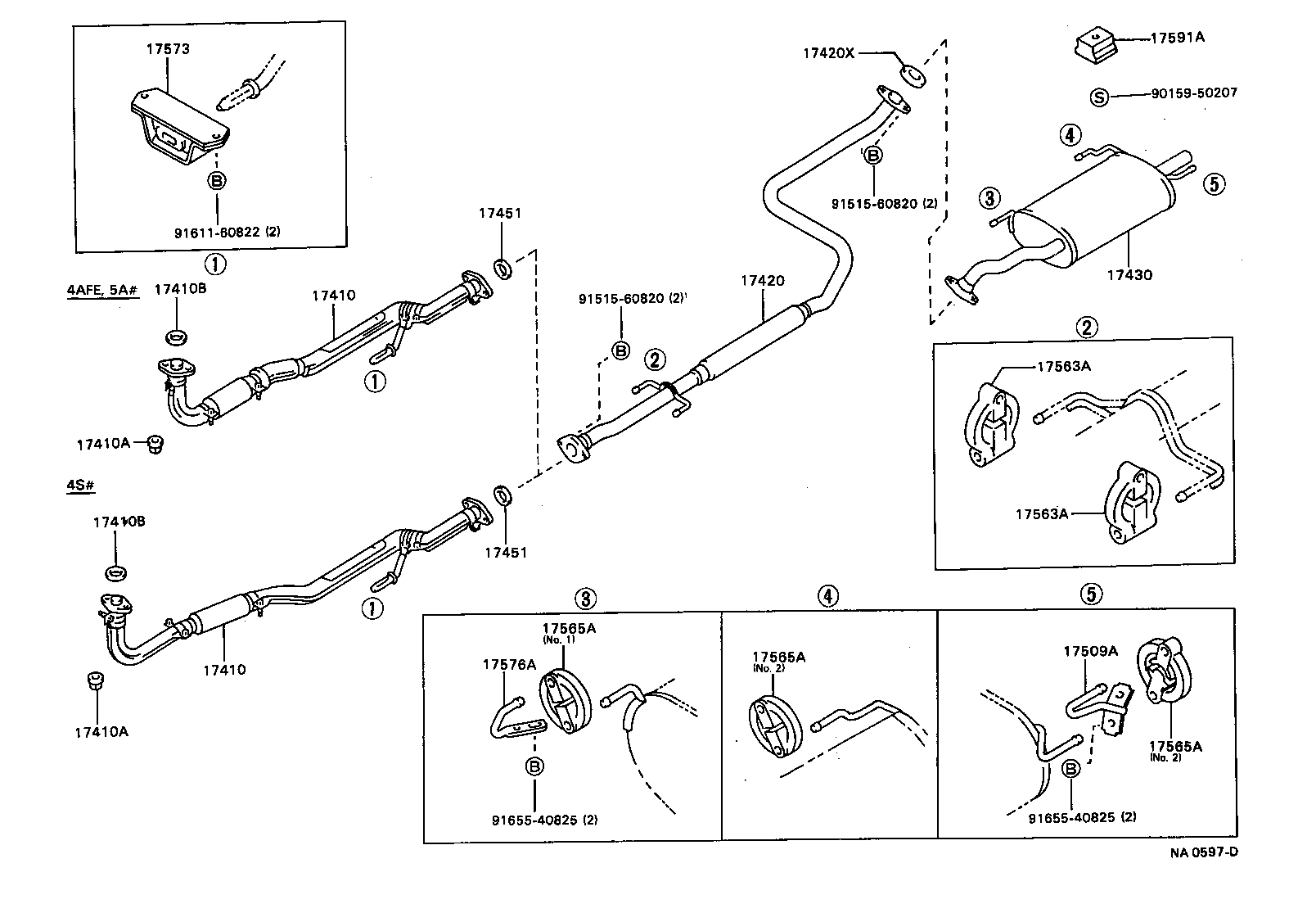

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17420 17420X 17430 17451 17451 17509A 17563A 17563A 17565A 17565A 17565A 17573 17576A 17591A 9015950207 9151560820 9151560820 9161160822 9165540825 9165540825
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-15250

4AFE,5AF#..AT170,171

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-15250

4AFE,5AF#..AT170,171

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AFE,5AF#,2C,3E,4SF#..AT17#,CT17#,ET176,ST170

 2
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AFE,5AF#,2C,3E,4SF#..AT17#,CT17#,ET176,ST170

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

4AFE,5AF,2C,3E..AT17#,CT17#,ET176

 1
90917-06004

4AFE,5AF,2C..AT17#,CT17#

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

4AFE,5AF,2C,3E..AT17#,CT17#,ET176

 1
90917-06004

4AFE,5AF,2C..AT17#,CT17#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-15101

4AFE,5AF..AT170,171

 1
17420-15100

4AFE,5AF..AT170,171

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

4AFE,5AF,3E..AT17#,ET176

 1
90917-06004

4AFE,5AF..AT17#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-15430

4AFE,5AF..AT170,171..SED

 1
17430-15431

4AFE,5AF..AT170,171..SED

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

4AFE,5AF,2C,4SFI..AT17#,CT17#,ST170

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

4AFE,5AF,2C,4SFI..AT17#,CT17#,ST170

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-63060

4AF#,4AGE,5AF#,2C,4SF#..AT170,171,CT170,ST170

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15050

4A#,5AF,3E,4SFI..AT170,171,ET176,ST170

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15050

4A#,5AF,3E,4SFI..AT170,171,ET176,ST170

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63020

4AF#,4AGE,5AF#,2C,4SF#..AT170,171,CT170,ST170

NO.1

 1
17565-63030

4AF#,4AGE,5AF#,2C,4SF#..AT170,171,CT170,ST170

NO.2

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63020

4AF#,4AGE,5AF#,2C,4SF#..AT170,171,CT170,ST170

NO.1

 1
17565-63030

4AF#,4AGE,5AF#,2C,4SF#..AT170,171,CT170,ST170

NO.2

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63020

4AF#,4AGE,5AF#,2C,4SF#..AT170,171,CT170,ST170

NO.1

 1
17565-63030

4AF#,4AGE,5AF#,2C,4SF#..AT170,171,CT170,ST170

NO.2

 2
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-74020

4AF#,4AGE,5AF#,3E,4SF#..AT17#,ET176,ST170

 1
17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6
17576-74030

4AF#,4AGE,5AF#,2C,4SF#..AT170,171,CT170,ST170

 1
17591A - STOPPER, EXHAUST PIPE SUPPORT
17591-36011

4AF#,4AGE,5AF#,2C,4SF#..AT17#,CT170,ST170

 1
Common parts
90159-50207
91515-60820
91611-60822
91655-40825
