AT170-CEPNK (1990)

Toyota Carina Ff

Production May 1990 - Aug 1992
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )5AFE

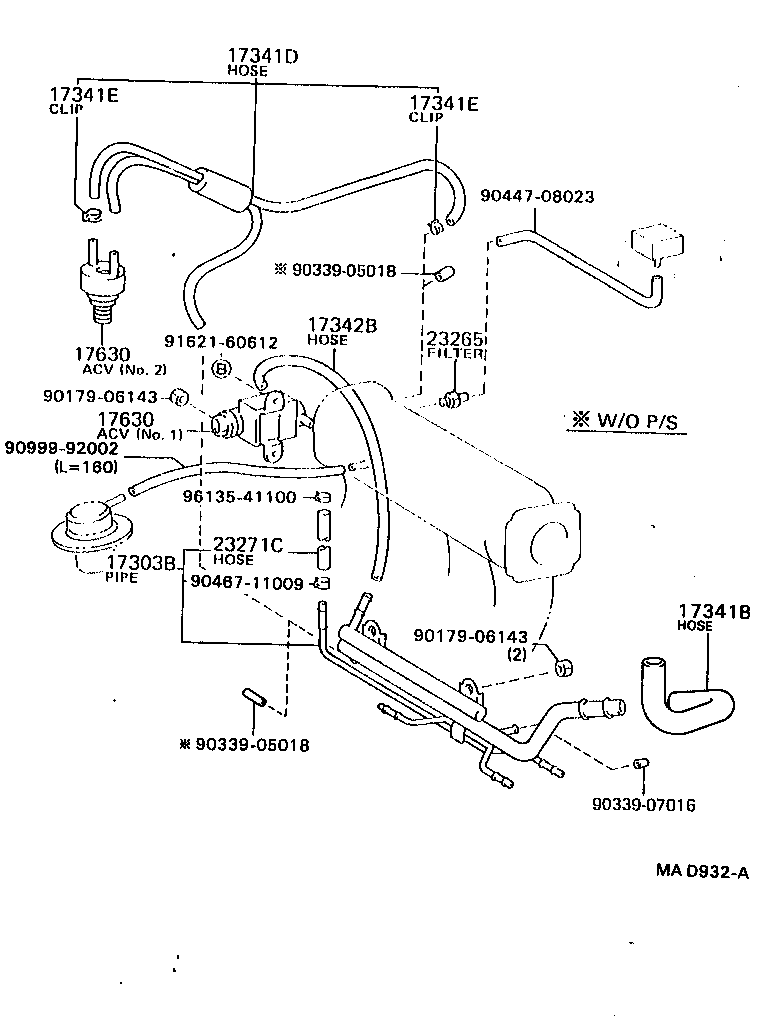

Click highlighted areas on diagram

diagram 17303B 17341B 17341D 17341E 17341E 17342B 17630 17630 23265 23271C 9017906143 9017906143 9033905018 9033905018 9033907016 9044708023 9046711009 9099992002 9162160612 9613541100
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-16150

5AFE..AT170

 1
17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-15130

4AF#,5AFE..AT17#

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15021

5AF..AT170

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15021

5AF..AT170

 1
23265 - FILTER, GAS, NO.1
90917-11022

5AFE..AT170

 1
90917-11023

5AF..AT170

 1
Common parts
90179-06143
90339-05018
90339-07016
90447-08023
90467-11009
90999-92002
91621-60612
96135-41100
