AT170-CEPEU (1988)

Toyota Carina Ff

Production May 1988 - May 1990
Engine 5AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

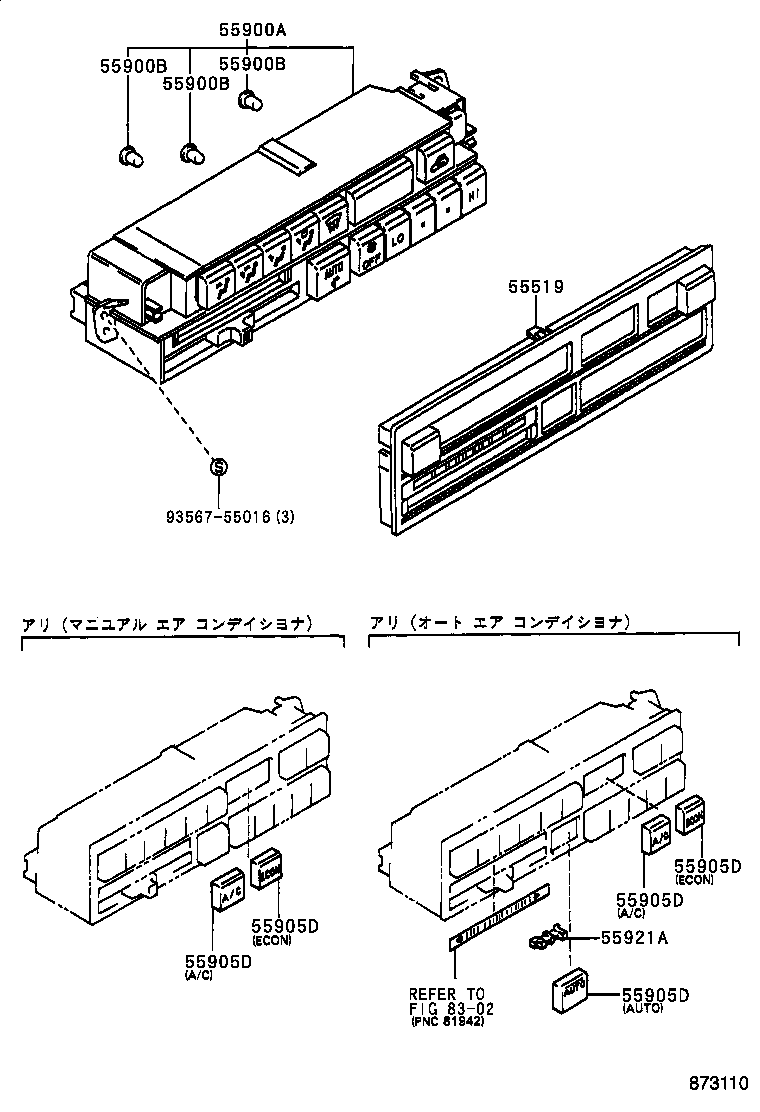

ILLUST NO. 1 OF 3(8805- )GLIM,S,SE,SG,SGEXT,SX

Click highlighted areas on diagram

PUSH CONTROL TYPE

diagram 55519 55900A 55900B 55900B 55900B 55905D 55905D 55905D 55905D 55905D 55921A 8302 9356755016
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-20270

ST170..SE;AT17#,CT170..GLIM,SE,SGEXT

 1
55900A - CONTROL & ACCESSORY ASSY, HEATER
55900-20600

ST170..SE;AT17#,CT170..GLIM,SE,SGEXT

 1
55900B - BULB, AIR CONDITIONER CONTROL
81936-20030

AT170,CT170,ST170..SE

14V 1.4W

 3
55900B - BULB, AIR CONDITIONER CONTROL
81936-20030

AT170,CT170,ST170..SE

14V 1.4W

 3
55900B - BULB, AIR CONDITIONER CONTROL
81936-20030

AT170,CT170,ST170..SE

14V 1.4W

 3
55905D - KNOB SUB-ASSY, CONTROL
55905-20290

ST170..SE;AT17#,CT170..GLIM,SE,SGEXT

ECON

 1
55905-20300

ST170..SE;AT17#,CT170..GLIM,SE,SGEXT

ｵｰﾄ

 1
55905-20280

ST170..SE;AT17#,CT170..GLIM,SE,SGEXT

A/C

 1
55905D - KNOB SUB-ASSY, CONTROL
55905-20290

ST170..SE;AT17#,CT170..GLIM,SE,SGEXT

ECON

 1
55905-20300

ST170..SE;AT17#,CT170..GLIM,SE,SGEXT

ｵｰﾄ

 1
55905-20280

ST170..SE;AT17#,CT170..GLIM,SE,SGEXT

A/C

 1
55905D - KNOB SUB-ASSY, CONTROL
55905-20290

ST170..SE;AT17#,CT170..GLIM,SE,SGEXT

ECON

 1
55905-20300

ST170..SE;AT17#,CT170..GLIM,SE,SGEXT

ｵｰﾄ

 1
55905-20280

ST170..SE;AT17#,CT170..GLIM,SE,SGEXT

A/C

 1
55905D - KNOB SUB-ASSY, CONTROL
55905-20290

ST170..SE;AT17#,CT170..GLIM,SE,SGEXT

ECON

 1
55905-20300

ST170..SE;AT17#,CT170..GLIM,SE,SGEXT

ｵｰﾄ

 1
55905-20280

ST170..SE;AT17#,CT170..GLIM,SE,SGEXT

A/C

 1
55905D - KNOB SUB-ASSY, CONTROL
55905-20290

ST170..SE;AT17#,CT170..GLIM,SE,SGEXT

ECON

 1
55905-20300

ST170..SE;AT17#,CT170..GLIM,SE,SGEXT

ｵｰﾄ

 1
55905-20280

ST170..SE;AT17#,CT170..GLIM,SE,SGEXT

A/C

 1
55921A - RETAINER, HEATER CONTROL
55921-20100

ST170..SE;AT17#,CT170..GLIM,SE,SGEXT

 1
Common parts
93567-55016
Linked diagrams
8302

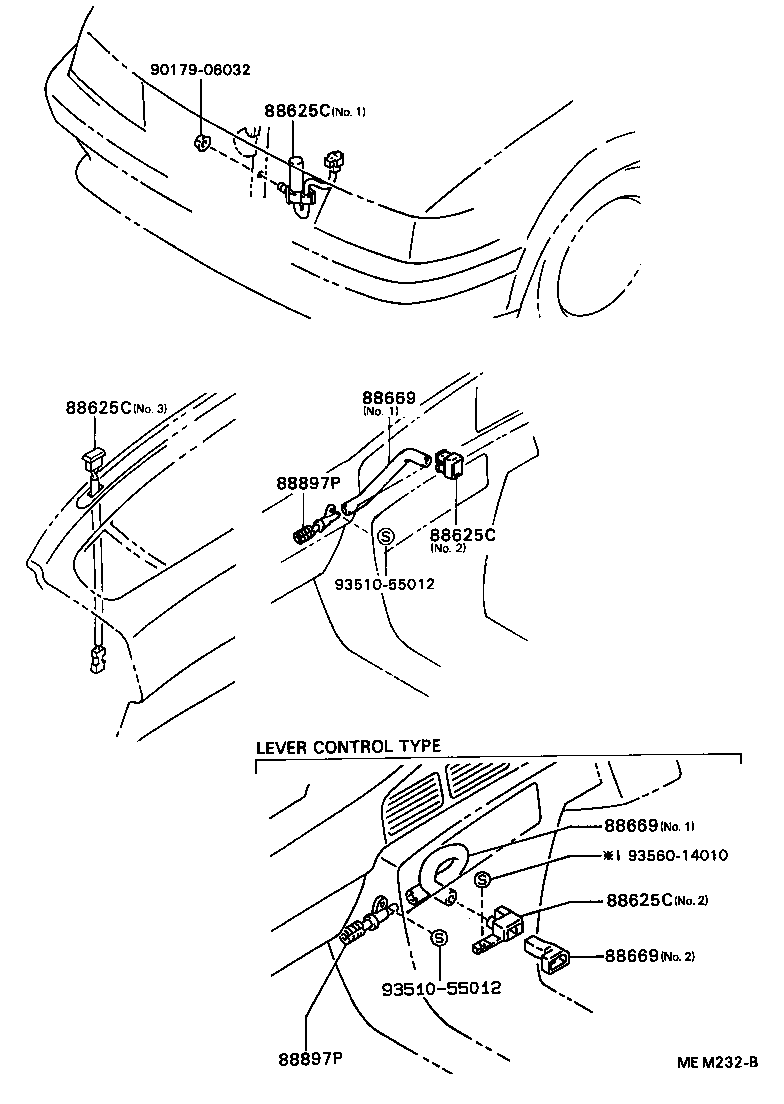

ILLUST NO. 2 OF 3(8805- )

Click highlighted areas on diagram

W(AUTO AIR CONDITIONER)

diagram 88625C 88625C 88625C 88625C 88669 88669 88669 88897P 88897P 9017906032 9351055012 9351055012 9356014010
Part # Description Qty Price
88625C - THERMISTOR, COOLER
88625-20190

AT17#,ST170..GLIM,SE,SGEXT,SX

NO.1

 1
88625-20140

AT17#,ST170..GLIM,SE,SGEXT,SX

NO.3

 1
88625-20130

ST170..SE..CI;AT17#,ST170..(GLIM,SE,SGEXT)..(CBR,EFI)

NO.2

 1
88625C - THERMISTOR, COOLER
88625-20190

AT17#,ST170..GLIM,SE,SGEXT,SX

NO.1

 1
88625-20140

AT17#,ST170..GLIM,SE,SGEXT,SX

NO.3

 1
88625-20130

ST170..SE..CI;AT17#,ST170..(GLIM,SE,SGEXT)..(CBR,EFI)

NO.2

 1
88625C - THERMISTOR, COOLER
88625-20190

AT17#,ST170..GLIM,SE,SGEXT,SX

NO.1

 1
88625-20140

AT17#,ST170..GLIM,SE,SGEXT,SX

NO.3

 1
88625-20130

ST170..SE..CI;AT17#,ST170..(GLIM,SE,SGEXT)..(CBR,EFI)

NO.2

 1
88625C - THERMISTOR, COOLER
88625-20190

AT17#,ST170..GLIM,SE,SGEXT,SX

NO.1

 1
88625-20140

AT17#,ST170..GLIM,SE,SGEXT,SX

NO.3

 1
88625-20130

ST170..SE..CI;AT17#,ST170..(GLIM,SE,SGEXT)..(CBR,EFI)

NO.2

 1
88669 - HOSE, COOLER AIR
88669-20080

ST170..SE;AT17#..GLIM,SE,SGEXT

NO.1

 1
88669 - HOSE, COOLER AIR
88669-20080

ST170..SE;AT17#..GLIM,SE,SGEXT

NO.1

 1
88669 - HOSE, COOLER AIR
88669-20080

ST170..SE;AT17#..GLIM,SE,SGEXT

NO.1

 1
88897P - ASPIRATOR
88566-22040

AT17#,ST170..GLIM,SE,SGEXT,SX

 1
88897P - ASPIRATOR
88566-22040

AT17#,ST170..GLIM,SE,SGEXT,SX

 1
Common parts
90179-06032
93510-55012
93560-14010

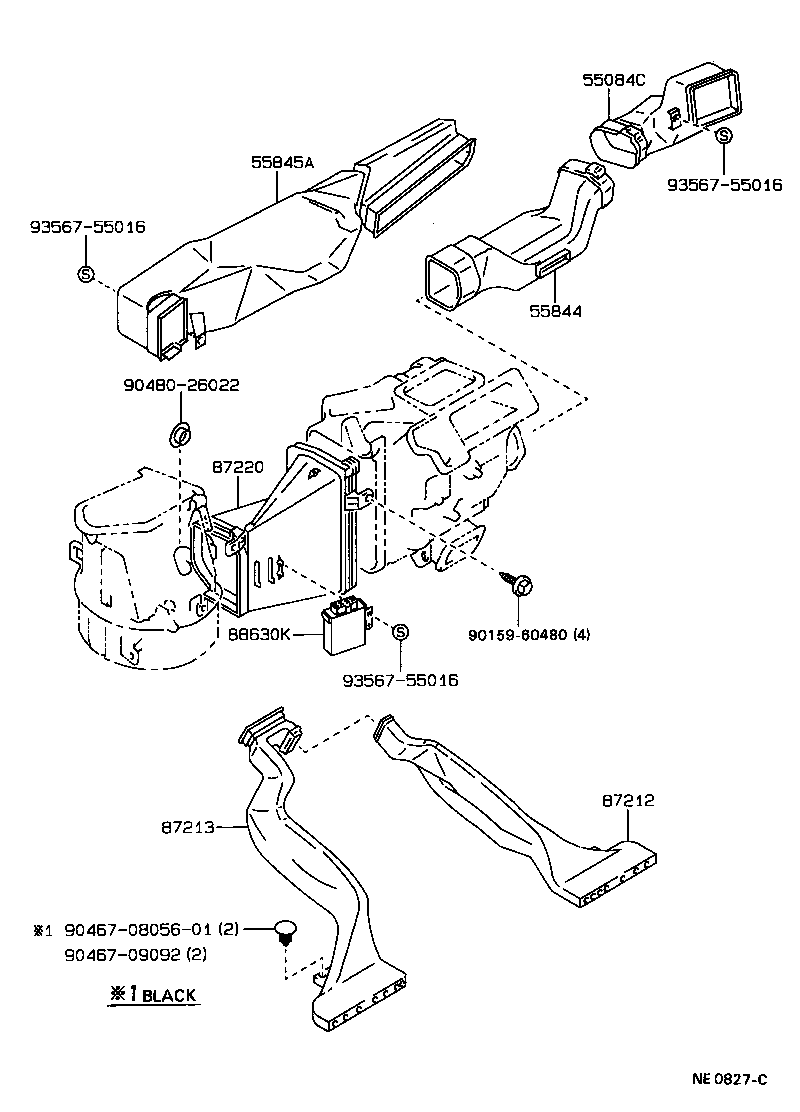

ILLUST NO. 3 OF 3(8805- )

Click highlighted areas on diagram

diagram 55084C 55844 55845A 87212 87213 87220 88630K 9015960480 904670805601 9046709092 9048026022 9356755016 9356755016 9356755016
Part # Description Qty Price
55084C - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-20140

AT17#,CT17#,ET176,ST170

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-20120

AT17#,CT17#,ET176,ST170

 1
55844-20130

AT170..(SE,SG)..CBR;AT17#,CT170,ST170..(GLIM,S,SE,SGEXT,SV,SX)..(CI,DSL,EFI,EFIS)

ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-20170

AT17#,CT17#,ET176,ST170

 1
87212 - DUCT, AIR, REAR NO.1
87212-20070

AT170,171,CT17#,ET176,ST170

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87213 - DUCT, AIR, REAR NO.2
87213-20040

AT170,171,CT17#,ET176,ST170

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87220 - DUCT ASSY, AIR
87220-20040

AT170,171,CT17#,ET176,ST170

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87220-20030

AT17#,CT17#,ET176,ST170

 1
88630K - RELAY ASSY
88630-20110

ST170..SE;AT17#,CT170..GLIM,SE,SGEXT

 1
Common parts
90159-60480
90467-0805601
90467-09092
90480-26022
93567-55016
