AT170-CEPEU (1988)
Toyota Carina Ff

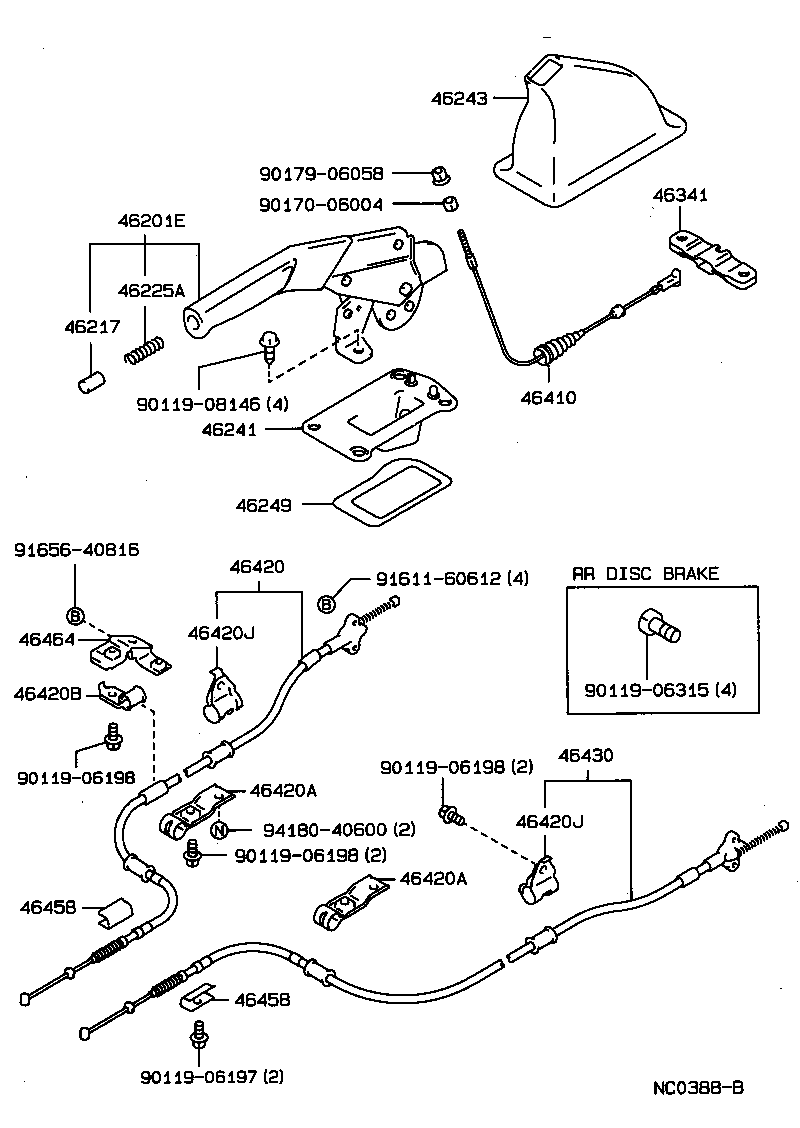

ILLUST NO. 1 OF 2(8805- )AT170,171,CT170,ST170
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-2019104 |
AT170,171,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 46201-2019106 |
AT170,171,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX SABLE,TRIM4# |
1 | ||
| 46201-2019103 |
AT170,171,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX GRAY,TRIM1# |
1 | ||
| 46201-2019106 |
AT170,171,CT170,ST170..GLIM,S,SG,SGEXT,SX SABLE,TRIM4# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1202003 |
AT170,171,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX SHADOW GRAY,TRIM1# |
1 | ||
| 46217-1202006 |
CT176,ET176..DX,SG;AT170,171,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 46217-1202006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 46217-1202006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 46217-12020J0 |
AT170,CT170,ST170..SE,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 46217-1202003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX SHADOW GRAY,TRIM1# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10069 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-20050 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-20020 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-20040 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-20310 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 46410-20300 |
AT170,171,CT17#,ET176,ST170 CHUO HATSUJO |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-29035 |
AT170,171,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01331 |
AT170,171,CT170,ST170 右側 |
1 | ||
| 90949-01605 |
AT170,171,CT170,ST170 右側 |
1 | ||
| 90949-01331 |
AT170,171,CT170,ST170 |
2 | ||
| 90949-01475 |
AT170,171,CT170,ST170 左側 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01331 |
AT170,171,CT170,ST170 右側 |
1 | ||
| 90949-01605 |
AT170,171,CT170,ST170 右側 |
1 | ||
| 90949-01331 |
AT170,171,CT170,ST170 |
2 | ||
| 90949-01475 |
AT170,171,CT170,ST170 左側 |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01332 |
AT170,171,CT170,ST170 |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01330 |
AT170,171,CT170,ST170 |
2 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01330 |
AT170,171,CT170,ST170 |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-29045 |
AT170,171,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 46464 - PLATE, CABLE CLAMP SUPPORT | ||||
| 46464-32010 |
AT170,171,CT170,ST170 |
1 | ||
| Common parts | ||||
| 90119-06197 | ||||
| 90119-06198 | ||||
| 90119-06315 | ||||
| 90119-08146 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 91611-60612 | ||||
| 91656-40816 | ||||
| 94180-40600 | ||||
