AT170-CEPEU (1988)
Toyota Carina Ff
(8805- )AT17#,CT17#..4FC
A240L,A240E,A241L,A241H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-10077 |
AT17#,CT17#,ST170..4FC *10−1.25PX43−26 |
1 | ||
| 91619-61245 |
AT17#,ET176..ATM *12−1.25PX45−30 |
2 | ||
| 90119-12168 |
AT17#,ET176..ATM *12−1.25PX55−30 |
1 | ||
| 91611-61025 |
AT17#,ET176..ATM..(DX,S,SE,SG,SGEXT,SV) *10−1.25PX25−25 |
1 | ||
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-10077 |
AT17#,CT17#,ST170..4FC *10−1.25PX43−26 |
1 | ||
| 91619-61245 |
AT17#,ET176..ATM *12−1.25PX45−30 |
2 | ||
| 90119-12168 |
AT17#,ET176..ATM *12−1.25PX55−30 |
1 | ||
| 91611-61025 |
AT17#,ET176..ATM..(DX,S,SE,SG,SGEXT,SV) *10−1.25PX25−25 |
1 | ||
| 33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE | ||||
| 33117-12030 |
AT17#,CT17#..4FC |
1 | ||
| 33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
AT17#,CT17#,ET176,ST170..ATM |
2 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-12230 |
AT170,171..4FC..(DX,S,SE,SG,SV) |
1 | ||
| 35101P - CASE & COVER SUB-ASSY, TRANSAXLE | ||||
| 35101-12021 |
AT170,171..4FC |
1 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-08065 |
AT17#,CT17#..4FC *8−1.25PX45−35 |
10 | ||
| 90105-08068 |
AT17#,CT17#..4FC *8−1.25PX35−30 |
3 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-08065 |
AT17#,CT17#..4FC *8−1.25PX45−35 |
10 | ||
| 90105-08068 |
AT17#,CT17#..4FC *8−1.25PX35−30 |
3 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-12120 |
AT170,171..4FC |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03101 |
AT17#,CT17#..4FC |
1 | ||
| 35104F - SEAL, OIL (FOR TRANSAXLE CASE) | ||||
| 90311-34010 |
AT170,171..4FC |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
AT17#,CT170..4FC |
1 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
AT17#,CT17#..4FC |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90447-11019 |
AT170,171..4FC |
1 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-11001 |
AT17#,CT17#..4FC RR COVER SIDE |
2 | ||
| 90250-10007 |
AT17#,CT17#..4FC HOUSING SIDE |
2 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-11001 |
AT17#,CT17#..4FC RR COVER SIDE |
2 | ||
| 90250-10007 |
AT17#,CT17#..4FC HOUSING SIDE |
2 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
AT17#,CT17#..4FC |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
AT17#,CT17#..4FC |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-12050 |
AT170,171,CT17#..4FC |
1 | ||
| 35106-12050 |
AT17#,CT170..4FC |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
AT17#,CT17#..4FC |
18 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08066 |
AT17#,CT17#..4FC *8−1.25PX72−30 |
1 | ||
| 90105-08065 |
AT17#,CT17#..4FC *8−1.25PX45−35 |
10 | ||
| 90105-08071 |
AT17#,CT17#..4FC *8−1.25PX30−25 |
2 | ||
| 90105-08068 |
AT170,171,CT17#..4FC *8−1.25PX35−30 |
5 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08066 |
AT17#,CT17#..4FC *8−1.25PX72−30 |
1 | ||
| 90105-08065 |
AT17#,CT17#..4FC *8−1.25PX45−35 |
10 | ||
| 90105-08071 |
AT17#,CT17#..4FC *8−1.25PX30−25 |
2 | ||
| 90105-08068 |
AT170,171,CT17#..4FC *8−1.25PX35−30 |
5 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 35148A - GASKET, GOVERNOR APPLY, NO.2 | ||||
| 35148-12010 |
AT17#,CT17#..4FC..(DX,S,SE,SG,SGEXT,SV) |
3 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-20010 |
AT17#,CT17#..4FC |
1 | ||
| 35165 - PLATE, TRANSMISSION CASE, NO.1 | ||||
| 35165-12010 |
AT17#..4FC |
1 | ||
| 35165A - BOLT (FOR TRANSMISSION CASE PLATE NO.1) | ||||
| 90105-06049 |
AT17#,CT17#..4FC |
1 | ||
| 35166 - PLATE, TRANSMISSION CASE, NO.3 | ||||
| 35166-12010 |
AT17#,CT17#..4FC |
1 | ||
| 35166A - BOLT (FOR TRANSMISSION CASE PLATE NO.3) | ||||
| 90105-06049 |
AT17#,CT17#..4FC |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-12020 |
AT17#,CT17#..4FC |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
AT17#,CT17#,ET176,ST170..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
AT17#,CT17#,ET176,ST170..ATM |
3 | ||
| 35395A - STRAINER, GOVERNOR OIL | ||||
| 35395-20010 |
AT17#,CT170..4FC..(DX,S,SE,SG,SV) |
1 | ||
| 35395A - STRAINER, GOVERNOR OIL | ||||
| 35395-20010 |
AT17#,CT170..4FC..(DX,S,SE,SG,SV) |
1 | ||
| Common parts | ||||
| 90116-10114 | ||||
| 90179-10015 | ||||
| 91611-60614 | ||||
| 91611-61028 | ||||
| 96132-30400 | ||||

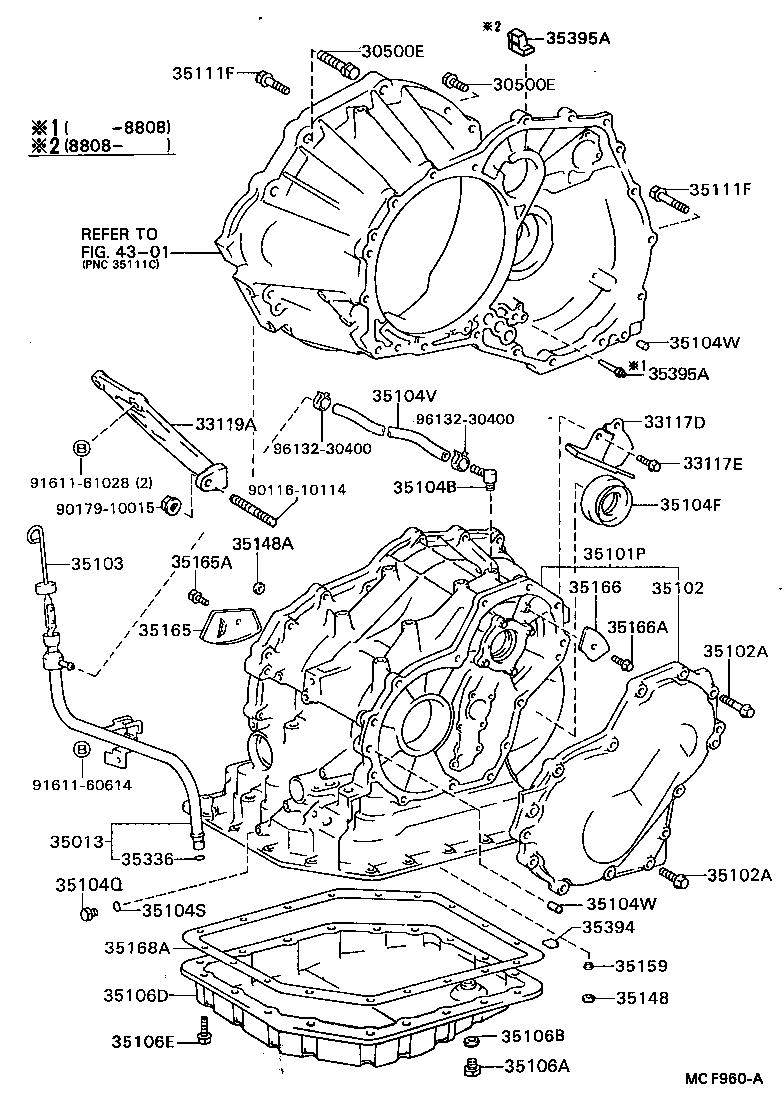

| Linked diagrams | ||||
| 4301 | ||||
