AT170-CEPEU (1988)

Toyota Carina Ff

Production May 1988 - May 1990
Engine 5AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )

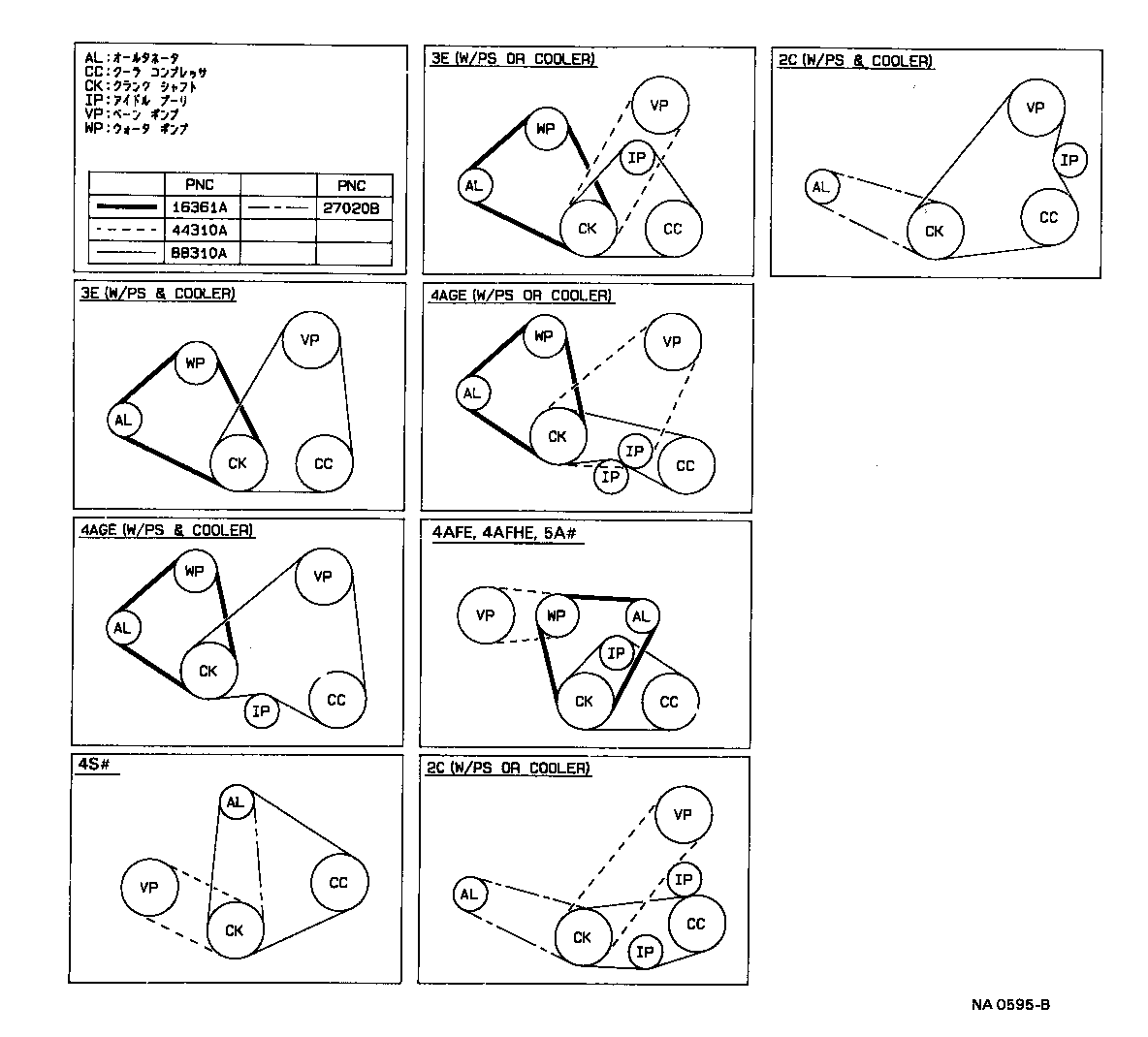

Click highlighted areas on diagram

diagram 16361A 27020B 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-00980

4AFE,5AF..AT17#..4FC

 1
44310A - BELT, V(FOR VANE PUMP)
99363-50630

AT17#..DX,S,SE,SG,SGEXT,SV

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-00870

AT170,175..SED..EFI;AT170..(DX,SE,SV)..CBR

 1
