AT170-CEPEK (1990)

Toyota Carina Ff

Production May 1990 - Aug 1992
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )5AFE

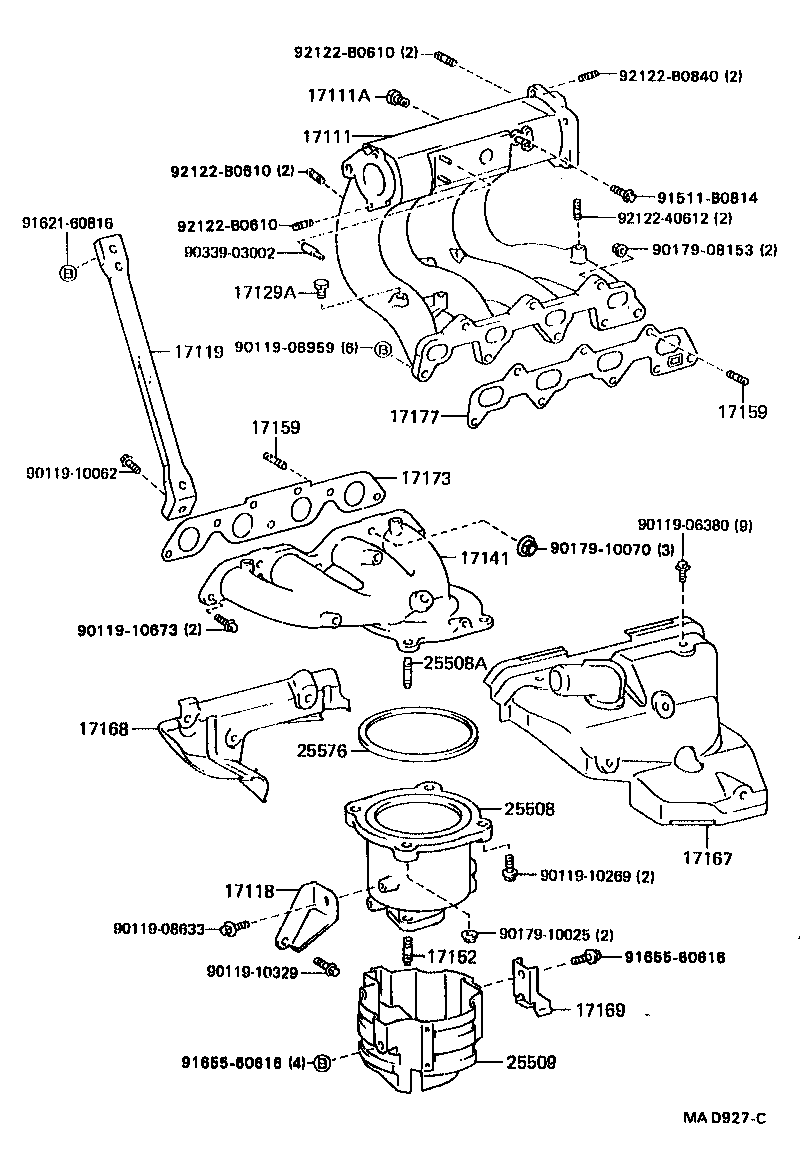

Click highlighted areas on diagram

diagram 17111 17111A 17118 17119 17129A 17141 17152 17159 17159 17167 17168 17169 17173 17177 25508 25508A 25509 25576 9011906380 9011908633 9011908959 9011910062 9011910269 9011910329 9011910673 9017908153 9017910025 9017910070 9033903002 91511B0814 9162160816 9165560616 9165560616 9212240612 92122B0610 92122B0610 92122B0610 92122B0840
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-15020

5AF..AT170

 1
17111A - PLUG, NO.1
90344-53011

5AF..AT170

 1
17118 - STAY, MANIFOLD
17118-15070

4AFE,5AF#..AT17#

 1
17119 - STAY, MANIFOLD, NO.2
17139-15020

5AF..AT170

 1
17129A - UNION, NO.1
90345-51006

5AFE..AT170

 1
17141 - MANIFOLD, EXHAUST
17141-15120

4AFE,5AF#..AT17#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10146

4AFE,5AF#..AT17#

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61032

4AFE,5AF..AT17#

EXHAUST MANIFOLD

 2
92112-60825

4AF#,5AF#..AT17#

INTAKE MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61032

4AFE,5AF..AT17#

EXHAUST MANIFOLD

 2
92112-60825

4AF#,5AF#..AT17#

INTAKE MANIFOLD

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17107-15010

5AF..AT170

 1
17167-15070

4AFE,5AFE..AT17#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-15010

4AFE,5AF#..AT17#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-15010

4AFE,5AF..AT17#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-15020

5AF..AT170

 1
25508 - CONVERTER SUB-ASSY, MANIFOLD
25508-15020

4AFE,5AF#..AT170,171

 1
25508A - BOLT, STUD(FOR MANIFOLD CONVERTER)
90116-10146

4AFE,5AF#..AT17#

 2
25509 - INSULATOR SUB-ASSY, MANIFOLD CONVERTOR
25509-15020

4AFE,5AF..AT17#

 1
25576 - GASKET, MANIFOLD CONVERTER
25576-15020

4AFE,5AFE..AT170,175

 1
25576-15010

4AFE,5AF#..AT17#

 1
25576-15020

4AFE,5AFE..AT170,175

 1
Common parts
90119-06380
90119-08633
90119-08959
90119-10062
90119-10269
90119-10329
90119-10673
90179-08153
90179-10025
90179-10070
90339-03002
91511-B0814
91621-60816
91655-60616
92122-40612
92122-B0610
92122-B0840
