AT170-CEPDU (1988)

Toyota Carina Ff

Production May 1988 - May 1990
Engine 5AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )AT170,171,CT170,ST170..SED

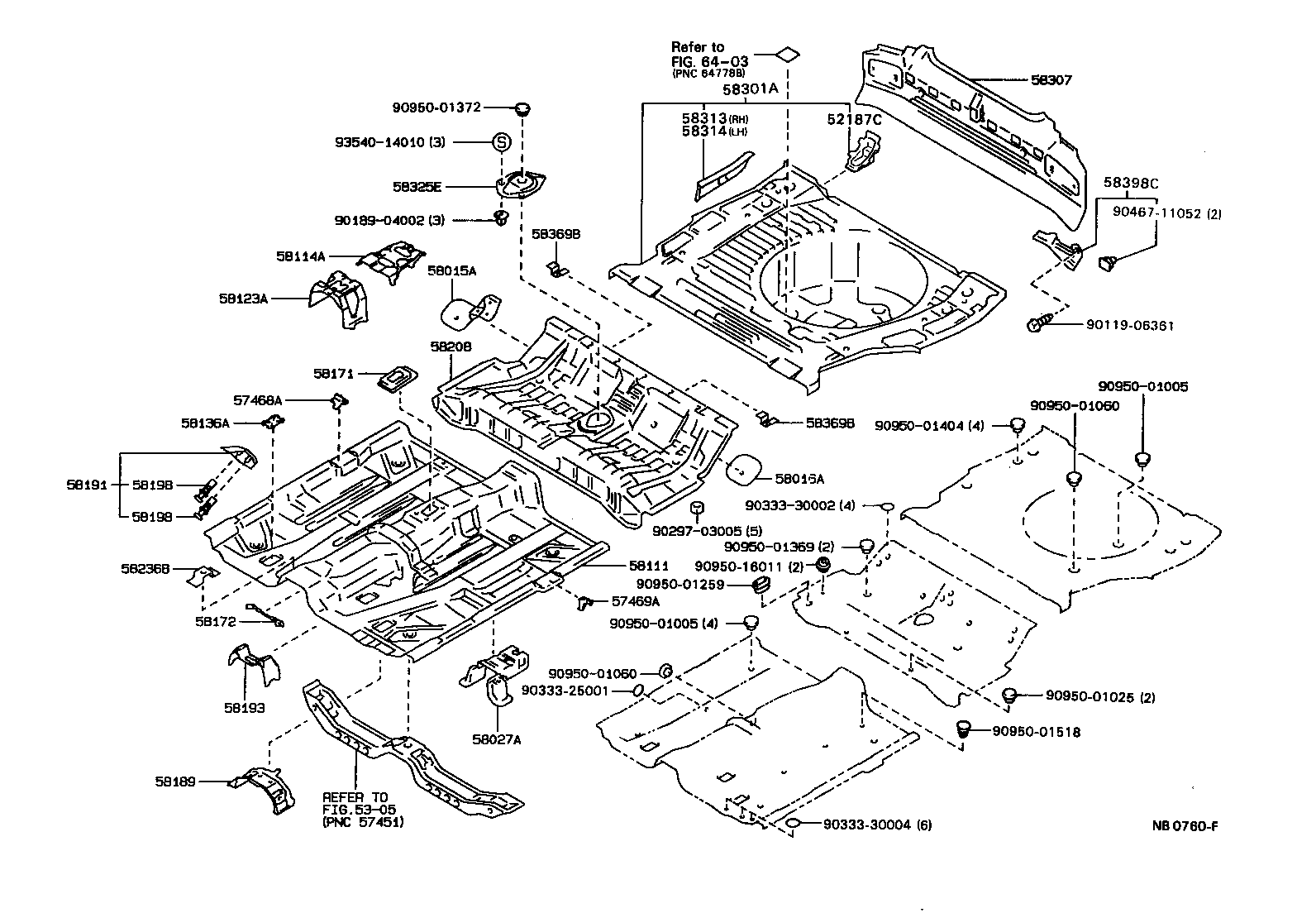

Click highlighted areas on diagram

diagram 52187C 5305 57468A 57469A 58015A 58016A 58027A 58111 58114A 58123A 58136A 58171 58172 58189 58191 58193 58198 58198 58208 58236B 58301A 58307 58313 58314 58325E 58369B 58369B 58398C 6403 9011906361 9018904002 9029703005 9033325001 9033330002 9033330004 9046711052 9095001005 9095001005 9095001025 9095001060 9095001060 9095001259 9095001369 9095001372 9095001404 9095001518 9095016011 9354014010
Part # Description Qty Price
52187C - BRACKET, REAR BUMPER SIDE, NO.2
52187-20060

AT170,171,CT170,ST170..SED

 2
57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH
57468-20030

AT170,171,CT17#,ET176,ST170

 1
57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH
57469-20030

AT170,171,CT17#,ET176,ST170

 1
58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58015-32030

AT170,171,CT170,ST170

 1
58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58016-32020

AT170,171,CT170,ST170

 1
58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR
58027-20070

AT170,171,CT17#,ST170..DX,S,SE,SG,SGEXT,SV,SX

 1
58111 - PAN, FRONT FLOOR
58111-20120

AT170,171,CT17#,ET176,ST170

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58114-20040

AT170,171,CT17#,ET176,ST170

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-20040

AT170,171,CT17#,ET176,ST170

 1
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-20010

AT170,171,CT17#,ET176,ST170

 2
58171 - REINFORCEMENT, PARKING BRAKE BASE
58107-20040

AT170,171,CT17#,ET176,ST170

 1
58172 - BRACKET, COMPUTER MOUNTING, NO.3
58172-20040

AT170,171,CT17#,ET176,ST170

 1
58189 - REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
58189-20020

AT170,171,CT17#,ET176,ST170

 1
58191 - FOOTREST, FRONT FLOOR
58191-20040

AT170,171,CT170,ST170

 1
58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58109-20090

AT170,171,CT17#,ET176,ST170

 1
58198 - CLIP, FOOTREST
58198-20030

AT170,171,CT170,ST170

L=89.1

 1
58198-20020

AT170,171,CT170,ST170

L=97.1

 1
58198 - CLIP, FOOTREST
58198-20030

AT170,171,CT170,ST170

L=89.1

 1
58198-20020

AT170,171,CT170,ST170

L=97.1

 1
58208 - PAN, CENTER FLOOR
58211-32051

AT170,171,CT170,ST170

 1
58301A - PANEL SUB-ASSY, REAR FLOOR
58301-20650

AT170,171,CT170,ST170..SED

 1
58301-20680

CT170..SE;AT170,171,ST170..GLIM,S,SE,SG,SGEXT

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-20670

AT17#,CT170,ST170..DX,S,SG,SGEXT

 1
58307-20680

AT170,171,CT170,ST170..GLIM,SE

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-20300

AT170,CT170,ST170..SED

 1
58313-20300

AT170,171,CT170,ST170..SED

 1
58313-20300

CT170..SE;AT170,171,ST170..GLIM,S,SE,SG,SGEXT

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-20280

CT170..SE;AT170,171,ST170..GLIM,S,SE,SG,SGEXT

 1
58314-20280

AT170,CT170,ST170..SED

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-32020

AT170,171,CT170,ST170

 1
58369B - BRACKET, FUEL TUBE, NO.3
58369-32010

AT170,171,CT170,ST170

 2
58369B - BRACKET, FUEL TUBE, NO.3
58369-32010

AT170,171,CT170,ST170

 2
58398C - COVER, BODY LOWER BACK, LH
58398-20070

AT170,171,CT170,ST170..SED

 1
Common parts
90119-06361
90189-04002
90297-03005
90333-25001
90333-30002
90333-30004
90467-11052
90950-01005
90950-01025
90950-01060
90950-01259
90950-01369
90950-01372
90950-01404
90950-01518
90950-16011
93540-14010
Linked diagrams
5305
6403
