AT170-CEPDU (1988)

Toyota Carina Ff

Production May 1988 - May 1990
Engine 5AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )AT170,171,CT170,ST170

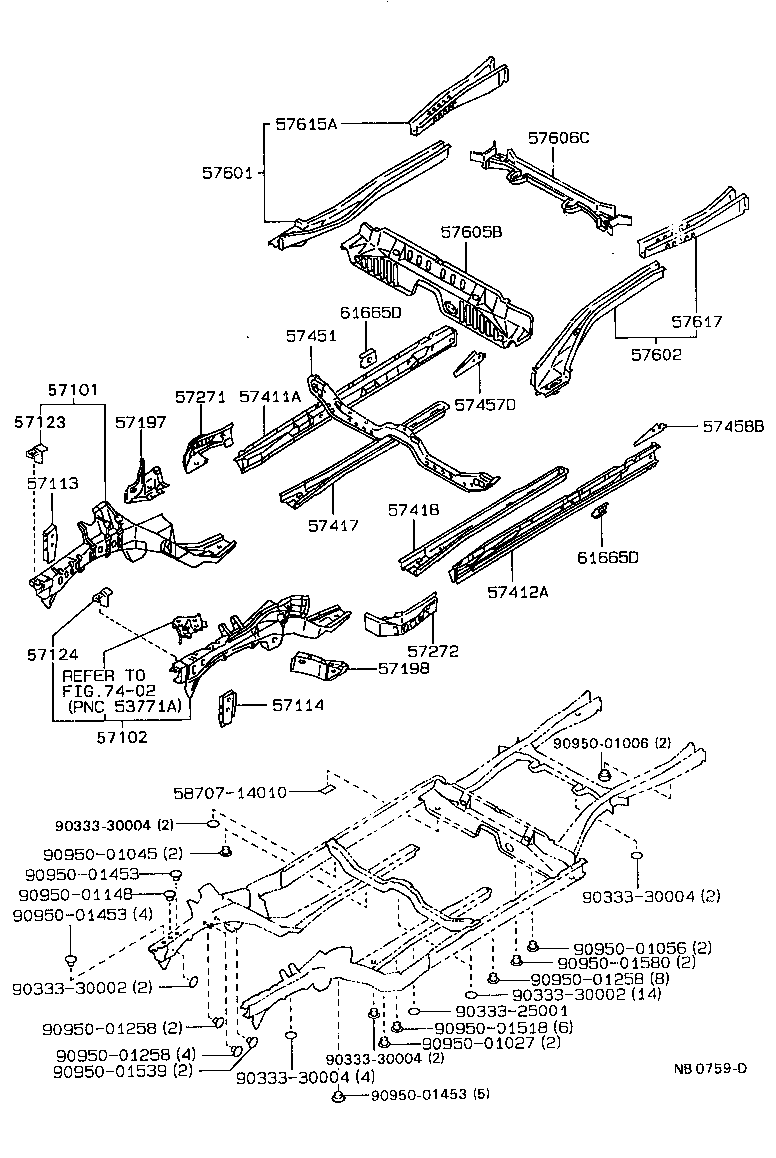

Click highlighted areas on diagram

diagram 57101 57102 57113 57114 57123 57124 57197 57198 57271 57272 57411A 57412A 57417 57418 57451 57457D 57458B 57601 57602 57605B 57606C 57615A 57617 5870714010 61665D 61665D 7402 9033325001 9033330002 9033330002 9033330004 9033330004 9033330004 9033333004 9095001006 9095001027 9095001045 9095001056 9095001148 9095001258 9095001258 9095001258 9095001453 9095001453 9095001453 9095001518 9095001539 9095001580
Part # Description Qty Price
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-20905

AT170,171

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-20902

AT170,171

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-20110

AT17#,CT17#,ET176,ST170

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-20090

AT17#,CT17#,ET176,ST170

 1
57123 - SUPPORT, FRONT SIDE MEMBER, RH
57123-20030

AT17#,CT17#,ET176,ST170

 1
57124 - SUPPORT, FRONT SIDE MEMBER, LH
57124-20030

AT17#,CT17#,ET176,ST170

 1
57197 - BOX, TORQUE, FRONT RH
57197-20030

AT170,171,CT17#,ET176,ST170

 1
57198 - BOX, TORQUE, FRONT LH
57198-20030

AT170,171,CT17#,ET176,ST170

 1
57271 - EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH
57271-20020

AT170,171,CT17#,ET176,ST170

 1
57272 - EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH
57272-20020

AT170,171,CT17#,ET176,ST170

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57411-20070

AT17#,CT17#,ET176,ST170

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57412-20170

AT170,171,CT17#,ET176,ST170

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-20050

AT170,171,CT17#,ET176,ST170

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-20050

AT170,171,CT170,ST170

 1
57451 - MEMBER, FRONT FLOOR CROSS
57408-20010

AT170,171,CT17#,ET176,ST170

 1
57457D - PATCH, FLOOR SIDE MEMBER, REAR RH
57457-20040

AT17#,CT17#,ET176,ST170

 1
57458B - PATCH, FLOOR SIDE MEMBER, REAR LH
57458-20030

AT17#,CT17#,ET176,ST170

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-20270

AT170,171,CT170,ST170..SED

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-20270

AT170,171,CT170,ST170..SED

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-20070

AT170,171,CT170,ST170

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-95500

ST170..SX;AT170,171..GLIM,SE,SV

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-95901

AT170,171,CT170,ST170..SED

 1
57617 - MEMBER, REAR FLOOR SIDE, REAR LH
57616-95901

AT170,171,CT170,ST170..SED

 1
61665D - PLATE, SAFETY BELT ANCHORAGE
61665-22010

AT17#,CT17#,ET176,ST170

 2
61665D - PLATE, SAFETY BELT ANCHORAGE
61665-22010

AT17#,CT17#,ET176,ST170

 2
Common parts
58707-14010
90333-25001
90333-30002
90333-30004
90333-33004
90950-01006
90950-01027
90950-01045
90950-01056
90950-01148
90950-01258
90950-01453
90950-01518
90950-01539
90950-01580
Linked diagrams
7402
