AT170-CEPDU (1988)

Toyota Carina Ff

Production May 1988 - May 1990
Engine 5AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )

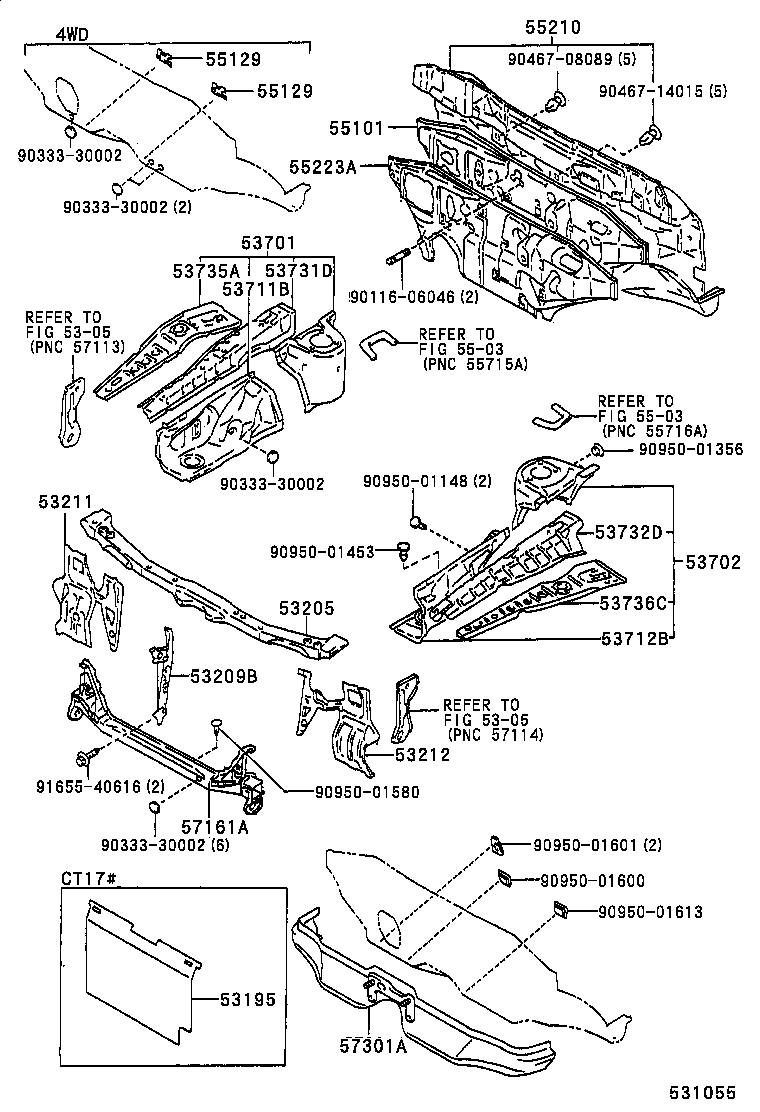

Click highlighted areas on diagram

diagram 5305 5305 53195 53205 53209B 53211 53212 53701 53702 53711B 53712B 53731D 53732D 53735A 53736C 5503 5503 55101 55129 55129 55210 55223A 57161A 57301A 9011606046 9033330002 9033330002 9033330002 9033330002 9046708089 9046714015 9095001148 9095001356 9095001453 9095001580 9095001600 9095001601 9095001613 9165540616
Part # Description Qty Price
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-20900

AT17#,CT17#,ET176,ST170..DX,S,SE,SG,SGEXT,STD,SV,SX

 1
53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT
53209-20170

AT17#,CT17#,ET176,ST170

 1
53211 - SUPPORT, RADIATOR, RH
53211-20190

AT17#,CT17#,ET176,ST170

 1
53212 - SUPPORT, RADIATOR, LH
53212-20190

AT17#,CT17#,ET176,ST170

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-20650

AT170,171,CT17#,ET176,ST170

 1
53701-20670

AT170..SE

ｱﾘ(ESC)

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-20660

AT170..SE

ｱﾘ(ESC)

 1
53702-20641

AT170,171,CT17#,ET176,ST170

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-20240

AT170..SE

ｱﾘ(ESC)

 1
53711-20220

AT17#,CT17#,ET176,ST170

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-20251

AT17#,CT17#,ET176,ST170

 1
53712-20270

AT170..SE

ｱﾘ(ESC)

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-20070

AT17#,CT17#,ET176,ST170

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-20070

AT17#,CT17#,ET176,ST170

 1
53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53735-20050

AT17#,CT17#,ET176,ST170

 1
53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53736-20060

AT17#,CT17#,ET176,ST170

 1
55101 - PANEL SUB-ASSY, DASH
55101-2B904

AT170,171,CT17#,ET176,ST170..ATM

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-20190

AT170,171,CT17#,ET176,ST170

 1
57161A - MEMBER, FRONT CROSS, FRONT W/REAR
57161-20908

AT17#,CT17#,ET176,ST170

 1
Common parts
90116-06046
90333-30002
90467-08089
90467-14015
90950-01148
90950-01356
90950-01453
90950-01580
90950-01600
90950-01601
90950-01613
91655-40616
Linked diagrams
5305
5503
