AT170-CEMNU (1988)

Toyota Carina Ff

Production May 1988 - May 1990
Engine 5AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )

Click highlighted areas on diagram

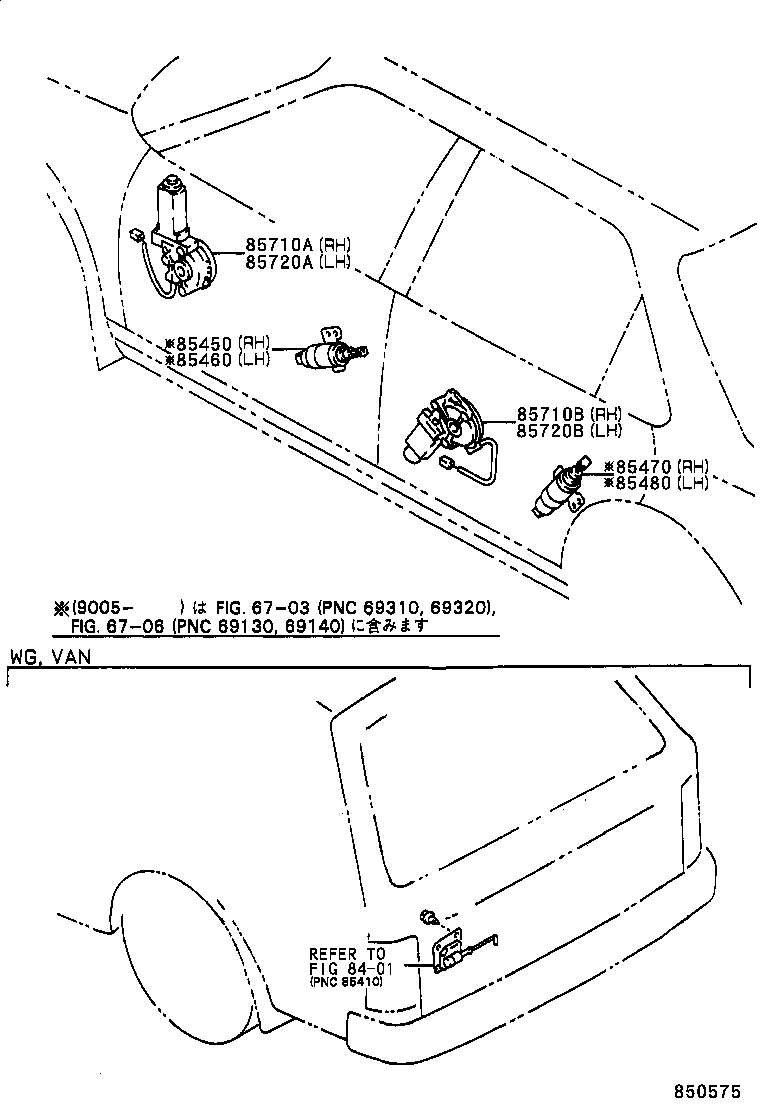

diagram 8401 85450 85460 85470 85480 85710A 85710B 85720A 85720B
Part # Description Qty Price
85450 - SOLENOID ASSY, DOOR CONTROL, FRONT RH
85450-20130

AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SX

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=85450-20130

 1
85450-20060

AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SX

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=85450-20060

 1
85450-20060

AT175..SGEXT;AT170,171,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=85450-20060

 1
85460 - SOLENOID ASSY, DOOR CONTROL, FRONT LH
85450-20210

AT175..SGEXT;AT170,171,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX

 1
85450-16020

AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SX

 1
85450-20210

AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SX

 1
85470 - SOLENOID ASSY, DOOR CONTROL, REAR RH
85450-30530

AT175..SGEXT;AT170,171,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX

 1
85450-30530

AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SX

 1
85480 - SOLENOID ASSY, DOOR CONTROL, REAR LH
85450-30540

AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SX

 2
85450-30540

AT175..SGEXT;AT170,171,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX

 2
85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH
85710-20080

AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SX

 1
85710B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR RH
85720-20120

AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SX

 1
85720-20120

AT175..SGEXT;AT170,171,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX

 1
85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH
85720-20080

AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SX

 1
85720B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR LH
85710-20100

AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SX

 1
85710-20100

AT175..SGEXT;AT170,171,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX

 1
Linked diagrams
8401
