AT170-CEMEU (1988)
Toyota Carina Ff
Production
May 1988
-
May 1990
Engine
5AF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8805-9005)SED

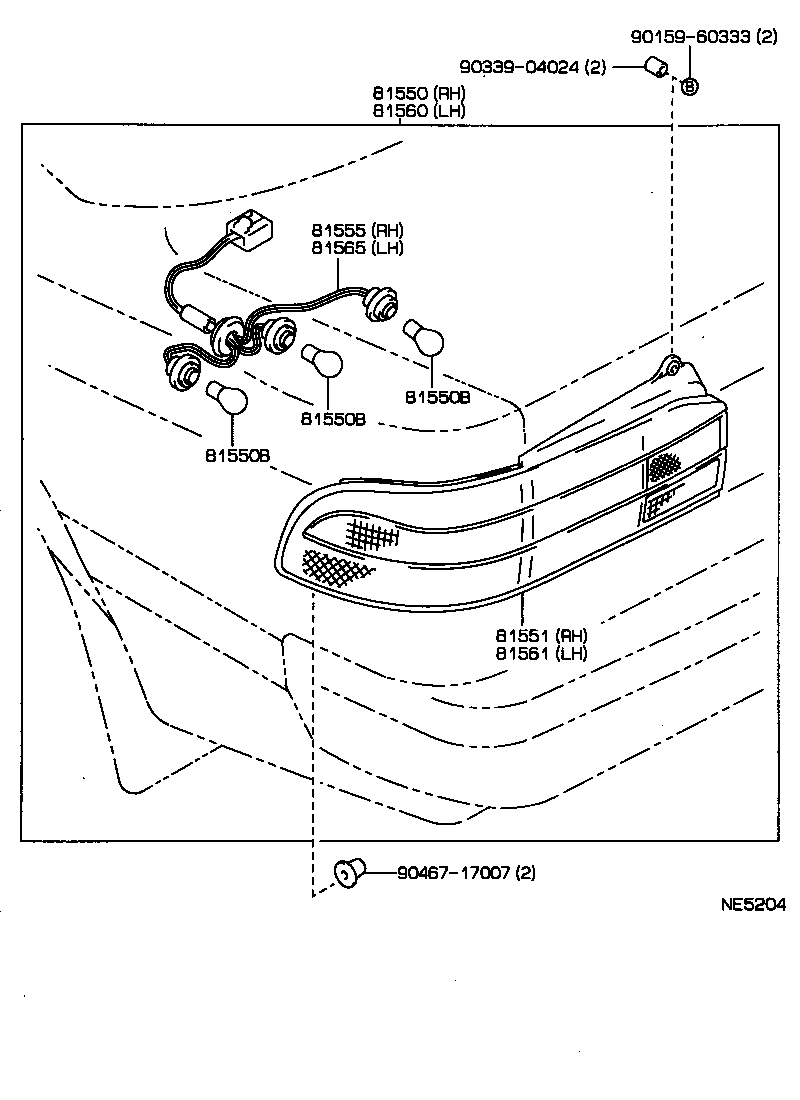

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-2B020 |
AT17#,CT170,ST170..SED |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
AT17#,CT17#,ET176,ST170 12V 21W |
4 | ||
| 99132-21210 |
AT17#,CT17#,ET176,ST170 12V 21/5W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
AT17#,CT17#,ET176,ST170 12V 21W |
4 | ||
| 99132-21210 |
AT17#,CT17#,ET176,ST170 12V 21/5W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
AT17#,CT17#,ET176,ST170 12V 21W |
4 | ||
| 99132-21210 |
AT17#,CT17#,ET176,ST170 12V 21/5W |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-2B020 |
AT17#,CT170,ST170..SED |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-2B020 |
AT17#,CT170,ST170..SED |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-20850 |
AT17#,CT170,ST170..SED |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-20850 |
AT17#,CT170,ST170..SED |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-2B020 |
AT17#,CT170,ST170..SED |
1 | ||
| Common parts | ||||
| 90159-60333 | ||||
| 90339-04024 | ||||
| 90467-17007 | ||||
