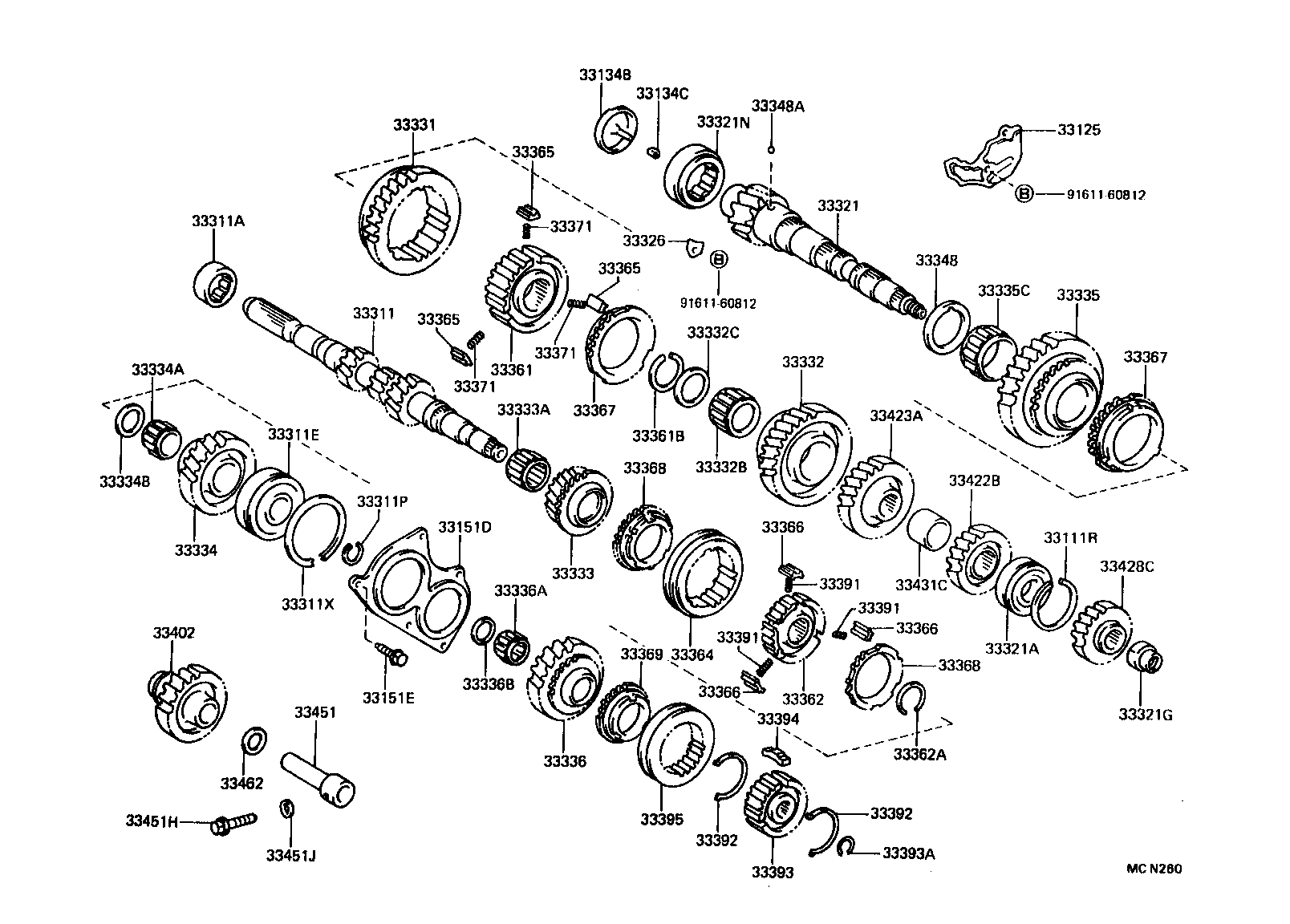

AT170-CEMEK (1990)
Toyota Carina Ff
(9104- )AT170,171..5F
C50,C51,C52
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111R - RING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90520-57002 |
AT170,171,ET176..MTM |
1 | ||
| 33125 - RECEIVER, MANUAL TRANSAXLE CASE | ||||
| 33125-12010 |
AT170,171,ET176..MTM |
1 | ||
| 33134B - COVER, OUTPUT SHAFT(MTM) | ||||
| 33134-12021 |
AT170,171,ET176..MTM |
1 | ||
| 33134C - PIN, SLOTTED SPRING(FOR OUTPUT SHAFT) | ||||
| 90254-10001 |
AT170,171,CT17#,ET176,ST170..MTM |
1 | ||
| 33151D - RETAINER, BEARING, REAR(MTM) | ||||
| 33151-12020 |
AT170,171,ET176..MTM |
1 | ||
| 33151E - BOLT(FOR REAR BEARING RETAINER) | ||||
| 91611-60820 |
AT170,171,ET176..MTM |
5 | ||
| 91611-60820 |
AT170,171,ET176..MTM |
3 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-12061 |
AT170,171,ET176..5F..(S,SE,SG,SGEXT,SV) |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-25021 |
AT170,171,ET176..MTM |
1 | ||
| 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) | ||||
| 90363-25048 |
AT170,171,ET176..MTM |
1 | ||
| 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-22006 |
AT170,171,ET176..MTM 厚さ=2.29−2.34,ﾏｰｸ A |
1 | ||
| 90520-22011 |
AT170,171,ET176..MTM 厚さ=2.59−2.64,ﾏｰｸ F |
1 | ||
| 90520-22007 |
AT170,171,ET176..MTM 厚さ=2.35−2.40,ﾏｰｸ B |
1 | ||
| 90520-22009 |
AT170,171,ET176..MTM 厚さ=2.47−2.52,ﾏｰｸ D |
1 | ||
| 90520-22010 |
AT170,171,ET176..MTM 厚さ=2.53−2.58,ﾏｰｸ E |
1 | ||
| 90520-22008 |
AT170,171,ET176..MTM 厚さ=2.41−2.46,ﾏｰｸ C |
1 | ||
| 33311X - RING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-64002 |
AT170,171,ET176..MTM |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-12051 |
AT170..MTM |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-25029 |
AT170,171,ET176..MTM |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-18005 |
AT170,171,ET176..MTM |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90365-33005 |
AT170,171,ET176..MTM |
1 | ||
| 33326 - PLATE, BEARING LOCK | ||||
| 33326-12010 |
AT170,171,ET176..MTM |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-12020 |
AT170,171,ET176..MTM |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-12010 |
AT170,171,ET176..MTM |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-32014 |
AT170,171,ET176..MTM |
1 | ||
| 33332C - SPACER (FOR 2ND GEAR BEARING) | ||||
| 90560-32008 |
AT170,171,ET176..MTM |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-12020 |
AT170,171,ET176..MTM..(DX,GLIM,SE,SG,SGEXT,STD,SV) |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-31002 |
AT170,171,ET176..MTM |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-12011 |
AT170,171,ET176..MTM..(DX,GLIM,SE,SG,SGEXT,STD,SV) |
1 | ||
| 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) | ||||
| 90364-29002 |
AT170,171,ET176..MTM |
1 | ||
| 33334B - SPACER (FOR 4TH GEAR BEARING) | ||||
| 90560-29001 |
AT170,171,ET176..MTM |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-12010 |
AT170,171,ET176..MTM..(DX,S,SE,SG,SGEXT,STD,SV) |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-38007 |
AT170,171,ET176..MTM |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-12050 |
AT170,171..5F..EFI |
1 | ||
| 33036-12011 |
AT170,171,ET176..5F..(GLIM,SE,SG,SGEXT,SV) |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-24006 |
AT170,171,ET176..5F |
1 | ||
| 33336B - SPACER (FOR 5TH GEAR BEARING) | ||||
| 90560-25006 |
AT170,171,ET176..5F |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| 33348-12010 |
AT170,171,ET176..MTM |
1 | ||
| 33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER) | ||||
| 90360-05012 |
AT170,171,ET176..MTM |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-12030 |
AT170,171,ET176..MTM |
1 | ||
| 33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1) | ||||
| 90520-29018 |
AT170,171,ET176..MTM 厚さ=2.50−2.55,ﾏｰｸ A |
1 | ||
| 90520-29019 |
AT170,171,ET176..MTM 厚さ=2.56−2.61,ﾏｰｸ B |
1 | ||
| 90520-29020 |
AT170,171,ET176..MTM 厚さ=2.62−2.67,ﾏｰｸ C |
1 | ||
| 90520-29023 |
AT170,171,ET176..MTM 厚さ=2.80−2.85,ﾏｰｸ F |
1 | ||
| 90520-29021 |
AT170,171,ET176..MTM 厚さ=2.68−2.73,ﾏｰｸ D |
1 | ||
| 90520-29022 |
AT170,171,ET176..MTM 厚さ=2.74−2.79,ﾏｰｸ E |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-12020 |
AT170,171,ET176..MTM |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-27050 |
AT170,171,ET176..MTM 厚さ=2.54−2.59,ﾏｰｸ 4 |
1 | ||
| 90520-27047 |
AT170,171,ET176..MTM 厚さ=2.36−2.41,ﾏｰｸ 1 |
1 | ||
| 90520-27051 |
AT170,171,ET176..MTM 厚さ=2.60−2.65,ﾏｰｸ 5 |
1 | ||
| 90520-27046 |
AT170,171,ET176..MTM 厚さ=2.30−2.35,ﾏｰｸ 0 |
1 | ||
| 90520-27049 |
AT170,171,ET176..MTM 厚さ=2.48−2.53,ﾏｰｸ 3 |
1 | ||
| 90520-27048 |
AT170,171,ET176..MTM 厚さ=2.42−2.47,ﾏｰｸ 2 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-12010 |
AT170,171,ET176..MTM |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-12021 |
AT170,171,ET176..MTM |
3 | ||
| 33365-12050 |
AT170,171..MTM |
3 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-12021 |
AT170,171,ET176..MTM |
3 | ||
| 33365-12050 |
AT170,171..MTM |
3 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-12021 |
AT170,171,ET176..MTM |
3 | ||
| 33365-12050 |
AT170,171..MTM |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-12040 |
AT170,171..MTM |
3 | ||
| 33366-12020 |
AT170,171,ET176..MTM |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-12040 |
AT170,171..MTM |
3 | ||
| 33366-12020 |
AT170,171,ET176..MTM |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-12040 |
AT170,171..MTM |
3 | ||
| 33366-12020 |
AT170,171,ET176..MTM |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-12031 |
AT170,171,ET176..MTM |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-12031 |
AT170,171,ET176..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-12020 |
AT170,171,ET176..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-12020 |
AT170,171,ET176..MTM |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33369-12020 |
AT170,171,ET176..5F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-12020 |
AT170,171,ET176..MTM |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-12020 |
AT170,171,ET176..MTM |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-12020 |
AT170,171,ET176..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-12020 |
AT170,171,ET176..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-12020 |
AT170,171,ET176..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-12020 |
AT170,171,ET176..MTM |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33391-12030 |
AT170,171,ET176..5F |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33391-12030 |
AT170,171,ET176..5F |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-12010 |
AT170,171,ET176..5F |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-18004 |
AT170,171,ET176..5F 厚さ=2.37−2.42,ﾏｰｸ C |
1 | ||
| 90520-18008 |
AT170,171,ET176..5F 厚さ=2.55−2.60,ﾏｰｸ F |
1 | ||
| 90520-18009 |
AT170,171,ET176..5F 厚さ=2.61−2.66,ﾏｰｸ G |
1 | ||
| 90520-18002 |
AT170,171,ET176..5F 厚さ=2.25−2.30,ﾏｰｸ A |
1 | ||
| 90520-18006 |
AT170,171,ET176..5F 厚さ=2.43−2.48,ﾏｰｸ D |
1 | ||
| 90520-18003 |
AT170,171,ET176..5F 厚さ=2.31−2.36,ﾏｰｸ B |
1 | ||
| 90520-18007 |
AT170,171,ET176..5F 厚さ=2.49−2.54,ﾏｰｸ E |
1 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-12011 |
AT170,171,ET176..5F |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-12010 |
AT170,171,ET176..5F |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-12021 |
AT170,171,ET176..MTM |
1 | ||
| 33422B - GEAR, 4TH DRIVEN | ||||
| 33422-12010 |
AT170,171,ET176..MTM..(DX,GLIM,SE,SG,SGEXT,STD,SV) |
1 | ||
| 33423A - GEAR, 3RD DRIVEN | ||||
| 33423-12010 |
AT170,171,ET176..MTM..(DX,GLIM,SE,SG,SGEXT,STD,SV) |
1 | ||
| 33428C - GEAR, 5TH DRIVEN | ||||
| 33428-12010 |
AT170,171,ET176..5F..(GLIM,SE,SG,SGEXT,SV) |
1 | ||
| 33431C - SPACER, OUTPUT GEAR | ||||
| 33431-12010 |
AT170,171,ET176..MTM |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-12021 |
AT170,171,ET176..MTM |
1 | ||
| 33451H - BOLT (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90109-08097 |
AT170,171,ET176..MTM |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
AT17#,ET176..MTM |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-12010 |
AT170,171,ET176..MTM |
1 | ||
| Common parts | ||||
| 91611-60812 | ||||
(8805-9104)AT170,171,ET176..5F ; (9104- )ET176..5F
C50,C51,C52
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111R - RING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90520-57002 |
AT170,171,ET176..MTM |
1 | ||
| 33125 - RECEIVER, MANUAL TRANSAXLE CASE | ||||
| 33125-12010 |
AT170,171,ET176..MTM |
1 | ||
| 33134B - COVER, OUTPUT SHAFT(MTM) | ||||
| 33134-12021 |
AT170,171,ET176..MTM |
1 | ||
| 33134C - PIN, SLOTTED SPRING(FOR OUTPUT SHAFT) | ||||
| 90254-10001 |
AT170,171,CT17#,ET176,ST170..MTM |
1 | ||
| 33151D - RETAINER, BEARING, REAR(MTM) | ||||
| 33151-12020 |
AT170,171,ET176..MTM |
1 | ||
| 33151E - BOLT(FOR REAR BEARING RETAINER) | ||||
| 91611-60820 |
AT170,171,ET176..MTM |
5 | ||
| 91611-60820 |
AT170,171,ET176..MTM |
3 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-12061 |
AT170,171,ET176..5F..(S,SE,SG,SGEXT,SV) |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-25021 |
AT170,171,ET176..MTM |
1 | ||
| 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) | ||||
| 90363-25048 |
AT170,171,ET176..MTM |
1 | ||
| 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-22006 |
AT170,171,ET176..MTM 厚さ=2.29−2.34,ﾏｰｸ A |
1 | ||
| 90520-22011 |
AT170,171,ET176..MTM 厚さ=2.59−2.64,ﾏｰｸ F |
1 | ||
| 90520-22007 |
AT170,171,ET176..MTM 厚さ=2.35−2.40,ﾏｰｸ B |
1 | ||
| 90520-22009 |
AT170,171,ET176..MTM 厚さ=2.47−2.52,ﾏｰｸ D |
1 | ||
| 90520-22010 |
AT170,171,ET176..MTM 厚さ=2.53−2.58,ﾏｰｸ E |
1 | ||
| 90520-22008 |
AT170,171,ET176..MTM 厚さ=2.41−2.46,ﾏｰｸ C |
1 | ||
| 33311X - RING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-64002 |
AT170,171,ET176..MTM |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-12051 |
AT170..MTM |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-25029 |
AT170,171,ET176..MTM |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-18005 |
AT170,171,ET176..MTM |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90365-33005 |
AT170,171,ET176..MTM |
1 | ||
| 33326 - PLATE, BEARING LOCK | ||||
| 33326-12010 |
AT170,171,ET176..MTM |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-12020 |
AT170,171,ET176..MTM |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-12010 |
AT170,171,ET176..MTM |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-32014 |
AT170,171,ET176..MTM |
1 | ||
| 33332C - SPACER (FOR 2ND GEAR BEARING) | ||||
| 90560-32008 |
AT170,171,ET176..MTM |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-12020 |
AT170,171,ET176..MTM..(DX,GLIM,SE,SG,SGEXT,STD,SV) |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-31002 |
AT170,171,ET176..MTM |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-12011 |
AT170,171,ET176..MTM..(DX,GLIM,SE,SG,SGEXT,STD,SV) |
1 | ||
| 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) | ||||
| 90364-29002 |
AT170,171,ET176..MTM |
1 | ||
| 33334B - SPACER (FOR 4TH GEAR BEARING) | ||||
| 90560-29001 |
AT170,171,ET176..MTM |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-12010 |
AT170,171,ET176..MTM..(DX,S,SE,SG,SGEXT,STD,SV) |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-38007 |
AT170,171,ET176..MTM |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-12050 |
AT170,171..5F..EFI |
1 | ||
| 33036-12011 |
AT170,171,ET176..5F..(GLIM,SE,SG,SGEXT,SV) |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-24006 |
AT170,171,ET176..5F |
1 | ||
| 33336B - SPACER (FOR 5TH GEAR BEARING) | ||||
| 90560-25006 |
AT170,171,ET176..5F |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| 33348-12010 |
AT170,171,ET176..MTM |
1 | ||
| 33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER) | ||||
| 90360-05012 |
AT170,171,ET176..MTM |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-12030 |
AT170,171,ET176..MTM |
1 | ||
| 33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1) | ||||
| 90520-29018 |
AT170,171,ET176..MTM 厚さ=2.50−2.55,ﾏｰｸ A |
1 | ||
| 90520-29019 |
AT170,171,ET176..MTM 厚さ=2.56−2.61,ﾏｰｸ B |
1 | ||
| 90520-29020 |
AT170,171,ET176..MTM 厚さ=2.62−2.67,ﾏｰｸ C |
1 | ||
| 90520-29023 |
AT170,171,ET176..MTM 厚さ=2.80−2.85,ﾏｰｸ F |
1 | ||
| 90520-29021 |
AT170,171,ET176..MTM 厚さ=2.68−2.73,ﾏｰｸ D |
1 | ||
| 90520-29022 |
AT170,171,ET176..MTM 厚さ=2.74−2.79,ﾏｰｸ E |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-12020 |
AT170,171,ET176..MTM |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-27050 |
AT170,171,ET176..MTM 厚さ=2.54−2.59,ﾏｰｸ 4 |
1 | ||
| 90520-27047 |
AT170,171,ET176..MTM 厚さ=2.36−2.41,ﾏｰｸ 1 |
1 | ||
| 90520-27051 |
AT170,171,ET176..MTM 厚さ=2.60−2.65,ﾏｰｸ 5 |
1 | ||
| 90520-27046 |
AT170,171,ET176..MTM 厚さ=2.30−2.35,ﾏｰｸ 0 |
1 | ||
| 90520-27049 |
AT170,171,ET176..MTM 厚さ=2.48−2.53,ﾏｰｸ 3 |
1 | ||
| 90520-27048 |
AT170,171,ET176..MTM 厚さ=2.42−2.47,ﾏｰｸ 2 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-12010 |
AT170,171,ET176..MTM |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-12021 |
AT170,171,ET176..MTM |
3 | ||
| 33365-12050 |
AT170,171..MTM |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-12040 |
AT170,171..MTM |
3 | ||
| 33366-12020 |
AT170,171,ET176..MTM |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-12031 |
AT170,171,ET176..MTM |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-12031 |
AT170,171,ET176..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-12020 |
AT170,171,ET176..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-12020 |
AT170,171,ET176..MTM |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33369-12020 |
AT170,171,ET176..5F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-12020 |
AT170,171,ET176..MTM |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-12020 |
AT170,171,ET176..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-12020 |
AT170,171,ET176..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-12020 |
AT170,171,ET176..MTM |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33391-12030 |
AT170,171,ET176..5F |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33391-12030 |
AT170,171,ET176..5F |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-12010 |
AT170,171,ET176..5F |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-18004 |
AT170,171,ET176..5F 厚さ=2.37−2.42,ﾏｰｸ C |
1 | ||
| 90520-18008 |
AT170,171,ET176..5F 厚さ=2.55−2.60,ﾏｰｸ F |
1 | ||
| 90520-18009 |
AT170,171,ET176..5F 厚さ=2.61−2.66,ﾏｰｸ G |
1 | ||
| 90520-18002 |
AT170,171,ET176..5F 厚さ=2.25−2.30,ﾏｰｸ A |
1 | ||
| 90520-18006 |
AT170,171,ET176..5F 厚さ=2.43−2.48,ﾏｰｸ D |
1 | ||
| 90520-18003 |
AT170,171,ET176..5F 厚さ=2.31−2.36,ﾏｰｸ B |
1 | ||
| 90520-18007 |
AT170,171,ET176..5F 厚さ=2.49−2.54,ﾏｰｸ E |
1 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-12011 |
AT170,171,ET176..5F |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-12010 |
AT170,171,ET176..5F |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-12021 |
AT170,171,ET176..MTM |
1 | ||
| 33422B - GEAR, 4TH DRIVEN | ||||
| 33422-12010 |
AT170,171,ET176..MTM..(DX,GLIM,SE,SG,SGEXT,STD,SV) |
1 | ||
| 33423A - GEAR, 3RD DRIVEN | ||||
| 33423-12010 |
AT170,171,ET176..MTM..(DX,GLIM,SE,SG,SGEXT,STD,SV) |
1 | ||
| 33428C - GEAR, 5TH DRIVEN | ||||
| 33428-12010 |
AT170,171,ET176..5F..(GLIM,SE,SG,SGEXT,SV) |
1 | ||
| 33431C - SPACER, OUTPUT GEAR | ||||
| 33431-12010 |
AT170,171,ET176..MTM |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-12021 |
AT170,171,ET176..MTM |
1 | ||
| 33451H - BOLT (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90109-08097 |
AT170,171,ET176..MTM |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
AT17#,ET176..MTM |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-12010 |
AT170,171,ET176..MTM |
1 | ||
| Common parts | ||||
| 91611-60812 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
