AT170-CEKNU (1988)
Toyota Carina Ff

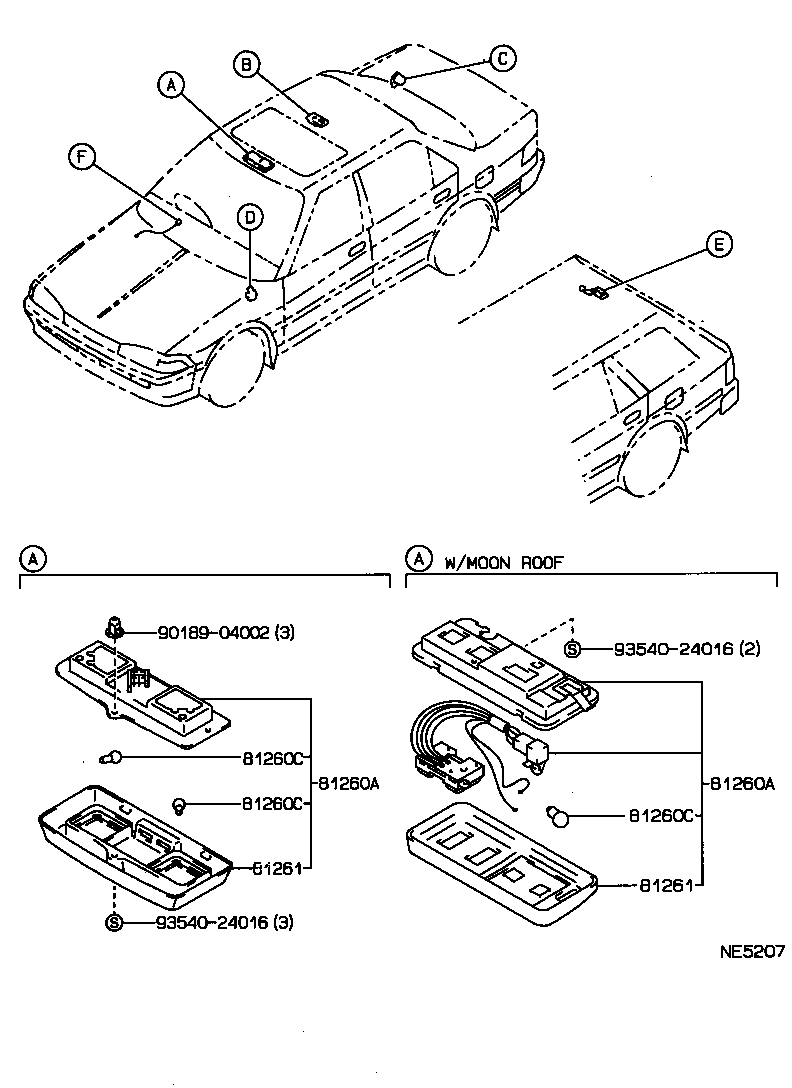

ILLUST NO. 1 OF 2(8805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81260A - LAMP ASSY, MAP | ||||
| 81260-2015004 |
AT170,171..S,SE,SG;AT175,ST170..SGEXT BLUE,TRIM8# |
1 | ||
| 81260-2015003 |
AT170,171..S,SE,SG,SV;AT175,ST170..SGEXT,SX GRAY,TRIM1# |
1 | ||
| 81260-2015006 |
AT170,171..S,SE,SG,SV;AT175,ST170..SGEXT,SX SABLE,TRIM4# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-2015004 |
AT170,171..S,SE,SG;AT175,ST170..SGEXT BLUE,TRIM8# |
1 | ||
| 81260-2015003 |
AT170,171..S,SE,SG,SV;AT175,ST170..SGEXT,SX GRAY,TRIM1# |
1 | ||
| 81260-2015006 |
AT170,171..S,SE,SG,SV;AT175,ST170..SGEXT,SX SABLE,TRIM4# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX 12V 10W |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX 12V 10W |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX 12V 10W |
1 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-2015003 |
AT170,171..S,SE,SG,SV;AT175,ST170..SGEXT,SX GRAY,TRIM1# |
1 | ||
| 81261-2015004 |
AT170,171..S,SE,SG;AT175,ST170..SGEXT BLUE,TRIM8# |
1 | ||
| 81261-2015006 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 81261-2015006 |
AT170,171..S,SE,SG,SV;AT175,ST170..SGEXT,SX SABLE,TRIM4# |
1 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-2015003 |
AT170,171..S,SE,SG,SV;AT175,ST170..SGEXT,SX GRAY,TRIM1# |
1 | ||
| 81261-2015004 |
AT170,171..S,SE,SG;AT175,ST170..SGEXT BLUE,TRIM8# |
1 | ||
| 81261-2015006 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 81261-2015006 |
AT170,171..S,SE,SG,SV;AT175,ST170..SGEXT,SX SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 90189-04002 | ||||
| 93540-24016 | ||||

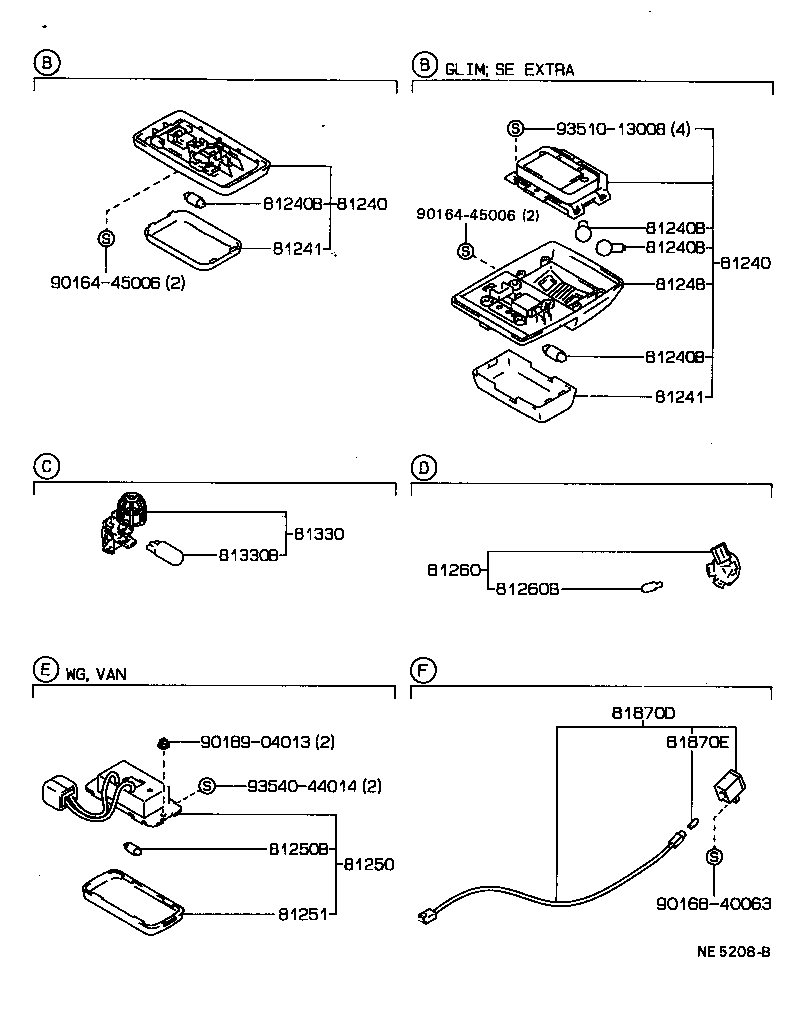

ILLUST NO. 2 OF 2(8805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-1202004 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..S,SE,SG,SGEXT ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT BLUE,TRIM8# |
1 | ||
| 81240-1202006 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4# |
1 | ||
| 81240-1202003 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT GRAY,TRIM1# |
1 | ||
| 81240-1203006 |
AT17#,CT170,ST170..S,SE,SG,SGEXT SABLE,TRIM4# |
1 | ||
| 81240-1203003 |
AT17#,CT170,ST170..DX,S,SE,SG,SGEXT LIGHT GRAY,TRIM1# |
1 | ||
| 81240-1203004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT LIGHT BLUE,TRIM8# |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-1202004 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..S,SE,SG,SGEXT ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT BLUE,TRIM8# |
1 | ||
| 81240-1202006 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4# |
1 | ||
| 81240-1202003 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT GRAY,TRIM1# |
1 | ||
| 81240-1203006 |
AT17#,CT170,ST170..S,SE,SG,SGEXT SABLE,TRIM4# |
1 | ||
| 81240-1203003 |
AT17#,CT170,ST170..DX,S,SE,SG,SGEXT LIGHT GRAY,TRIM1# |
1 | ||
| 81240-1203004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT LIGHT BLUE,TRIM8# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
AT17#,CT17#,ET176,ST170 12V 10W |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
AT17#,CT17#,ET176,ST170 12V 10W |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
AT17#,CT17#,ET176,ST170 12V 10W |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
AT17#,CT17#,ET176,ST170 12V 10W |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-12020 |
AT17#,CT170,ST170..DX,S,SE,SG,SGEXT |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-12020 |
AT17#,CT170,ST170..DX,S,SE,SG,SGEXT |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81260-32071 |
AT17#,CT170,ST170..GLIM,SE |
1 | ||
| 81260B - BULB(FOR GLOVE BOX) | ||||
| 90981-11018 |
AT17#,CT170,ST170..GLIM,SE 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-30090 |
AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-11020 |
AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT 12V 3.8W |
1 | ||
| 81870D - LAMP ASSY, KEY CYLINDER | ||||
| 81850-20190 |
AT170,CT170..SG ﾏｲ ﾛ-ﾄﾞ |
1 | ||
| 81870E - BULB, KEY CYLINDER LAMP | ||||
| 90981-11014 |
AT170,CT170..SG 14V 1.4W |
1 | ||
| Common parts | ||||
| 90164-45006 | ||||
| 90168-40063 | ||||
| 90189-04013 | ||||
| 93510-13008 | ||||
| 93540-44014 | ||||
