AT170-CEKNK (1990)
Toyota Carina Ff
Production
May 1990
-
Aug 1992
Engine
5AFE
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9005- )4AFHE,5AFE

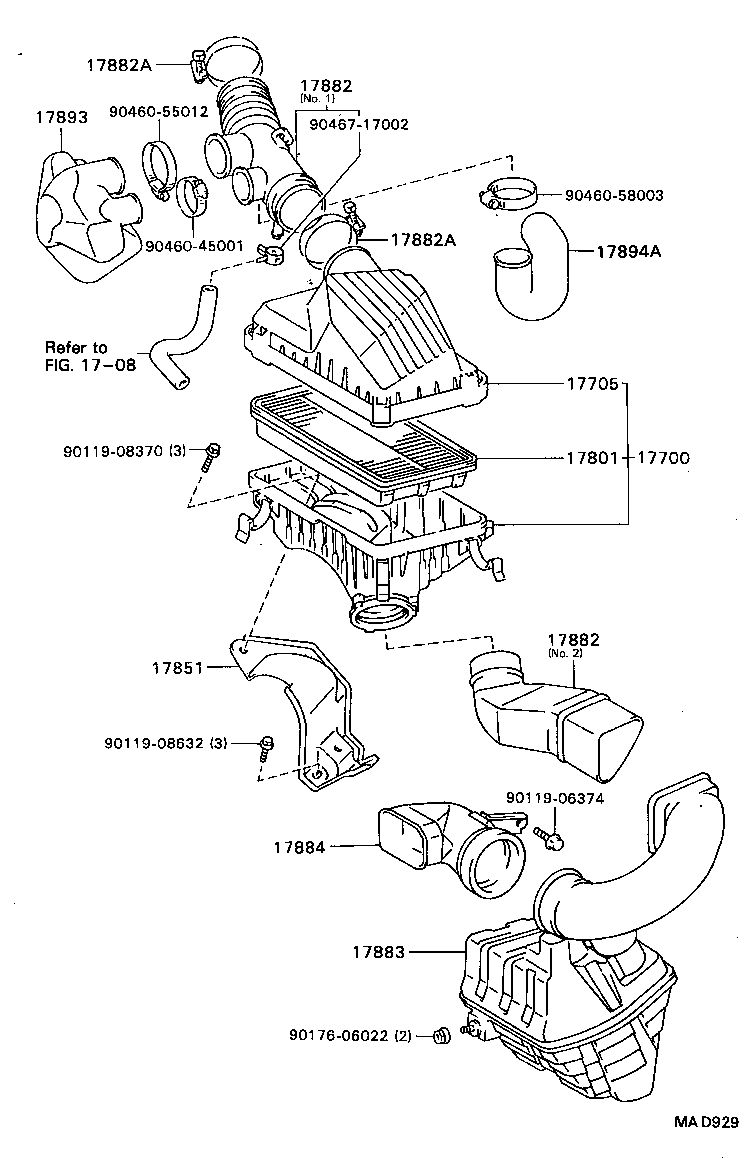

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-15260 |
5AF..AT170 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-16260 |
5AF..AT170 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-15060 |
5AF..AT170 |
1 | ||
| 17851 - BRACKET, AIR CLEANER SUPPORT | ||||
| 17851-16020 |
4AF#,4AGE,5AFE..AT17# |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17880-16020 |
5AF..AT170 NO.1 |
1 | ||
| 17881-15140 |
5AF..AT170 |
1 | ||
| 17882-16110 |
4AF#,4AGE,5AFE..AT17# NO.2 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17880-16020 |
5AF..AT170 NO.1 |
1 | ||
| 17881-15140 |
5AF..AT170 |
1 | ||
| 17882-16110 |
4AF#,4AGE,5AFE..AT17# NO.2 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 17786-15010 |
5AF..AT170 |
2 | ||
| 96111-10730 |
4AF#,5AFE..AT17# |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 17786-15010 |
5AF..AT170 |
2 | ||
| 96111-10730 |
4AF#,5AFE..AT17# |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-16050 |
5AF..AT170 |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17884-74030 |
4AF#,4AGE,5AFE..AT17# |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-16070 |
4AFHE,5AFE..AT170,171 |
1 | ||
| Common parts | ||||
| 90119-06374 | ||||
| 90119-08370 | ||||
| 90119-08632 | ||||
| 90176-06022 | ||||
| 90460-45001 | ||||
| 90460-55012 | ||||
| 90460-58003 | ||||
| 90467-17002 | ||||
| Linked diagrams | ||||
| 1708 | ||||
