AT170-CEKMK (1990)

Toyota Carina Ff

Production May 1990 - Aug 1992
Engine 5AFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )AT170,ET176

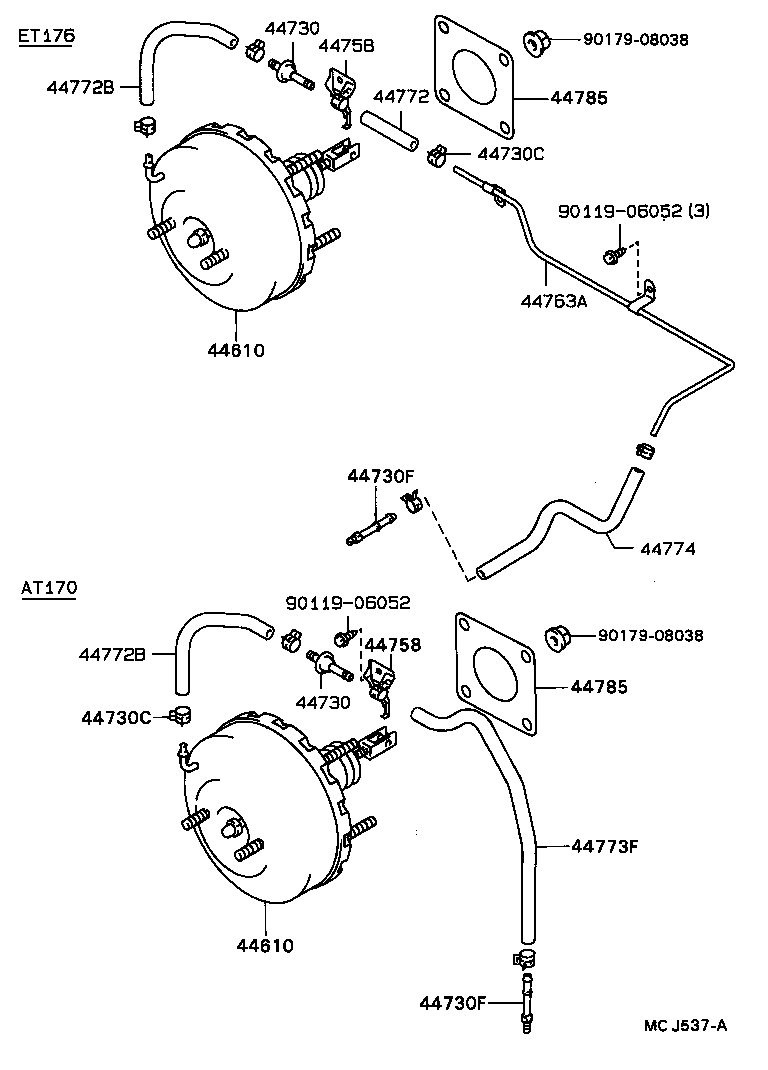

Click highlighted areas on diagram

diagram 44610 44610 44730 44730 44730C 44730C 44730F 44730F 44758 44758 44763A 44772 44772B 44772B 44773F 44774 44785 44785 9011906052 9011906052 9017908038 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-2B380

AT170..SED

 1
44610-2B280

AT170,ST170..SE,SG,SGEXT

ｱﾘ(*66) & 13ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ

 1
44610-2B140

AT170,171..S,SV;CT17#,ET176,ST170

 1
44610 - BOOSTER ASSY, BRAKE
44610-2B380

AT170..SED

 1
44610-2B280

AT170,ST170..SE,SG,SGEXT

ｱﾘ(*66) & 13ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ

 1
44610-2B140

AT170,171..S,SV;CT17#,ET176,ST170

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AT17#,ET176,ST170

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AT17#,ET176,ST170

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

AT17#,ST170

 3
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

AT17#,ST170

 3
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

AT170,ST170

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

AT170,ST170

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20200

AT17#,ET176,ST170

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20200

AT17#,ET176,ST170

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-20250

AT170,ST170..SE,SG,SGEXT

ｱﾘ(*66)

 1
44772-20230

ST170..CI;AT170,171,ET176

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-20250

AT170,ST170..SE,SG,SGEXT

ｱﾘ(*66)

 1
44772-20230

ST170..CI;AT170,171,ET176

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-20510

AT170

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

AT17#,CT17#,ET176,ST170

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

AT17#,CT17#,ET176,ST170

 1
Common parts
90119-06052
90179-08038
