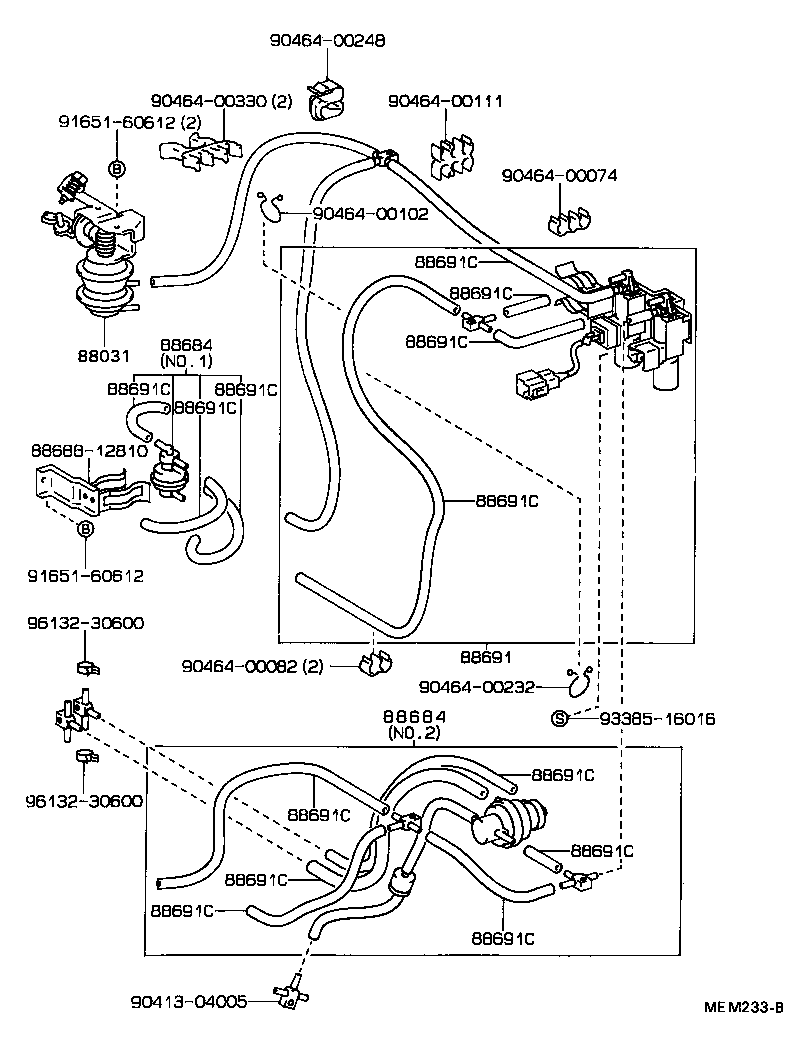

AT170-CEKDU (1988)
Toyota Carina Ff
(8805-9005)AT170 ; (9005- )AT170
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-12181 |
AT170..DX,SE,SV |
1 | ||
| 88031-12180 |
AT170..DX,SE,SV |
1 | ||
| 88684 - VALVE, VACUUM | ||||
| 88684-22020 |
AT170..DX,SE,SV NO.1 |
1 | ||
| 88684-22040 |
AT170..MTM..(DX,SE,SV) NO.2 |
1 | ||
| 88684 - VALVE, VACUUM | ||||
| 88684-22020 |
AT170..DX,SE,SV NO.1 |
1 | ||
| 88684-22040 |
AT170..MTM..(DX,SE,SV) NO.2 |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-2B170 |
AT170..MTM..(DX,SE,SV) |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
AT170..DX,SE,SV *H,L=300 |
1 | ||
| 90999-92002 |
AT170..4FC..(DX,SV);AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92002 |
AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92003 |
AT170..DX,SE,SV 長さ=600 |
1 | ||
| 90999-92004 |
AT170..4FC..(DX,SG,SV);AT170..MTM..(DX,SE,SV) 長さ=950 |
1 | ||
| 90999-92006 |
AT170..MTM..(DX,SE,SV) 長さ=1300 |
1 | ||
| 90999-92003 |
ET176;AT170..MTM..(DX,SE,SV)..CBR 長さ=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
AT170..DX,SE,SV *H,L=300 |
1 | ||
| 90999-92002 |
AT170..4FC..(DX,SV);AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92002 |
AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92003 |
AT170..DX,SE,SV 長さ=600 |
1 | ||
| 90999-92004 |
AT170..4FC..(DX,SG,SV);AT170..MTM..(DX,SE,SV) 長さ=950 |
1 | ||
| 90999-92006 |
AT170..MTM..(DX,SE,SV) 長さ=1300 |
1 | ||
| 90999-92003 |
ET176;AT170..MTM..(DX,SE,SV)..CBR 長さ=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
AT170..DX,SE,SV *H,L=300 |
1 | ||
| 90999-92002 |
AT170..4FC..(DX,SV);AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92002 |
AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92003 |
AT170..DX,SE,SV 長さ=600 |
1 | ||
| 90999-92004 |
AT170..4FC..(DX,SG,SV);AT170..MTM..(DX,SE,SV) 長さ=950 |
1 | ||
| 90999-92006 |
AT170..MTM..(DX,SE,SV) 長さ=1300 |
1 | ||
| 90999-92003 |
ET176;AT170..MTM..(DX,SE,SV)..CBR 長さ=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
AT170..DX,SE,SV *H,L=300 |
1 | ||
| 90999-92002 |
AT170..4FC..(DX,SV);AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92002 |
AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92003 |
AT170..DX,SE,SV 長さ=600 |
1 | ||
| 90999-92004 |
AT170..4FC..(DX,SG,SV);AT170..MTM..(DX,SE,SV) 長さ=950 |
1 | ||
| 90999-92006 |
AT170..MTM..(DX,SE,SV) 長さ=1300 |
1 | ||
| 90999-92003 |
ET176;AT170..MTM..(DX,SE,SV)..CBR 長さ=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
AT170..DX,SE,SV *H,L=300 |
1 | ||
| 90999-92002 |
AT170..4FC..(DX,SV);AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92002 |
AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92003 |
AT170..DX,SE,SV 長さ=600 |
1 | ||
| 90999-92004 |
AT170..4FC..(DX,SG,SV);AT170..MTM..(DX,SE,SV) 長さ=950 |
1 | ||
| 90999-92006 |
AT170..MTM..(DX,SE,SV) 長さ=1300 |
1 | ||
| 90999-92003 |
ET176;AT170..MTM..(DX,SE,SV)..CBR 長さ=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
AT170..DX,SE,SV *H,L=300 |
1 | ||
| 90999-92002 |
AT170..4FC..(DX,SV);AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92002 |
AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92003 |
AT170..DX,SE,SV 長さ=600 |
1 | ||
| 90999-92004 |
AT170..4FC..(DX,SG,SV);AT170..MTM..(DX,SE,SV) 長さ=950 |
1 | ||
| 90999-92006 |
AT170..MTM..(DX,SE,SV) 長さ=1300 |
1 | ||
| 90999-92003 |
ET176;AT170..MTM..(DX,SE,SV)..CBR 長さ=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
AT170..DX,SE,SV *H,L=300 |
1 | ||
| 90999-92002 |
AT170..4FC..(DX,SV);AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92002 |
AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92003 |
AT170..DX,SE,SV 長さ=600 |
1 | ||
| 90999-92004 |
AT170..4FC..(DX,SG,SV);AT170..MTM..(DX,SE,SV) 長さ=950 |
1 | ||
| 90999-92006 |
AT170..MTM..(DX,SE,SV) 長さ=1300 |
1 | ||
| 90999-92003 |
ET176;AT170..MTM..(DX,SE,SV)..CBR 長さ=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
AT170..DX,SE,SV *H,L=300 |
1 | ||
| 90999-92002 |
AT170..4FC..(DX,SV);AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92002 |
AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92003 |
AT170..DX,SE,SV 長さ=600 |
1 | ||
| 90999-92004 |
AT170..4FC..(DX,SG,SV);AT170..MTM..(DX,SE,SV) 長さ=950 |
1 | ||
| 90999-92006 |
AT170..MTM..(DX,SE,SV) 長さ=1300 |
1 | ||
| 90999-92003 |
ET176;AT170..MTM..(DX,SE,SV)..CBR 長さ=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
AT170..DX,SE,SV *H,L=300 |
1 | ||
| 90999-92002 |
AT170..4FC..(DX,SV);AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92002 |
AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92003 |
AT170..DX,SE,SV 長さ=600 |
1 | ||
| 90999-92004 |
AT170..4FC..(DX,SG,SV);AT170..MTM..(DX,SE,SV) 長さ=950 |
1 | ||
| 90999-92006 |
AT170..MTM..(DX,SE,SV) 長さ=1300 |
1 | ||
| 90999-92003 |
ET176;AT170..MTM..(DX,SE,SV)..CBR 長さ=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
AT170..DX,SE,SV *H,L=300 |
1 | ||
| 90999-92002 |
AT170..4FC..(DX,SV);AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92002 |
AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92003 |
AT170..DX,SE,SV 長さ=600 |
1 | ||
| 90999-92004 |
AT170..4FC..(DX,SG,SV);AT170..MTM..(DX,SE,SV) 長さ=950 |
1 | ||
| 90999-92006 |
AT170..MTM..(DX,SE,SV) 長さ=1300 |
1 | ||
| 90999-92003 |
ET176;AT170..MTM..(DX,SE,SV)..CBR 長さ=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
AT170..DX,SE,SV *H,L=300 |
1 | ||
| 90999-92002 |
AT170..4FC..(DX,SV);AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92002 |
AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92003 |
AT170..DX,SE,SV 長さ=600 |
1 | ||
| 90999-92004 |
AT170..4FC..(DX,SG,SV);AT170..MTM..(DX,SE,SV) 長さ=950 |
1 | ||
| 90999-92006 |
AT170..MTM..(DX,SE,SV) 長さ=1300 |
1 | ||
| 90999-92003 |
ET176;AT170..MTM..(DX,SE,SV)..CBR 長さ=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
AT170..DX,SE,SV *H,L=300 |
1 | ||
| 90999-92002 |
AT170..4FC..(DX,SV);AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92002 |
AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92003 |
AT170..DX,SE,SV 長さ=600 |
1 | ||
| 90999-92004 |
AT170..4FC..(DX,SG,SV);AT170..MTM..(DX,SE,SV) 長さ=950 |
1 | ||
| 90999-92006 |
AT170..MTM..(DX,SE,SV) 長さ=1300 |
1 | ||
| 90999-92003 |
ET176;AT170..MTM..(DX,SE,SV)..CBR 長さ=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
AT170..DX,SE,SV *H,L=300 |
1 | ||
| 90999-92002 |
AT170..4FC..(DX,SV);AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92002 |
AT170..MTM..(DX,SE,SV) *H,L=300 |
1 | ||
| 90999-92003 |
AT170..DX,SE,SV 長さ=600 |
1 | ||
| 90999-92004 |
AT170..4FC..(DX,SG,SV);AT170..MTM..(DX,SE,SV) 長さ=950 |
1 | ||
| 90999-92006 |
AT170..MTM..(DX,SE,SV) 長さ=1300 |
1 | ||
| 90999-92003 |
ET176;AT170..MTM..(DX,SE,SV)..CBR 長さ=600 |
1 | ||
| Common parts | ||||
| 88688-12810 | ||||
| 90413-04005 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00102 | ||||
| 90464-00111 | ||||
| 90464-00232 | ||||
| 90464-00248 | ||||
| 90464-00330 | ||||
| 91651-60612 | ||||
| 93385-16016 | ||||
| 96132-30600 | ||||
