AT170-CEKDU (1988)

Toyota Carina Ff

Production May 1988 - May 1990
Engine 5AF
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )GLIM,SE

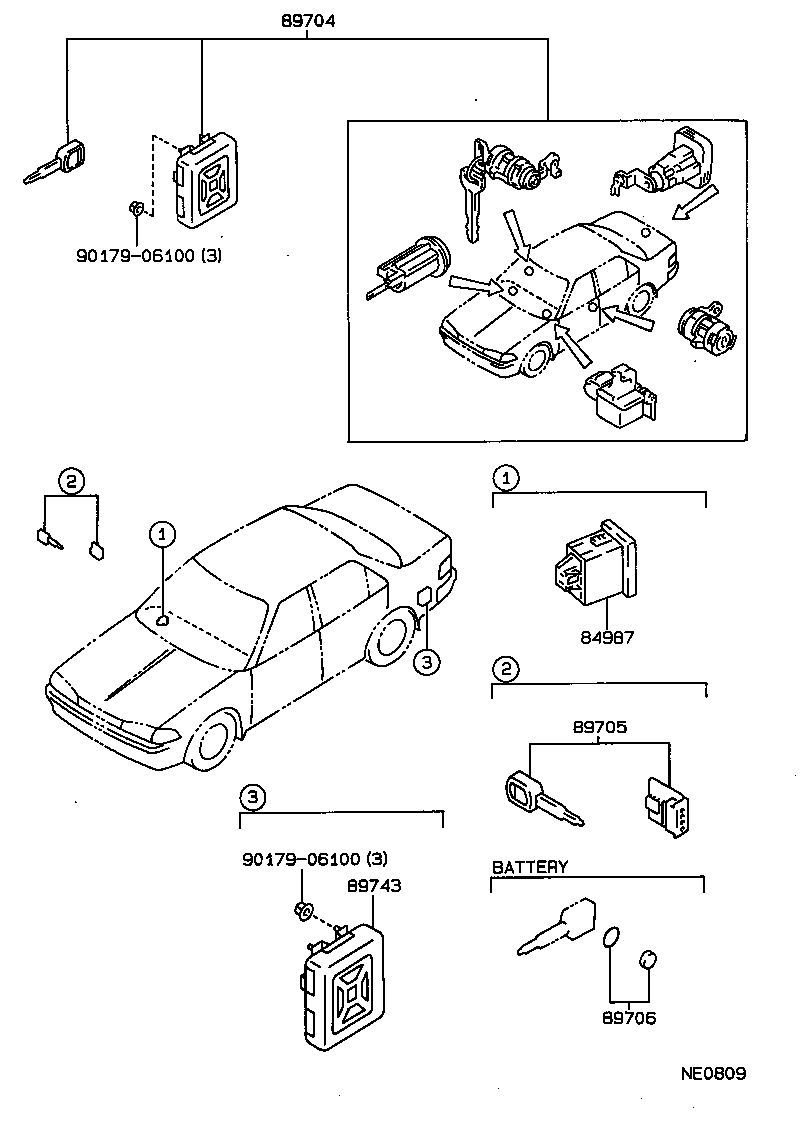

Click highlighted areas on diagram

diagram 84987 89704 89705 89706 89743 9017906100 9017906100
Part # Description Qty Price
84987 - SWITCH, WIRELESS DOOR LOCK MAIN
84987-20010

ST170..SE..CI;AT17#,CT170..GLIM,SE

 1
89704 - CONTROL SET, WIRELESS DOOR LOCK
89704-20060

AT170,171,ST170..GLIM,SE

ｱﾘ(*66)

 1
89704-20050

AT170,CT170,ST170..SE

 1
89704-20050

AT170,171,ST170..GLIM,SE

 1
89705 - TRANSMITTER, DOOR CONTROL
89705-20020

AT17#,CT170,ST170..GLIM,SE

 1
89706 - BATTERY SET, TRANSMITTER
89706-30010

AT17#,CT170,ST170..GLIM,SE

 1
89743 - RECEIVER, DOOR CONTROL
89743-20010

AT17#,CT170,ST170..GLIM,SE

 1
89743-20030

AT170,171,ST170..GLIM,SE

ｱﾘ(*66)

 1
Common parts
90179-06100
