AT170-CEKDU (1988)
Toyota Carina Ff

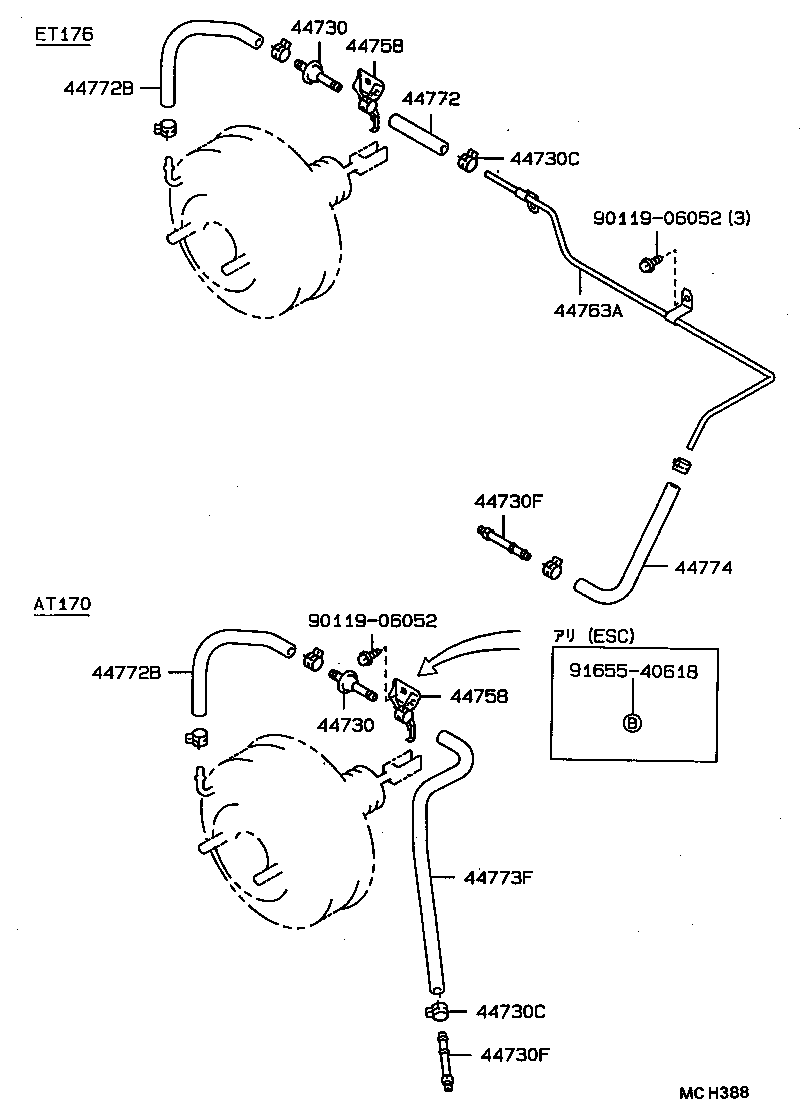

ILLUST NO. 2 OF 2(8805-9005)AT170,ET176
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AT17#,ET176,ST170 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AT17#,ET176,ST170 |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
AT17#,ST170 |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
AT17#,ST170 |
3 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51007 |
AT170,ST170 |
1 | ||
| 90404-51031 |
AT170,ST170 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51007 |
AT170,ST170 |
1 | ||
| 90404-51031 |
AT170,ST170 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20200 |
AT17#,ET176,ST170 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20200 |
AT17#,ET176,ST170 |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-20230 |
ST170..CI;AT170,171,ET176 |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-20230 |
ST170..CI;AT170,171,ET176 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-20510 |
AT170 |
1 | ||
| Common parts | ||||
| 90119-06052 | ||||
| 91655-40618 | ||||
ILLUST NO. 1 OF 2(8805-9005) ; (8808-9005)AT175
ｱﾘ(ESC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-20660 |
AT170..SED |
2 | ||
| 04443-20840 |
AT170,171,ST170..S,SE ｱﾘ(*66) |
2 | ||
| 04443-20680 |
ET176,ST170;AT170,171..S,SV |
2 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12520 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 44606-20800 |
AT175;AT170..SE |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-2B390 |
AT170,171,ST170..S,SE ｱﾘ(*66) & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ |
1 | ||
| 44610-2B380 |
AT170..SED |
1 | ||
| 44610-2B140 |
AT170,171..S,SV;CT17#,ET176,ST170 |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 44621-14030 |
AT175;AT170..SE |
1 | ||
| 44626A - RETAINER, BOOSTER BODY SEAL | ||||
| 44626-60010 |
AT175;AT170,171,ST170..GLIM,S,SE |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
AT175;AT170..SE |
1 | ||
| 44628-28120 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-12630 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 44635-20800 |
AT175;AT170..SE |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-20800 |
AT175;AT170..SE |
1 | ||
| 44642-32030 |
AT170,171..S,SV;CT17#,ET176,ST170 |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-20800 |
AT175;AT170,171,ST170..GLIM,S,SE |
1 | ||
| 44657D - CASE, REACTION DISC | ||||
| 44657-20800 |
AT175;AT170,171,ST170..S,SE |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| Common parts | ||||
| 90179-08083 | ||||
ILLUST NO. 1 OF 2(8805-9005)GLIM,S,SV ; (8805-9005)CT17#,ET176,ST170
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-20660 |
AT170..SED |
2 | ||
| 04443-20840 |
AT170,171,ST170..S,SE ｱﾘ(*66) |
2 | ||
| 04443-20680 |
ET176,ST170;AT170,171..S,SV |
2 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12520 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 44606-20800 |
AT175;AT170..SE |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-2B390 |
AT170,171,ST170..S,SE ｱﾘ(*66) & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ |
1 | ||
| 44610-2B380 |
AT170..SED |
1 | ||
| 44610-2B140 |
AT170,171..S,SV;CT17#,ET176,ST170 |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 44621-14030 |
AT175;AT170..SE |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
AT175;AT170..SE |
1 | ||
| 44628-28120 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-12630 |
CT17#,ET176,ST170;AT170,171..GLIM,S,SV |
1 | ||
| 44635-20800 |
AT175;AT170..SE |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-20800 |
AT175;AT170..SE |
1 | ||
| 44642-32030 |
AT170,171..S,SV;CT17#,ET176,ST170 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 1 OF 2(8805-9005)AT170,171..DX,GLIM,SE,SG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-20660 |
AT170..SED |
2 | ||
| 04443-20840 |
AT170,171,ST170..S,SE ｱﾘ(*66) |
2 | ||
| 04443-20680 |
ET176,ST170;AT170,171..S,SV |
2 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
AT170..SED |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-32020 |
AT170,171..DX,GLIM,SE,SG |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-2B390 |
AT170,171,ST170..S,SE ｱﾘ(*66) & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ |
1 | ||
| 44610-2B380 |
AT170..SED |
1 | ||
| 44610-2B140 |
AT170,171..S,SV;CT17#,ET176,ST170 |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
AT170,171..DX,GLIM,SE,SG |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-32020 |
AT170..SED |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
AT170..SED |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-32040 |
AT170..SED |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
