AT170-CEKDU (1988)

Toyota Carina Ff

Production May 1988 - May 1990
Engine 5AF
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )4AF#,5AF#..AT170,171

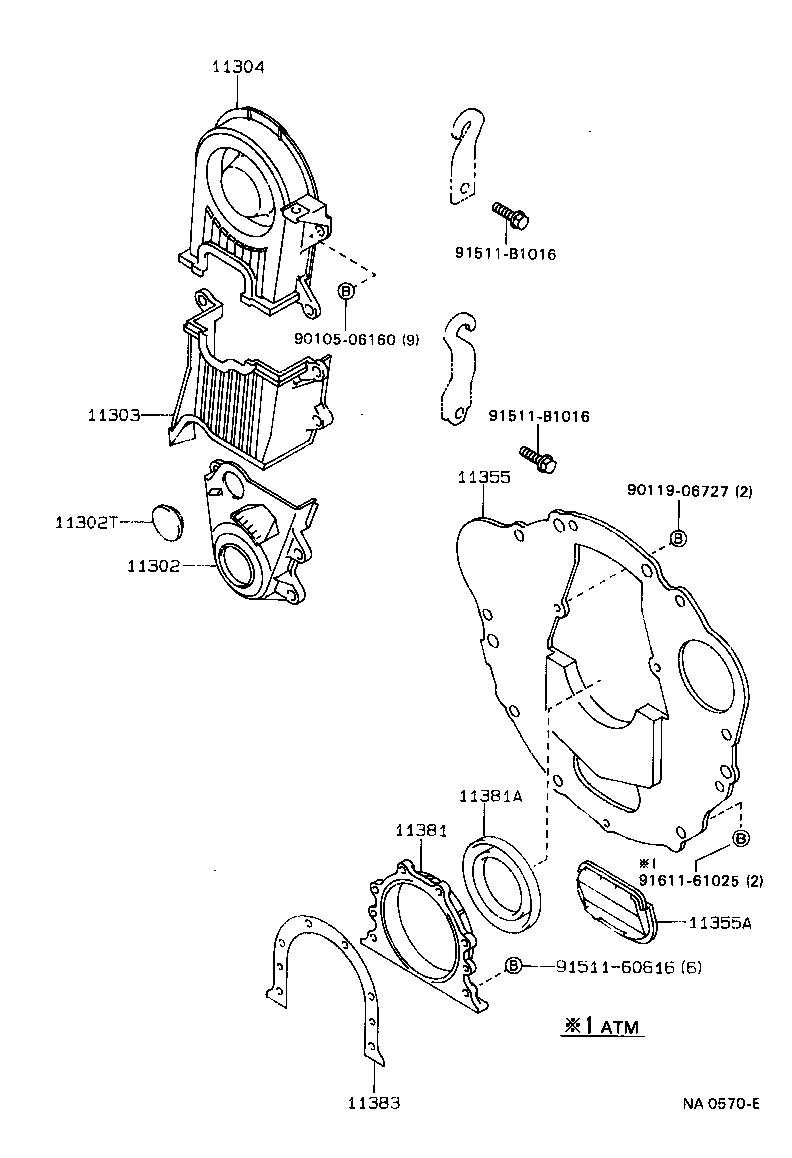

Click highlighted areas on diagram

diagram 11302 11302T 11303 11304 11355 11355A 11381 11381A 11383 9010506160 9011906727 9151160616 91511B1016 91511B1016 9161161025
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-15041

4AF#,5AF#..AT17#

 1
11302T - PLUG, HOLE
90950-01391

4AF#,5AF#..AT17#

 1
11303 - COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
11303-15040

4AF#,5AF#..AT17#

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11304-15020

4AF#,5AF#..AT17#

 1
11355 - PLATE, REAR END
11355-15070

4AF#,5AF#..AT170,171..MTM

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-15010

4AF#,4AGE,5AF#..AT17#

 1
11381A - SEAL, ENGINE REAR OIL
90311-70004

4AF#,4AGE,5AF#..AT17#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-15010

4A#,5AF..AT17#

 1
Common parts
90105-06160
90119-06727
91511-60616
91511-B1016
91611-61025
