AT160-AEPVF (1985)
Toyota Carina Ff
Production
Aug 1985
-
Apr 1988
Engine
4AGELU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

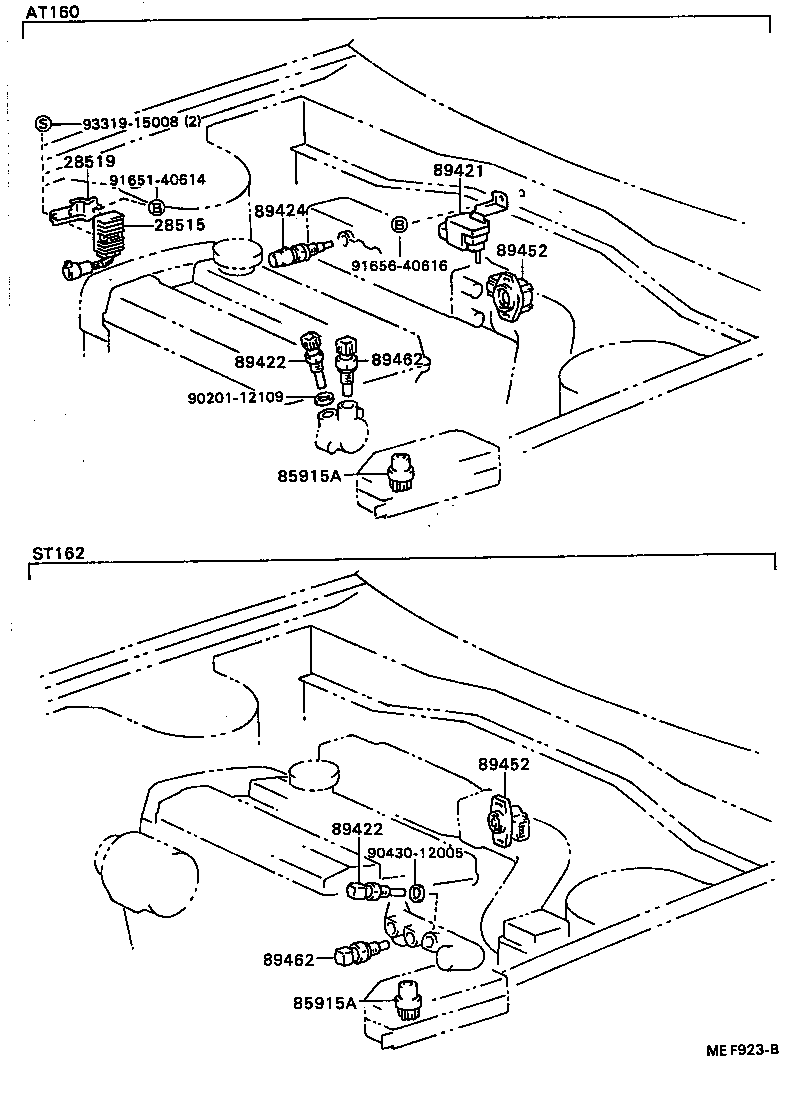

ILLUST NO. 1 OF 2(8508- )AT160,ST162
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-63020 |
4AGELU..AT160 |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-16060 |
4AGELU..AT160 |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90987-02004 |
AT151,160,ST150,162 |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90987-02004 |
AT151,160,ST150,162 |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-20080 |
AT160 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-12010 |
AT160 |
1 | ||
| 89422-30020 |
AT151,160,ST150,162 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-12010 |
AT160 |
1 | ||
| 89422-30020 |
AT151,160,ST150,162 |
1 | ||
| 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) | ||||
| 89424-12010 |
AT160 |
1 | ||
| 89424-28010 |
AT151,160,ST150 |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-28010 |
AT160 |
1 | ||
| 89452-20070 |
AT160 |
1 | ||
| 89452-12050 |
AT160 |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-28010 |
AT160 |
1 | ||
| 89452-20070 |
AT160 |
1 | ||
| 89452-12050 |
AT160 |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-12010 |
AT160 |
1 | ||
| 89462-30011 |
AT151,160 |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-12010 |
AT160 |
1 | ||
| 89462-30011 |
AT151,160 |
1 | ||
| Common parts | ||||
| 90201-12109 | ||||
| 90430-12005 | ||||
| 91651-40614 | ||||
| 91656-40616 | ||||
| 93319-15008 | ||||

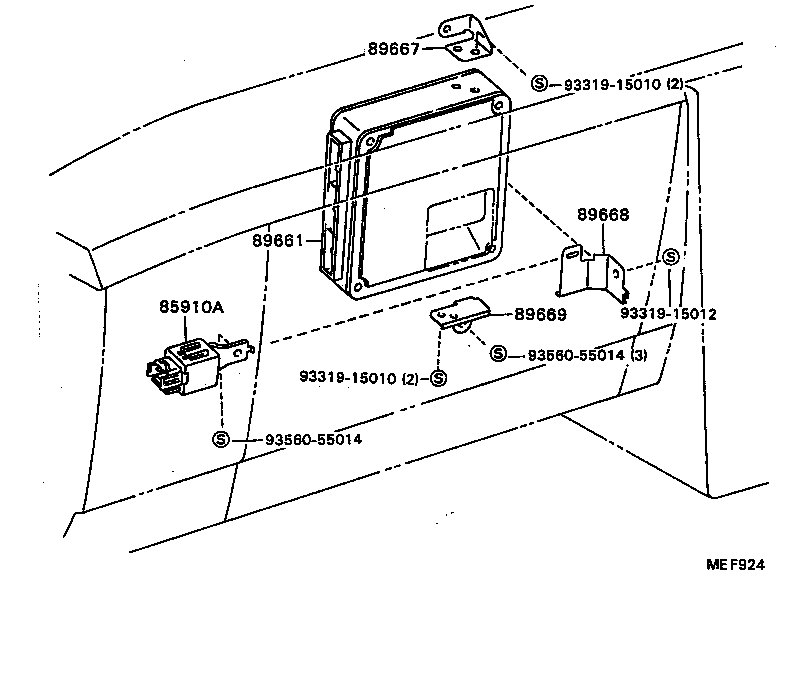

ILLUST NO. 2 OF 2(8508- )AT160,ST162
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-20020 |
AT151,160,ST150,162 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-20420 |
AT160 |
1 | ||
| 89661-20200 |
AT160 |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-20080 |
AT160,ST162 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-20060 |
AT160,ST162 |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-20040 |
AT160,ST162 |
1 | ||
| Common parts | ||||
| 93319-15010 | ||||
| 93319-15012 | ||||
| 93560-55014 | ||||
