AT160-AEPVF (1985)

Toyota Carina Ff

Production Aug 1985 - Apr 1988
Engine 4AGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )AT160

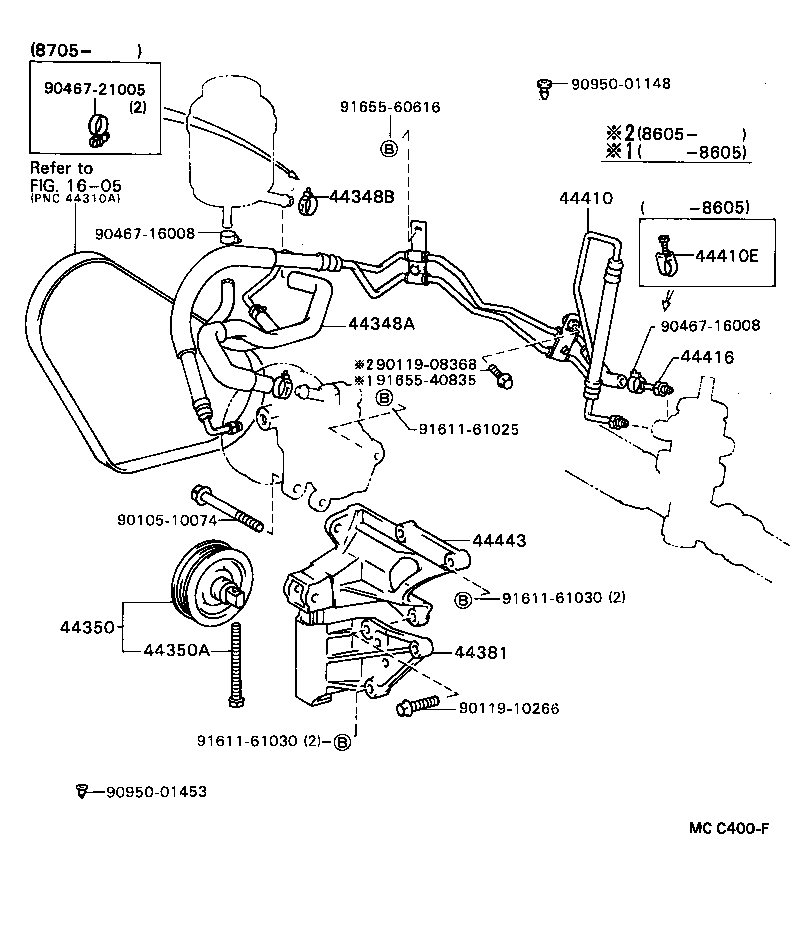

Click highlighted areas on diagram

diagram 1605 44348A 44348B 44350 44350A 44381 44410 44410E 44416 44443 9010510074 9011908368 9011910266 9046716008 9046716008 9046721005 9095001148 9095001453 9161161025 9161161030 9161161030 9165540835 9165560616
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-20090

AT160

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

AT160,CT150,ST150,162

 2
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-12060

AT160

 1
44350A - BOLT(FOR POWER STEERING IDLE PULLEY)
90105-08099

AT160

 1
44381 - BRACKET, POWER STEERING IDLE PULLEY
44381-12030

AT160

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-20230

AT160

 1
44410E - CLAMP(FOR PRESSURE FEED TUBE)
90460-01001

AT160

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20110

AT160,ST150,162

 1
44443 - BRACKET, PUMP
44443-12060

AT160

 1
Common parts
90105-10074
90119-08368
90119-10266
90467-16008
90467-21005
90950-01148
90950-01453
91611-61025
91611-61030
91655-40835
91655-60616
Linked diagrams
1605
