AT160-AEPVF (1985)
Toyota Carina Ff
Production
Aug 1985
-
Apr 1988
Engine
4AGELU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )4AGELU

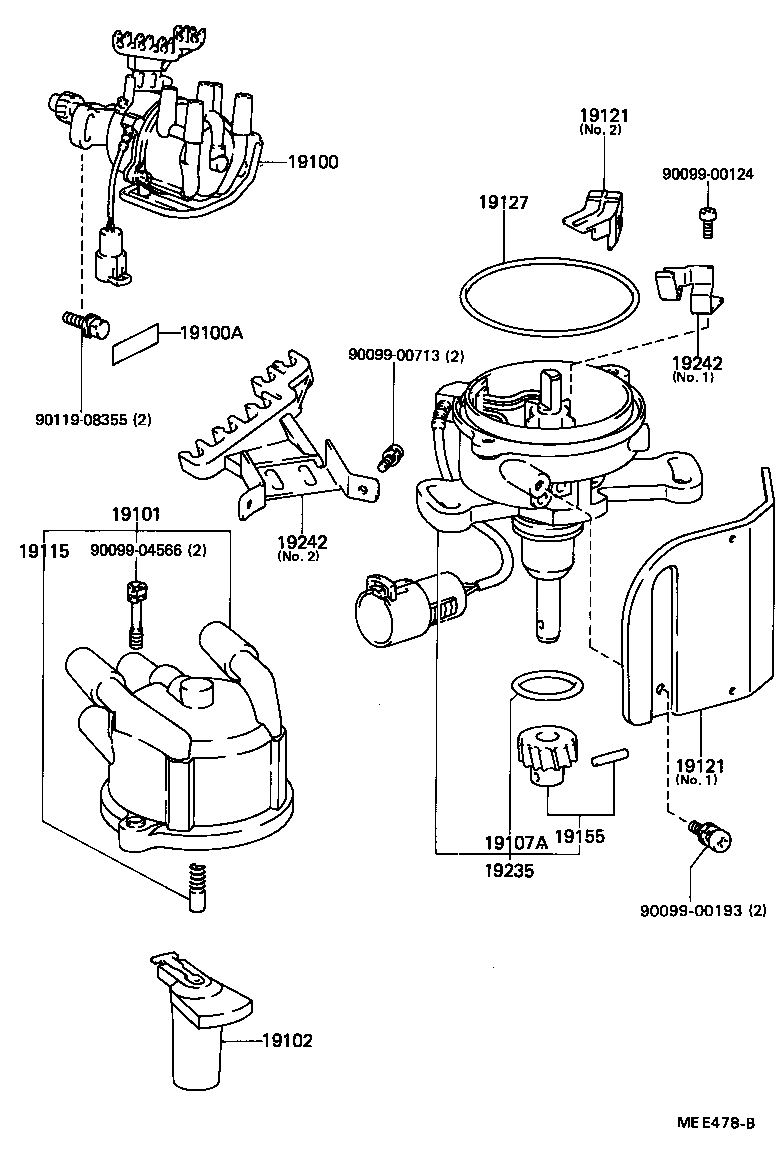

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-16080 |
4AGELU..AT160 |
1 | ||
| 19100-16190 |
4AGELU..AT160 |
1 | ||
| 19100A - TAPE, SEALING | ||||
| 90919-24004 |
3ALU,4A#..AT15#,160 |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-16080 |
4AGELU..AT160 |
1 | ||
| 19101-16220 |
4AGELU..AT160 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 96711-35030 |
4A#..AT151,160 |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
4A#..AT151,160..GT,SG |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-16040 |
4AGELU..AT160 NO.2 |
1 | ||
| 19121-16080 |
4AGELU..AT160 NO.1 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-16040 |
4AGELU..AT160 NO.2 |
1 | ||
| 19121-16080 |
4AGELU..AT160 NO.1 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15021 |
4A#..AT151,160..GT,SG |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-16040 |
4AGELU..AT160 |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-16080 |
4AGELU..AT160 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-16030 |
4AGELU..AT160 NO.1 |
1 | ||
| 19242-16080 |
4AGELU..AT160 NO.2 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-16030 |
4AGELU..AT160 NO.1 |
1 | ||
| 19242-16080 |
4AGELU..AT160 NO.2 |
1 | ||
| Common parts | ||||
| 90099-00124 | ||||
| 90099-00193 | ||||
| 90099-00713 | ||||
| 90099-04566 | ||||
| 90119-08355 | ||||
