AT160-AEMVF (1985)
Toyota Carina Ff
Production
Aug 1985
-
Apr 1988
Engine
4AGELU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )AT160

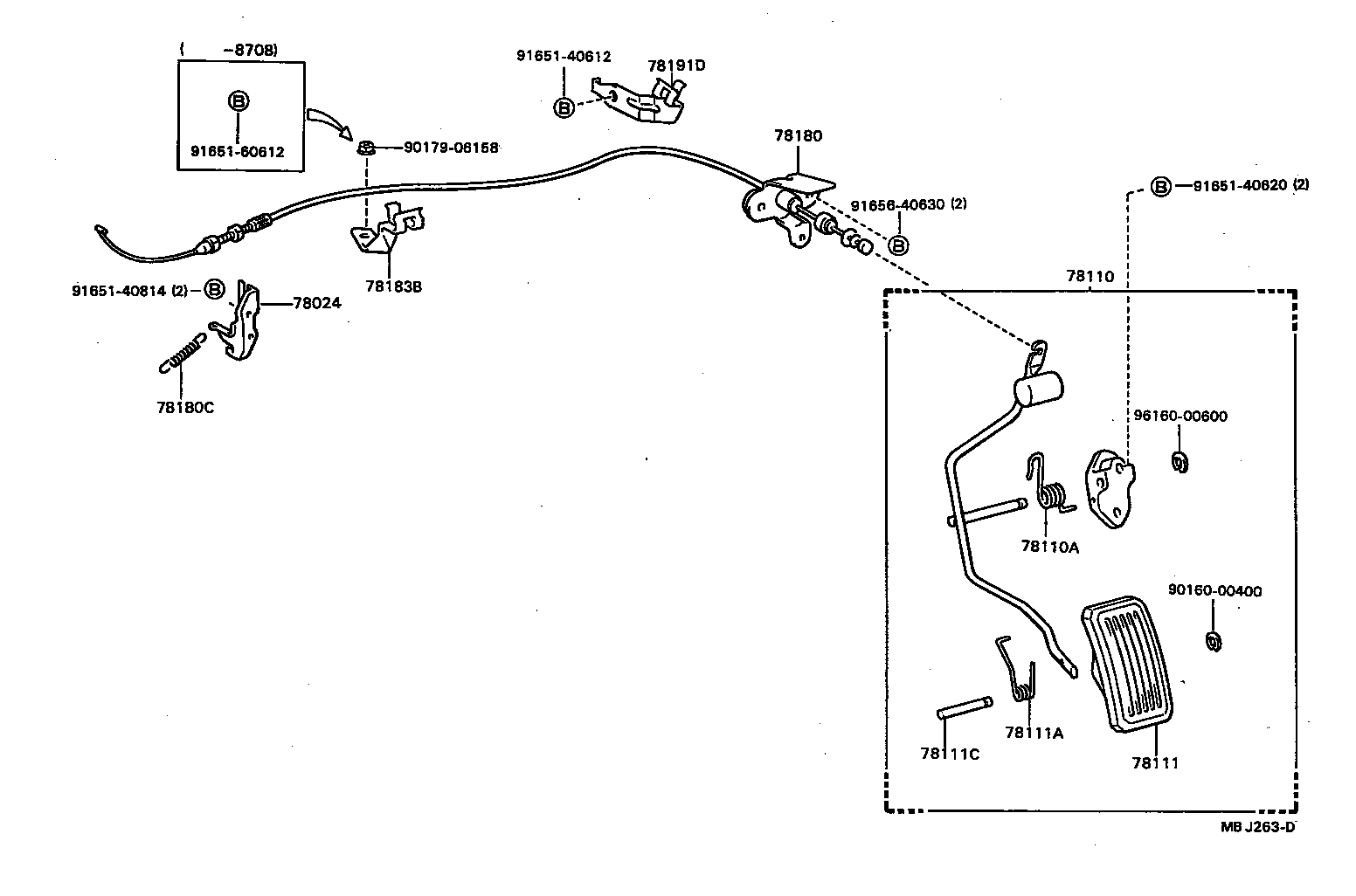

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78184-12190 |
AT160 |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-20180 |
AT15#,160,CT150..MTM |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26054 |
AT15#,160,CT150..MTM |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18050 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-20560 |
AT160 |
1 | ||
| 78180C - SPRING, TENSION (FOR ACCELERATOR WIRE) | ||||
| 90507-10016 |
AT160 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-12080 |
AT160 |
1 | ||
| 78191D - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20030 |
AT160,ST162 |
1 | ||
| Common parts | ||||
| 90160-00400 | ||||
| 90179-06158 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 91651-40814 | ||||
| 91651-60612 | ||||
| 91656-40630 | ||||
| 96160-00600 | ||||
