AT160-AEMVF (1985)
Toyota Carina Ff
Production
Aug 1985
-
Apr 1988
Engine
4AGELU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )AT160,ST162

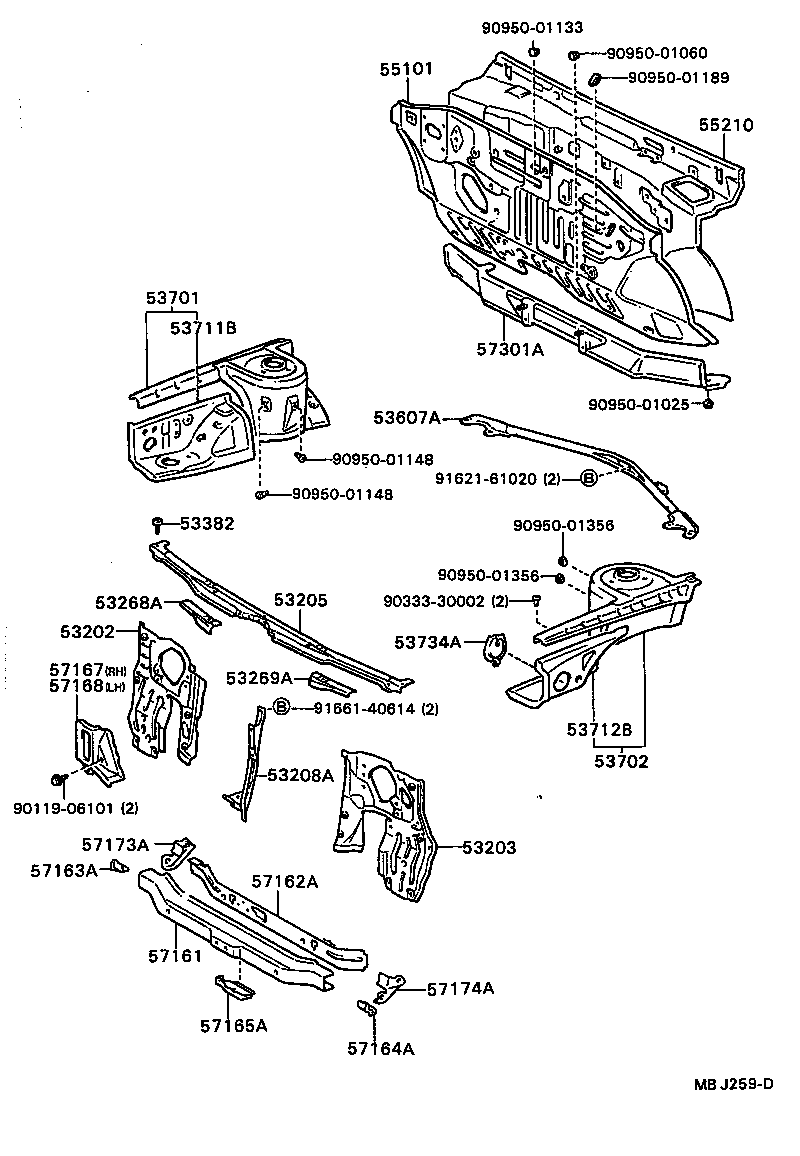

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53211-20170 |
AT160,ST162 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-20190 |
AT160,ST162 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53216-20110 |
AT160,ST162 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-20080 |
AT160,ST162 |
1 | ||
| 53268A - REINFORCEMENT, RADIATOR MOUNTING, RH | ||||
| 53268-20010 |
AT160,CT150,ST150,162 |
1 | ||
| 53269A - REINFORCEMENT, RADIATOR MOUNTING, LH | ||||
| 53269-20010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 53382 - BUMPER, HOOD, FRONT | ||||
| 53382-20020 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 53607A - BRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER | ||||
| 53607-20040 |
AT160 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-20580 |
AT160,ST162 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-20600 |
AT160,ST162 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-20160 |
AT160,ST162 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-20230 |
AT160,ST162 |
1 | ||
| 53734A - SEAL, FRONT FENDER APRON TO FRAME, NO.2 LH | ||||
| 53734-20060 |
AT160,ST162 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-20721 |
AT160,ST162..5F |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-20101 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57161-20110 |
AT160,ST162 |
1 | ||
| 57162A - MEMBER, FRONT CROSS, REAR | ||||
| 57162-20901 |
AT160,ST162 |
1 | ||
| 57163A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH | ||||
| 57163-20080 |
AT160,ST162 |
1 | ||
| 57164A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH | ||||
| 57164-20080 |
AT160,ST162 |
1 | ||
| 57165A - REINFORCEMENT, FRONT CROSSMEMBER, NO.2 | ||||
| 57165-20060 |
AT160,ST162 |
1 | ||
| 57167 - GUSSET, FRONT CROSSMEMBER, UPPER RH | ||||
| 57167-20080 |
AT160,ST162 |
1 | ||
| 57168 - GUSSET, FRONT CROSSMEMBER, UPPER LH | ||||
| 57168-20070 |
AT160,ST162 |
1 | ||
| 57173A - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 RH | ||||
| 57173-20010 |
AT160,ST162 |
1 | ||
| 57174A - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH | ||||
| 57174-20010 |
AT160,ST162 |
1 | ||
| 57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT | ||||
| 57301-20021 |
AT15#,160,CT150,ST150,162 |
1 | ||
| Common parts | ||||
| 90119-06101 | ||||
| 90333-30002 | ||||
| 90950-01025 | ||||
| 90950-01060 | ||||
| 90950-01133 | ||||
| 90950-01148 | ||||
| 90950-01189 | ||||
| 90950-01356 | ||||
| 91621-61020 | ||||
| 91661-40614 | ||||
