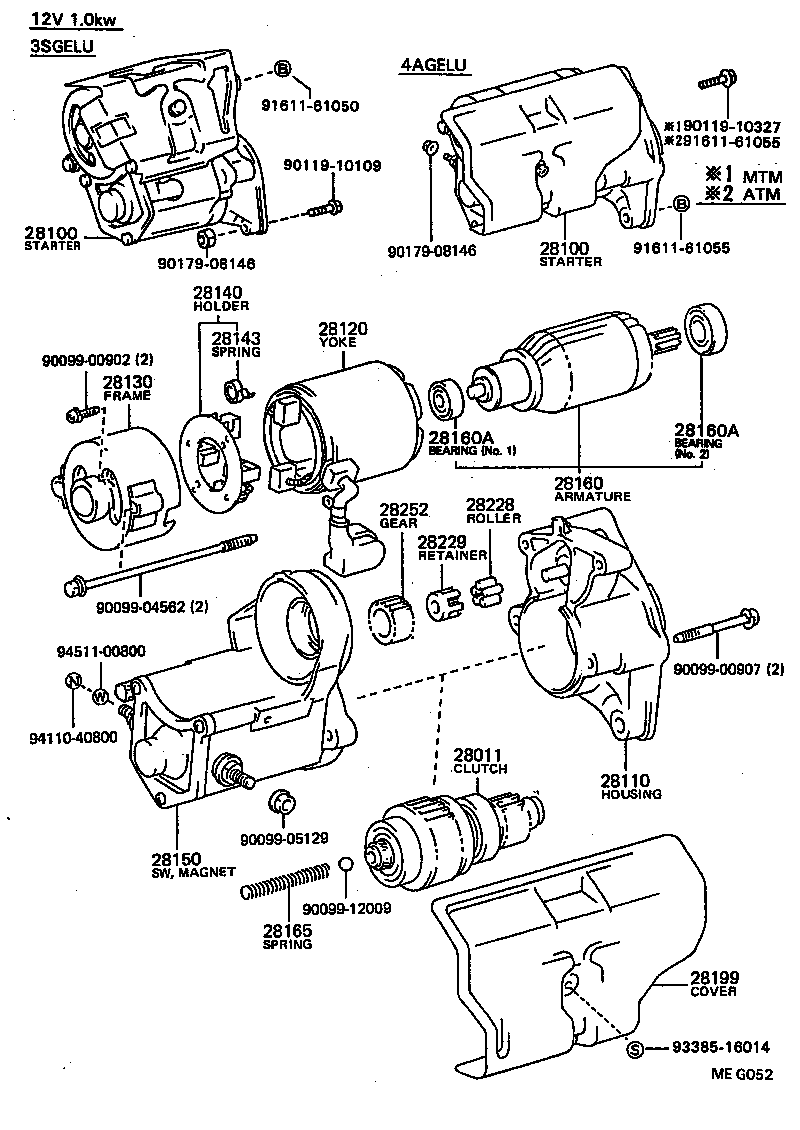

AT160-AEMVF (1985)
Toyota Carina Ff
(8508- )4AGELU,3SGELU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-15010 |
3ALU,4AGELU..AT150,160 12V 0.8KW |
1 | ||
| 28011-15010 |
3ALU,4A#..AT15#,160 12V 0.8KW |
1 | ||
| 28011-26042 |
3ALU,4A#,1SILU,3SGELU..AT15#,160,ST150,162 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-15170 |
4AGELU..AT160 12V 0.8KW,12V 0.8KW |
1 | ||
| 28100-15180 |
4AGELU..AT160 12V 1.0KW,12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-15170 |
4AGELU..AT160 12V 0.8KW,12V 0.8KW |
1 | ||
| 28100-15180 |
4AGELU..AT160 12V 1.0KW,12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-15130 |
4AGELU..AT160 12V 1.0KW |
1 | ||
| 28110-15110 |
4AGELU..AT160 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26140 |
4AGELU..AT160 12V 0.8KW |
1 | ||
| 28120-26071 |
3ALU,4A#,1SILU,3SGELU..AT15#,160,ST150,162 12V 1.0KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-13010 |
4AGELU,3SGELU..AT160,ST162 12V 1.0KW |
1 | ||
| 28130-13020 |
4AGELU..AT160 12V 0.8KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15010 |
3ALU,4A#..AT15#,160 12V 0.8KW |
1 | ||
| 28140-15010 |
3ALU,4AGELU..AT150,160 12V 0.8KW |
1 | ||
| 28140-26070 |
3ALU,4A#,1SILU,3SGELU..AT15#,160,ST150,162 12V 1.0KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
3ALU,4A#,2CL,1SILU,3SGELU..AT15#,160,CT150,ST150,162 12V 1.0KW,1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-37010 |
3ALU,4A#..AT15#,160 12V 0.8KW |
1 | ||
| 28150-37010 |
3ALU,4AGELU..AT150,160 12V 0.8KW |
1 | ||
| 28150-13011 |
4AGELU..AT160 12V 1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15010 |
3ALU,4A#..AT15#,160 12V 0.8KW |
1 | ||
| 28160-26070 |
3ALU,4A#,1SILU,3SGELU..AT15#,160,ST150,162 12V 1.0KW |
1 | ||
| 28160-15010 |
3ALU,4AGELU..AT150,160 12V 0.8KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
3ALU,4A#,1SILU,3SGELU..AT15#,160,ST150,162 12V 1.0KW,NO.2 |
1 | ||
| 90099-10113 |
3ALU,4A#,1SILU,3SGELU..AT15#,160,ST150,162 12V 1.0KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
3ALU,4A#,1SILU,3SGELU..AT15#,160,ST150,162 12V 1.0KW,NO.2 |
1 | ||
| 90099-10113 |
3ALU,4A#,1SILU,3SGELU..AT15#,160,ST150,162 12V 1.0KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
3ALU,4A#,2CL,1SILU,3SGELU..AT15#,160,CT150,ST150,162 12V 1.0KW,1.4KW |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-63050 |
4AGELU,3SGELU..AT160,ST162 12V 1.0KW |
1 | ||
| 28159-15160 |
4AGELU..AT160 12V 0.8KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
3ALU,4A#,2CL,1SILU,3SGELU..AT15#,160,CT150,ST150,162 12V 1.0KW,1.4KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
3ALU,4A#,2CL,1SILU,3SGELU..AT15#,160,CT150,ST150,162 12V 1.0KW,1.4KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
3ALU,4A#,1SILU,3SGELU..AT15#,160,ST150,162 12V 1.0KW |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90119-10109 | ||||
| 90119-10327 | ||||
| 90179-08146 | ||||
| 91611-61050 | ||||
| 91611-61055 | ||||
| 93385-16014 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
