AT160-AEMVF (1985)

Toyota Carina Ff

Production Aug 1985 - Apr 1988
Engine 4AGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )4AGELU

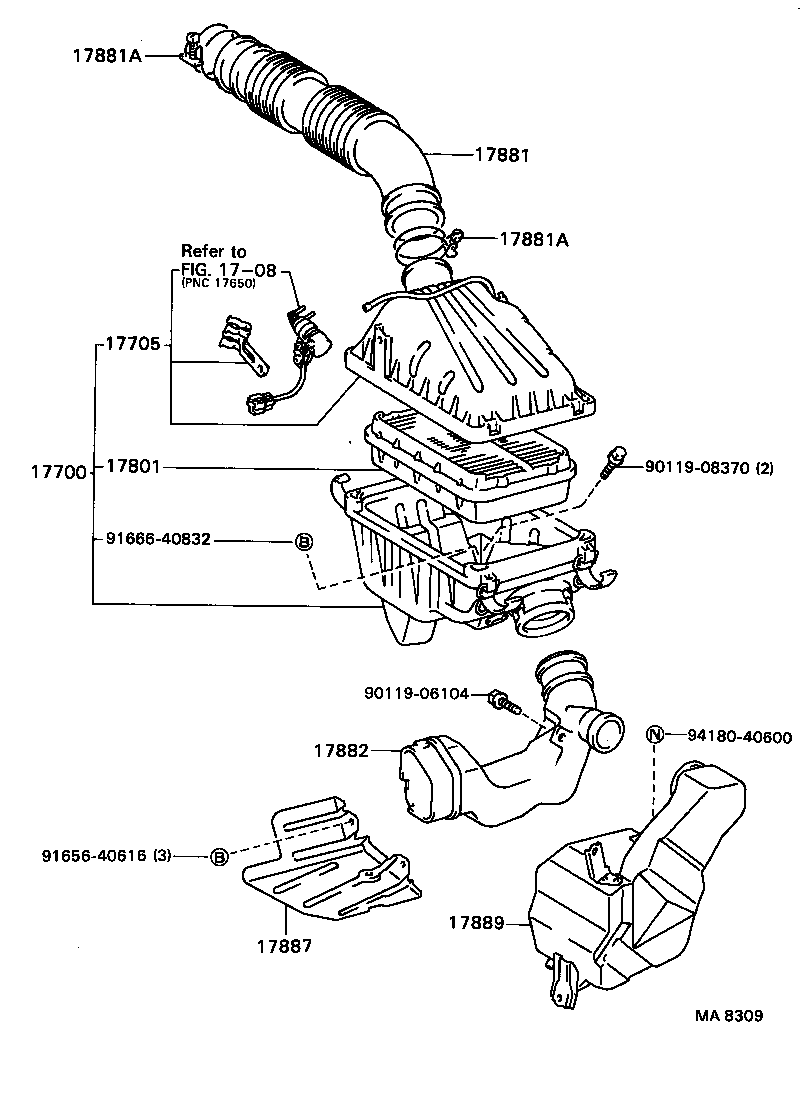

Click highlighted areas on diagram

diagram 1708 17700 17705 17801 17881 17881A 17881A 17882 17887 17889 9011906104 9011908370 9165640616 9166640832 9418040600
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-16330

4AGELU..AT160

 1
17700-16460

4AGELU..AT160

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-16130

4AGELU..AT160

 1
17705-16200

4AGELU..AT160

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74010

4A#..AT151,160

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-16090

4AGELU..AT160

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

4AGELU..AT160

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

4AGELU..AT160

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-20110

4AGELU..AT160

 1
17887 - COVER, AIR CLEANER HOSE
17887-20040

4AGELU..AT160

 1
17889 - BOX, AIR CLEANER HOSE, NO.2
17889-20020

4AGELU..AT160

 1
Common parts
90119-06104
90119-08370
91656-40616
91666-40832
94180-40600
Linked diagrams
1708
