AT160-AEMVF (1985)
Toyota Carina Ff
Production
Aug 1985
-
Apr 1988
Engine
4AGELU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )4AGELU

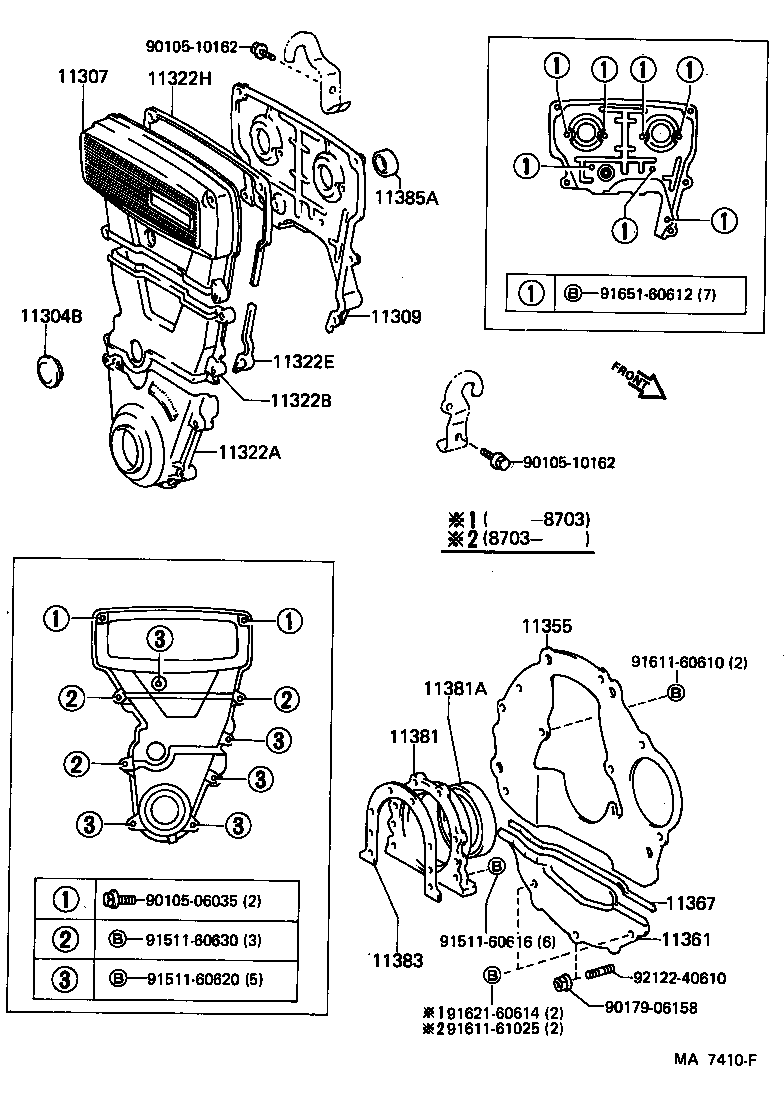

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2) | ||||
| 90950-01391 |
3ALU,4A#..AT15#,160 外径=34 |
1 | ||
| 90950-01535 |
4AGELU..AT160 外径=22 |
1 | ||
| 11307 - COVER, SUB-ASSY, TIMING BELT, NO.3 | ||||
| 11304-16020 |
4AGELU..AT160 |
1 | ||
| 11304-16030 |
4AGELU..AT160 |
1 | ||
| 11309 - COVER SUB-ASSY, TIMING BELT, NO.4 | ||||
| 11325-16020 |
4AGELU..AT160 |
1 | ||
| 11325-16011 |
4AGELU..AT160 |
1 | ||
| 11322A - COVER, TIMING BELT, NO.1 | ||||
| 11302-16011 |
4AGELU..AT160 |
1 | ||
| 11302-16010 |
4AGELU..AT160 |
1 | ||
| 11322B - COVER, TIMING BELT, NO.2 | ||||
| 11303-16020 |
4AGELU..AT160 |
1 | ||
| 11303-16021 |
4AGELU..AT160 |
1 | ||
| 11322E - GASKET, TIMING BELT COVER, NO.2 | ||||
| 11329-16010 |
4AGELU..AT160 |
1 | ||
| 11322H - GASKET, TIMING BELT COVER, NO.3 | ||||
| 11319-16011 |
4AGELU..AT160 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-15050 |
3ALU,4A#..AT15#,160 |
1 | ||
| 11355-15060 |
3ALU,4A#..AT15#,160 |
1 | ||
| 11361 - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-15021 |
3ALU,4A#..AT15#,160 |
1 | ||
| 11361-16040 |
3ALU,4A#..AT15#,160 |
1 | ||
| 11361-16020 |
3ALU,4A#..AT15#,160 |
1 | ||
| 11367 - GASKET, FLYWHEEL HOUSING UNDER | ||||
| 11367-15030 |
3ALU,4A#..AT15#,160 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-15010 |
3ALU,4A#..AT15#,160 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-70004 |
3ALU,4A#..AT15#,160 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-15010 |
3ALU,4A#..AT15#,160 |
1 | ||
| 11385A - SEAL, OIL(FOR CAMSHAFT) | ||||
| 90311-35013 |
4AGELU..AT160 |
2 | ||
| Common parts | ||||
| 90105-06035 | ||||
| 90105-10162 | ||||
| 90179-06158 | ||||
| 91511-60616 | ||||
| 91511-60620 | ||||
| 91511-60630 | ||||
| 91611-60610 | ||||
| 91611-61025 | ||||
| 91621-60614 | ||||
| 91651-60612 | ||||
| 92122-40610 | ||||
