AT151-AEPSE (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 4AELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

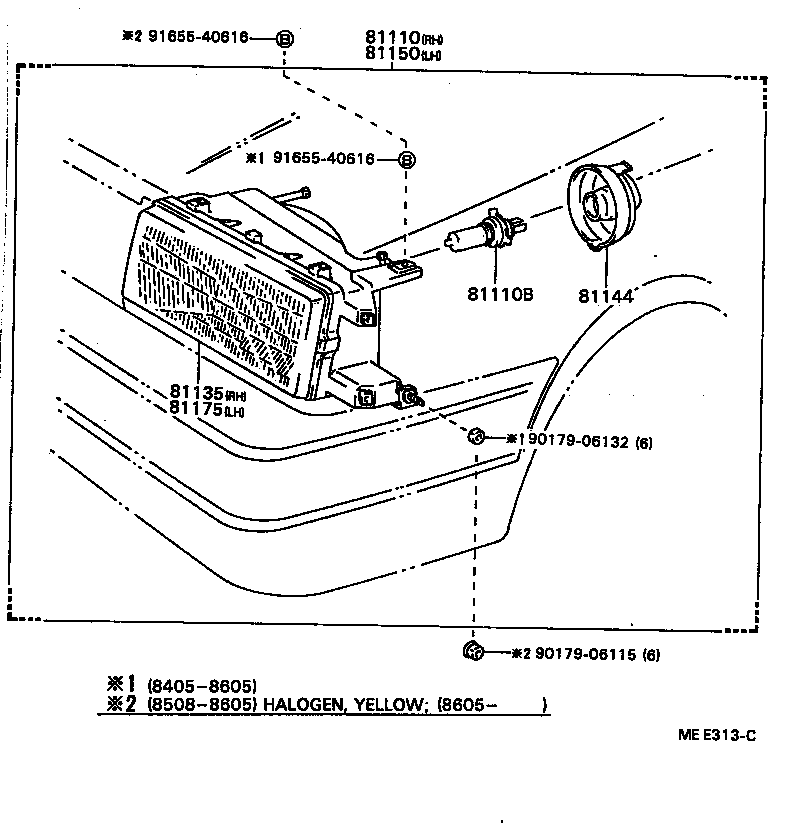

Click highlighted areas on diagram

diagram 81110 81110B 81135 81144 81150 81175 9017906115 9017906132 9165540616 9165540616
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-20820

AT15#,160,CT150,ST162..GT,GTR,SE,SG,ST

HALOGEN

 1
81110-80388

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

HALOGEN

 1
81110-80387

CT150..SG;AT15#,ST150

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

 2
90981-13022

CT150..SG;AT15#,ST150

12V 65/60W,ﾎﾜｲﾄ,12V 65/60W

 2
90981-13015

AT15#,160,CT150,ST162..GT,GTR,SE,SG,ST

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

 2
81135 - UNIT ASSY, HEADLAMP, RH
81135-20820

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

HALOGEN

 1
81135-20820

AT15#,160,CT150,ST162..GT,GTR,SE,SG,ST

HALOGEN

 1
81135-20810

CT150..SG;AT15#,ST150

 1
81144 - COVER, HEADLAMP, NO.1
81139-20730

AT15#,160,CT150,ST150,162

LH

 1
81139-20810

AT15#,160,CT150,ST150,162

RH

 1
81150 - HEADLAMP ASSY, LH
81150-80380

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

HALOGEN

 1
81150-80379

CT150..SG;AT15#,ST150

 1
81150-20820

AT15#,160,CT150,ST162..GT,GTR,SE,SG,ST

HALOGEN

 1
81175 - UNIT ASSY, HEADLAMP, LH
81175-20820

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

HALOGEN

 1
81175-20810

CT150..SG;AT15#,ST150

 1
81175-20820

AT15#,160,CT150,ST162..GT,GTR,SE,SG,ST

HALOGEN

 1
Common parts
90179-06115
90179-06132
91655-40616
