AT151-AEPSE (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 4AELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

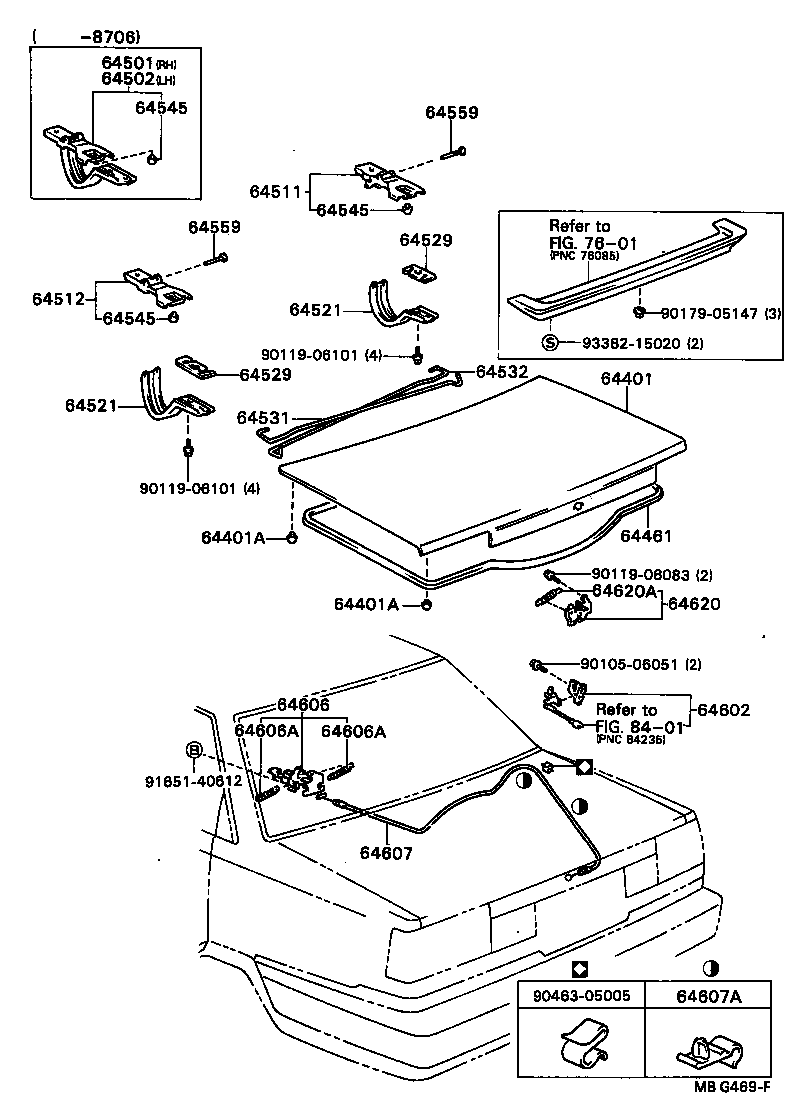

Click highlighted areas on diagram

diagram 64401 64401A 64401A 64461 64501 64502 64511 64512 64521 64521 64529 64529 64531 64532 64545 64545 64545 64559 64559 64602 64606 64606A 64606A 64607 64607A 64620 64620A 7601 8401 9010506051 9011906083 9011906101 9011906101 9017905147 9046305005 9165140612 9338215020
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-20850

AT15#,160,CT150,ST150,162

 1
64401-20870

AT151,160,ST162..GT,GTR,ST

W/SPOILER

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-14004

AT15#,160,CT150,ST150,162

RR

 2
90541-06076

AT15#,160,CT150,ST150,162

FR

 2
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-14004

AT15#,160,CT150,ST150,162

RR

 2
90541-06076

AT15#,160,CT150,ST150,162

FR

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-20170

AT15#,CT150,ST150

 1
64461-20190

AT15#,160,CT150,ST150,162

 1
64461-20180

AT15#,CT150,ST150

COLD SPEC

 1
64461-20200

AT15#,160,CT150,ST150,162

COLD SPEC

 1
64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-20080

AT151,160,ST162..GT,GTR,ST

W/SPOILER

 1
64510-20110

AT15#,160,CT150,ST150,162

 1
64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-20090

AT15#,160,CT150,ST150,162

 1
64520-20100

AT151,160,ST162..GT,GTR,ST

W/SPOILER

 1
64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64511-20090

AT151..ST

W/SPOILER

 1
64511-20080

AT15#,160,CT150,ST150,162

 1
64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64512-20090

AT151..ST

W/SPOILER

 1
64512-20080

AT15#,160,CT150,ST150,162

 1
64521 - ARM, LUGGAGE COMPARTMENT DOOR HINGE
64521-20080

AT15#,160,CT150,ST150,162

 2
64521 - ARM, LUGGAGE COMPARTMENT DOOR HINGE
64521-20080

AT15#,160,CT150,ST150,162

 2
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-20010

AT15#,160,CT150,ST150,162

T=1.0

 1
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-20010

AT15#,160,CT150,ST150,162

T=1.0

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-20110

AT15#,160,CT150,ST150,162

 1
64531-20190

AT15#,160,CT150,ST150,162

 1
64531-20130

AT151,160,ST162..GT,GTR,ST

W/SPOILER

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-20190

AT15#,160,CT150,ST150,162

 1
64532-20130

AT151,160,ST162..GT,GTR,ST

W/SPOILER

 1
64532-20110

AT15#,160,CT150,ST150,162

 1
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-07016

AT15#,160,CT150,ST150,162

 2
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-07016

AT15#,160,CT150,ST150,162

 2
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-07016

AT15#,160,CT150,ST150,162

 2
64559 - PIN, LUGGAGE DOOR HINGE
64559-22010

AT15#,160,CT150,ST150,162

 2
64559 - PIN, LUGGAGE DOOR HINGE
64559-22010

AT15#,160,CT150,ST150,162

 2
64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64621-12060

AT15#,160,CT150,ST162..DX,GT,GTR,SG,ST

 1
64621-12060

AT15#,160,CT150,ST150..DX,GT,SG,ST

 1
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-14030

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

 1
64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
90506-09004

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

 2
64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
90506-09004

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

 2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-20160

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

 1
64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
69749-12010

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

 2
64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-20070

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90506-08001

AT15#,160,CT150,ST150,162

 1
Common parts
90105-06051
90119-06083
90119-06101
90179-05147
90463-05005
91651-40612
93382-15020
Linked diagrams
7601
8401
