AT151-AEPSE (1984)
Toyota Carina Ff

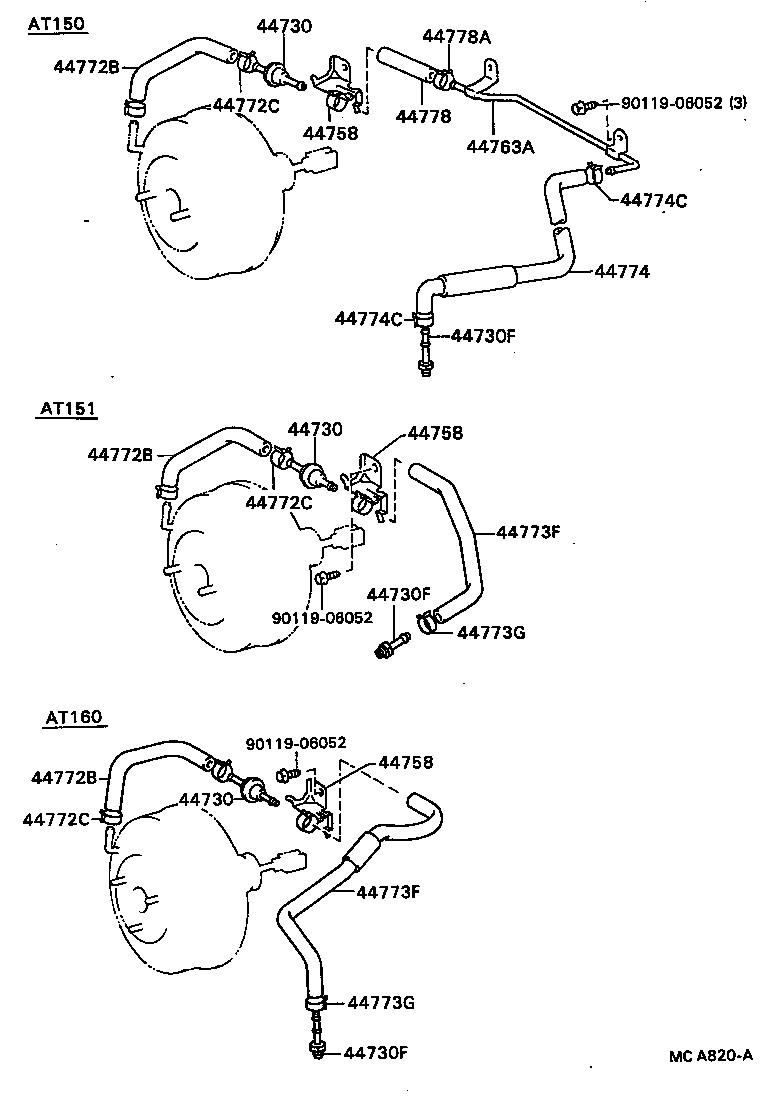

ILLUST NO. 2 OF 2(8405- )AT15#,160
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AT15#,160,ST150,162 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AT15#,160,ST150,162 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AT15#,160,ST150,162 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51028 |
AT15#,160 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51028 |
AT15#,160 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51028 |
AT15#,160 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20140 |
AT15#,160,ST162 |
1 | ||
| 44758-20141 |
AT15#,160,ST162 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20140 |
AT15#,160,ST162 |
1 | ||
| 44758-20141 |
AT15#,160,ST162 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20140 |
AT15#,160,ST162 |
1 | ||
| 44758-20141 |
AT15#,160,ST162 |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-20150 |
AT15# |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-20150 |
AT15# |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-20150 |
AT15# |
1 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
AT15#,160,ST150,162 |
2 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
AT15#,160,ST150,162 |
2 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
AT15#,160,ST150,162 |
2 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-20390 |
AT151 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-20390 |
AT151 |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
AT151,160,CT150,ST150,162 |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
AT151,160,CT150,ST150,162 |
2 | ||
| Common parts | ||||
| 90119-06052 | ||||

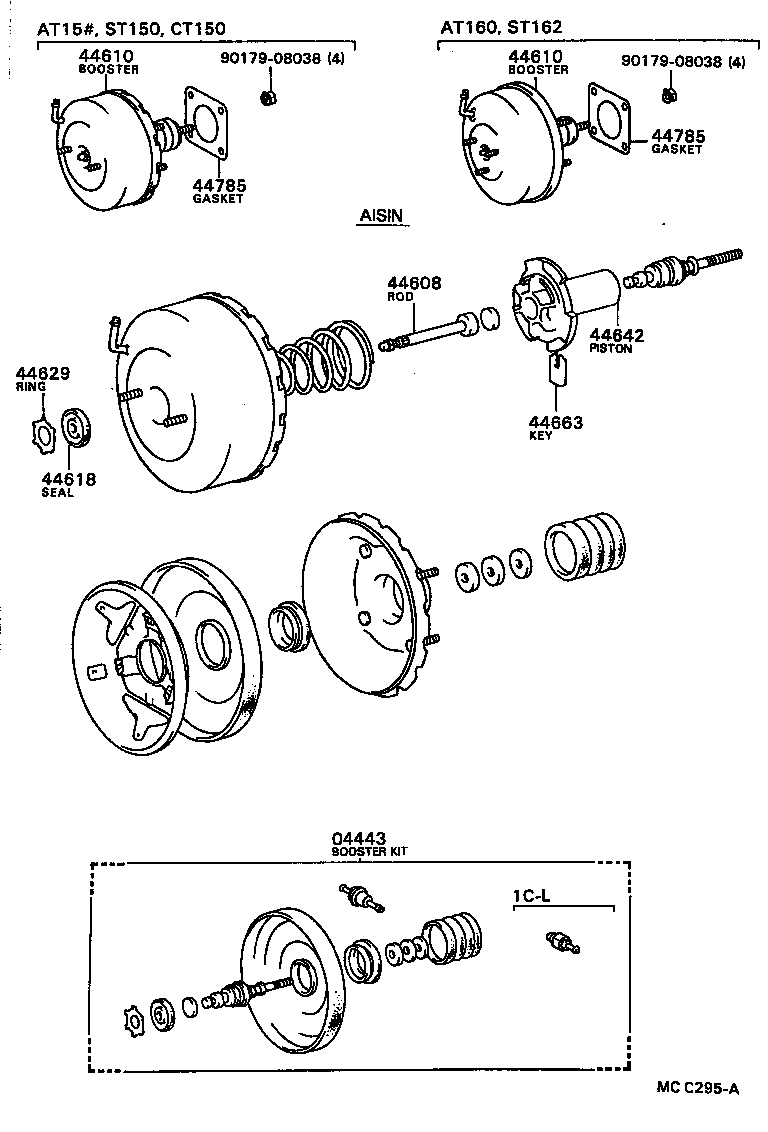

ILLUST NO. 1 OF 2(8405- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-20420 |
AT15#,ST150 AISIN |
1 | ||
| 04443-20340 |
AT15#,ST150 JKC |
1 | ||
| 04443-20480 |
AT15#,ST150 JKC |
1 | ||
| 04443-20460 |
AT15#,ST150 AISIN |
1 | ||
| 04443-20460 |
AT151,ST150 AISIN |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-32020 |
AT15#,160,CT150,ST150,162 JKC |
1 | ||
| 44606-12520 |
AT15#,160,CT150,ST150,162 AISIN |
1 | ||
| 44606-12520 |
AT151,160,CT150,ST150,162 AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-20820 |
AT151,CT150,ST150 AISIN |
1 | ||
| 44610-20680 |
AT15#,CT150,ST150 |
1 | ||
| 44610-20820 |
AT15#,CT150,ST150 AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-20820 |
AT151,CT150,ST150 AISIN |
1 | ||
| 44610-20680 |
AT15#,CT150,ST150 |
1 | ||
| 44610-20820 |
AT15#,CT150,ST150 AISIN |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 44621-28120 |
AT151,160,CT150,ST150,162 |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 44628-28120 |
AT151,160,CT150,ST150,162 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-32010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 44642-32030 |
AT151,CT150,ST150 AISIN |
1 | ||
| 44642-32030 |
AT15#,CT150,ST150 AISIN |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 44635-28120 |
AT151,160,CT150,ST150,162 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

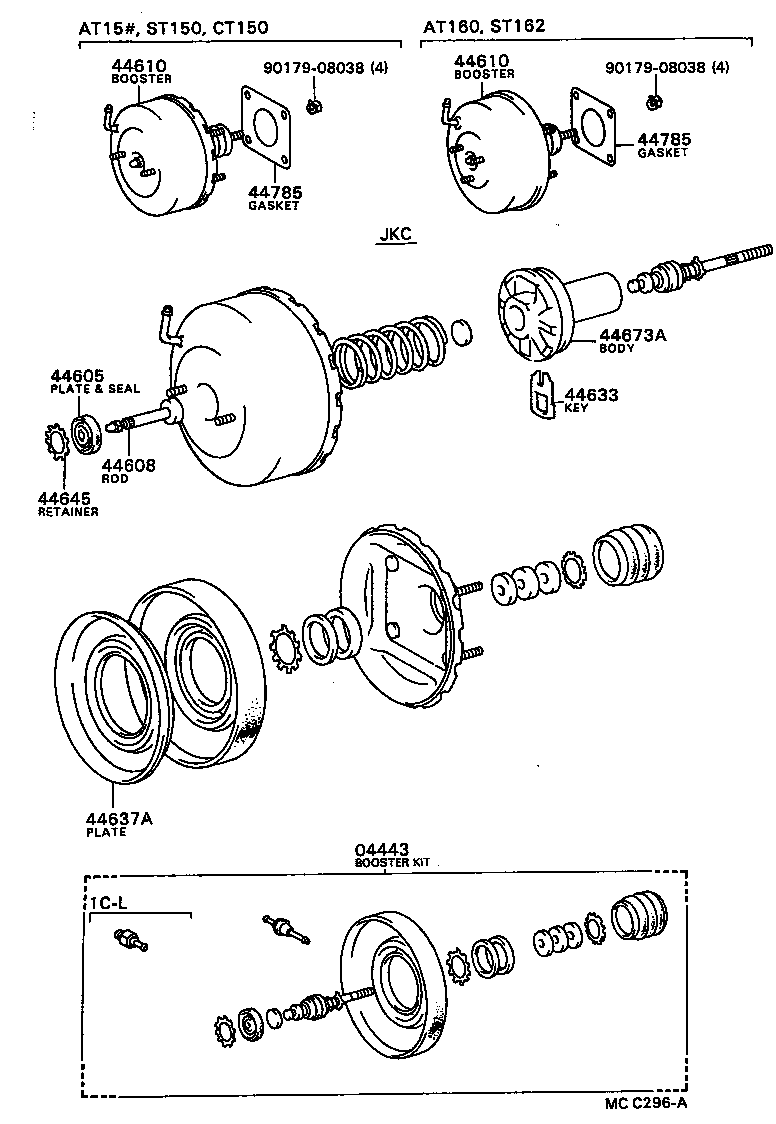

ILLUST NO. 1 OF 2(8405- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-20420 |
AT15#,ST150 AISIN |
1 | ||
| 04443-20340 |
AT15#,ST150 JKC |
1 | ||
| 04443-20480 |
AT15#,ST150 JKC |
1 | ||
| 04443-20460 |
AT15#,ST150 AISIN |
1 | ||
| 04443-20460 |
AT151,ST150 AISIN |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-32020 |
AT15#,160,CT150,ST150,162 JKC |
1 | ||
| 44606-12520 |
AT15#,160,CT150,ST150,162 AISIN |
1 | ||
| 44606-12520 |
AT151,160,CT150,ST150,162 AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-20820 |
AT151,CT150,ST150 AISIN |
1 | ||
| 44610-20680 |
AT15#,CT150,ST150 |
1 | ||
| 44610-20820 |
AT15#,CT150,ST150 AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-20820 |
AT151,CT150,ST150 AISIN |
1 | ||
| 44610-20680 |
AT15#,CT150,ST150 |
1 | ||
| 44610-20820 |
AT15#,CT150,ST150 AISIN |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-32020 |
AT15#,CT150,ST150 |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-32020 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 44673-32040 |
AT15#,CT150,ST150 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
