AT151-AEPSE (1984)
Toyota Carina Ff
Production
May 1984
-
Apr 1988
Engine
4AELU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8405- )AT15#,160..4FC

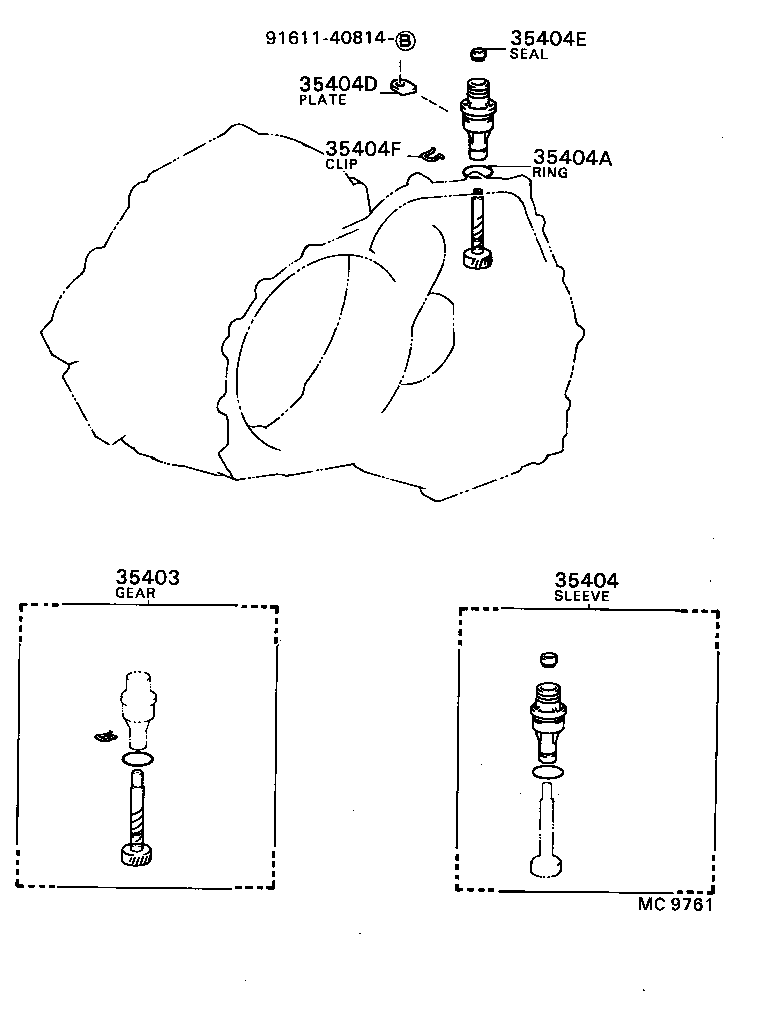

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM) | ||||
| 33403-19285 |
AT15#..4FC..(SE,ST) N=31,175/70SR13 TIRE |
1 | ||
| 33403-19285 |
AT15#..4FC N=31,175/70SR13 TIRE |
1 | ||
| 33403-19295 |
AT15#..4FC N=30,165SR13 TIRE |
1 | ||
| 35404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM) | ||||
| 33404-12030 |
AT15#,160..4FC |
1 | ||
| 35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 96711-24030 |
AT15#,160..4FC |
1 | ||
| 35404D - PLATE, SPEEDOMETER SLEEVE LOCK (ATM) | ||||
| 33485-30020 |
AT15#,160..4FC |
1 | ||
| 35404E - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
AT15#,160,CT150,ST150,162..ATM |
1 | ||
| 35404F - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
AT15#,160,CT150,ST150,162..ATM |
1 | ||
| Common parts | ||||
| 91611-40814 | ||||
