Toyota Carina ff AT151 WATER PUMP

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-19105	3ALU,4AELU..AT15#	05/1984 - 04/1988	1
16100H - RING, O(FOR WATER PUMP)
96711-24035	3ALU,4A#..AT15#,160	05/1984 - 04/1988	1
16104 - SEAL SET, WATER PUMP
16104-15020	3ALU,4A#..AT15#,160	05/1984 - 04/1988	1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-19046	3ALU,4AELU..AT15#	07/1986 - 04/1988	1
16110-19045	3ALU,4AELU..AT15#	05/1984 - 07/1986	1
16131 - ROTOR, WATER PUMP
16131-15051	3ALU,4AELU..AT15#	07/1986 - 04/1988	1
16131-15050	3ALU,4AELU..AT15#	05/1984 - 07/1986	1
16131A - BEARING, WATER PUMP
90369-35021	3ALU,4A#..AT15#,160	05/1984 - 05/1987	1
90369-35043	3ALU,4A#..AT15#,160	05/1987 - 04/1988	1
16171 - SEAT, WATER PUMP PULLEY
16171-15050	3ALU,4AELU..AT15#	05/1984 - 04/1988	1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
92122-60816	3ALU,4A#..AT15#,160	05/1984 - 04/1988	2
16271 - GASKET, WATER PUMP
16124-15010	3ALU,4A#..AT15#,160	05/1984 - 04/1988	1
16371 - PULLEY, FAN
16371-15050	3ALU,4AELU..AT15#..SE,SG,ST W/PS	05/1984 - 12/1987	1
16371-15060	3ALU,4AELU..AT15#..DX,SG,ST	05/1984 - 04/1988	1
16371-15050	3ALU,4AELU..AT15# W/PS	12/1987 - 04/1988	1
16371 - PULLEY, FAN
16371-15050	3ALU,4AELU..AT15#..SE,SG,ST W/PS	05/1984 - 12/1987	1
16371-15060	3ALU,4AELU..AT15#..DX,SG,ST	05/1984 - 04/1988	1
16371-15050	3ALU,4AELU..AT15# W/PS	12/1987 - 04/1988	1
Common parts
16193-15011
91511-60835
91621-60612

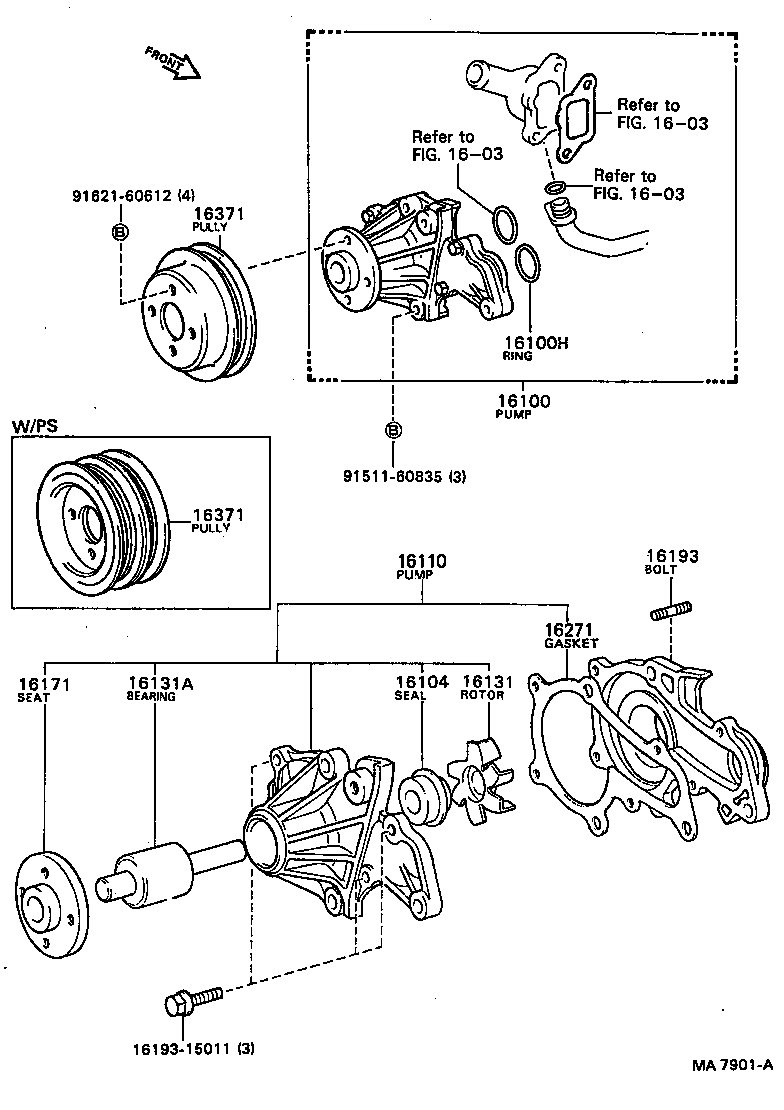

Linked diagrams
1603

AT151-AEPSE (1984)
