AT151-AEMFE (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 4AELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

Click highlighted areas on diagram

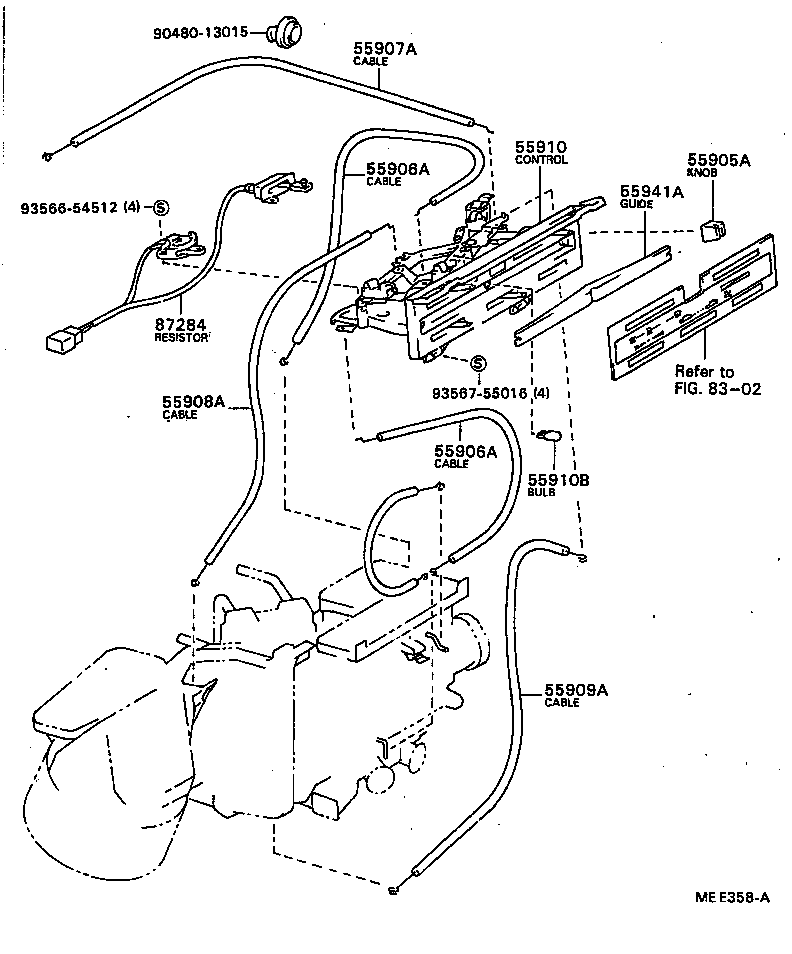

diagram 55905A 55906A 55906A 55907A 55908A 55909A 55910 55910B 55941A 8302 87284 9048013015 9356654512 9356755016
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-12060

AT15#,160,CT150,ST150,162

 5
55905-12060

AT15#,160,CT150,ST150

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-20200

AT15#,160,CT150,ST150

W/*LHC,MODE

 1
55906-20200

AT15#,160,CT150,ST150,162

MODE

 1
55906-20160

AT15#,160,CT150,ST150

W/*LHC R-L CONTROL

 1
55906-20160

AT15#,160,CT150,ST150,162

W/*LHC R-L CONTROL

 1
55906-20150

AT15#,CT150,ST150

MODE

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-20200

AT15#,160,CT150,ST150

W/*LHC,MODE

 1
55906-20200

AT15#,160,CT150,ST150,162

MODE

 1
55906-20160

AT15#,160,CT150,ST150

W/*LHC R-L CONTROL

 1
55906-20160

AT15#,160,CT150,ST150,162

W/*LHC R-L CONTROL

 1
55906-20150

AT15#,CT150,ST150

MODE

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-20160

AT15#,160,CT150,ST150

 1
55907-20160

AT15#,160,CT150,ST150,162

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-20120

AT15#,160,CT150,ST150,162

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
87286-20010

AT15#,160,CT150,ST150,162

 1
87286-20010

AT15#,160,CT150,ST150

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-20360

AT15#,160,CT150,ST150,162

 1
55910-20361

AT15#,160,CT150,ST150

*LHC

 1
55910B - BULB, HEATER CONTROL
90981-11014

AT15#,160,CT150,ST150,162

 1
55941A - GUIDE, HEATER CONTROL
55941-20050

AT15#,160,CT150,ST150,162

 1
55941-20050

AT15#,160,CT150,ST150

 1
Common parts
90480-13015
93566-54512
93567-55016
Linked diagrams
8302

(8405- )

Click highlighted areas on diagram

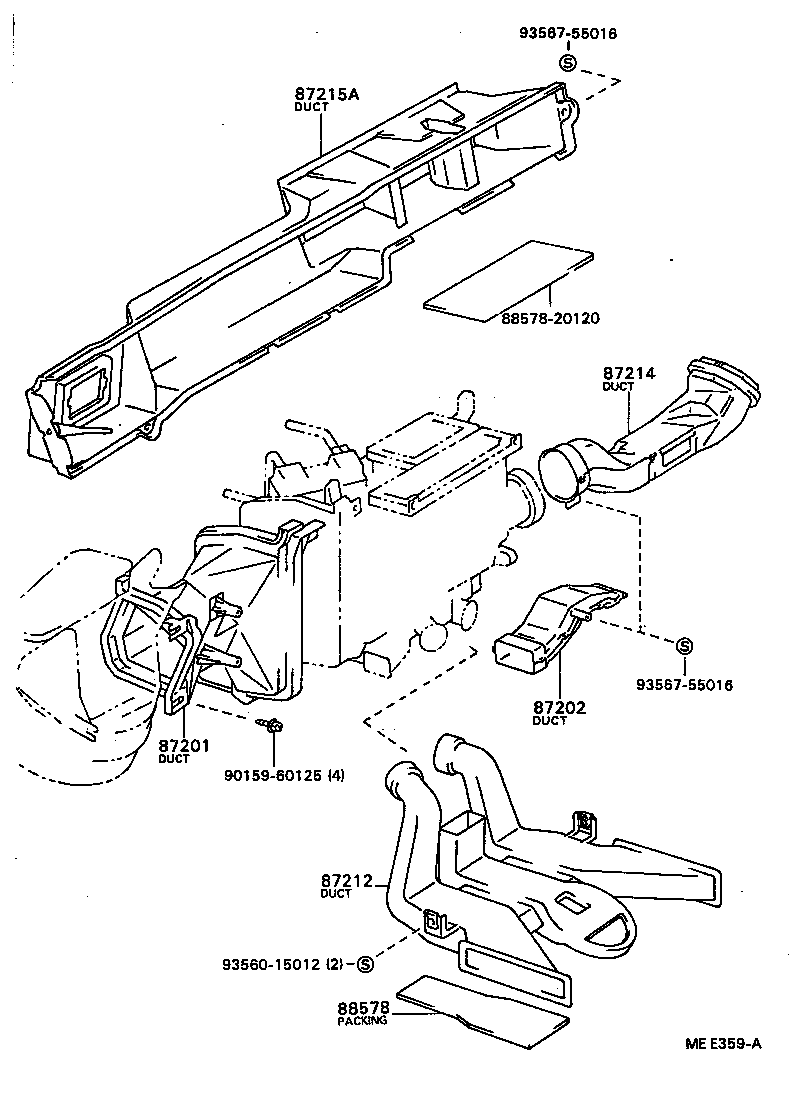

diagram 87201 87202 87212 87214 87215A 88578 8857820120 9015960125 9356015012 9356755016 9356755016
Part # Description Qty Price
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-20090

AT15#,160,CT150,ST150,162

 1
87202 - DUCT, HEATER AIR
87201-20100

AT15#,160,CT150,ST150,162

 1
87212 - DUCT, AIR, REAR NO.1
87201-20200

AT15#,160,CT150,ST150,162

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-20010

AT15#,160,CT150,ST150,162

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55088-20040

AT15#,160,CT150,ST150,162

 1
88578 - PAKING, COOLER AIR DUCT
88578-20190

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

 1
Common parts
88578-20120
90159-60125
93560-15012
93567-55016

(8405- )

Click highlighted areas on diagram

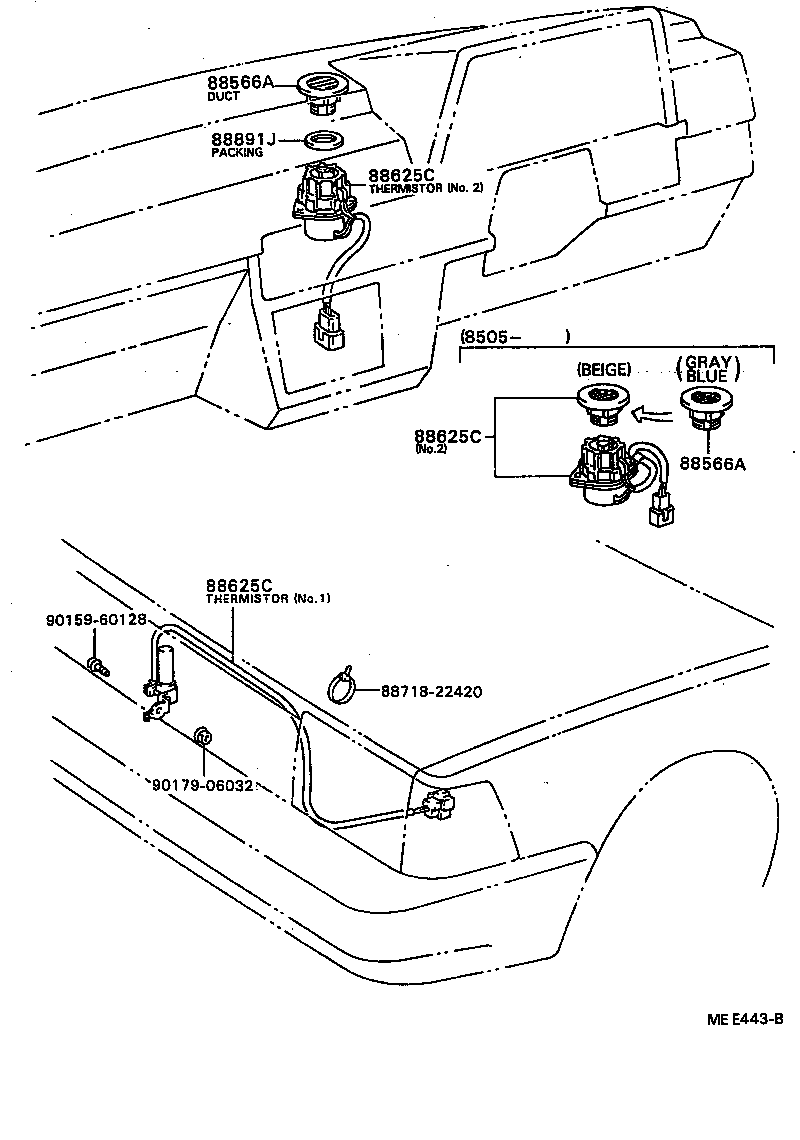

diagram 88566A 88566A 88625C 88625C 88625C 8871822420 88891J 9015960128 9017906032
Part # Description Qty Price
Common parts
88718-22420
90159-60128
90179-06032
