AT151-AEMFE (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 4AELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

Click highlighted areas on diagram

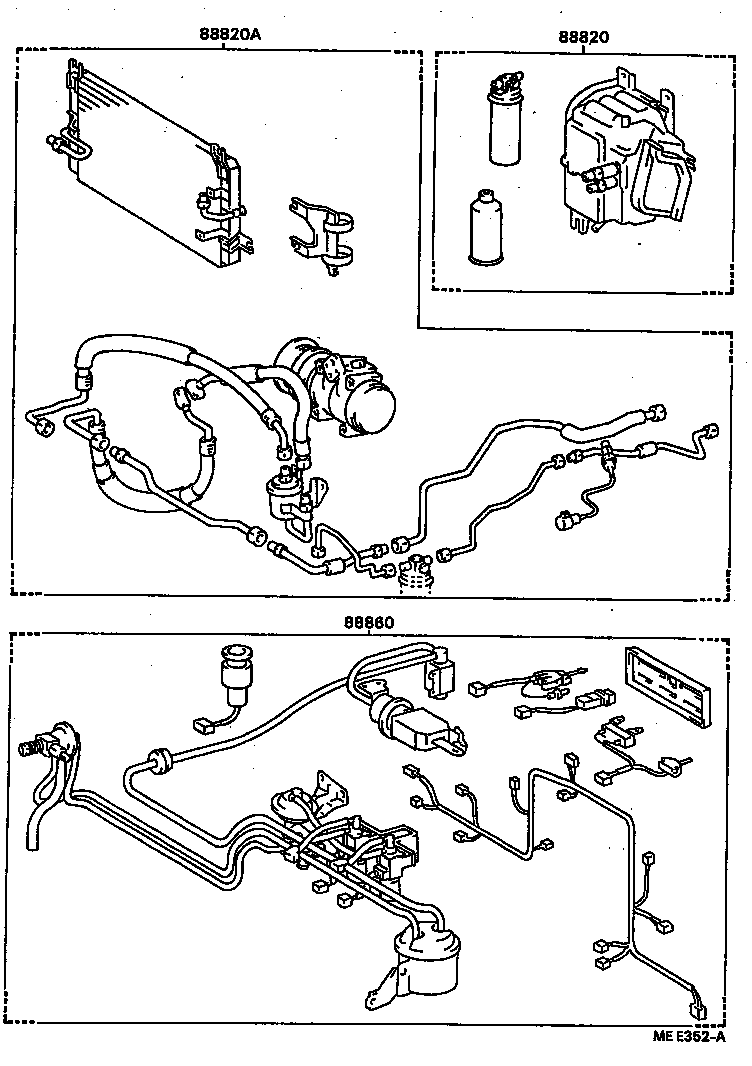

diagram 88820 88820A 88860
Part # Description Qty Price
88820 - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1
88820-20060

AT15#,160,CT150,ST150,162

 1
88820A - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2
88830-20270

AT151..5F

 1
88830-20730

AT151..5F

 1

(8405- )

Click highlighted areas on diagram

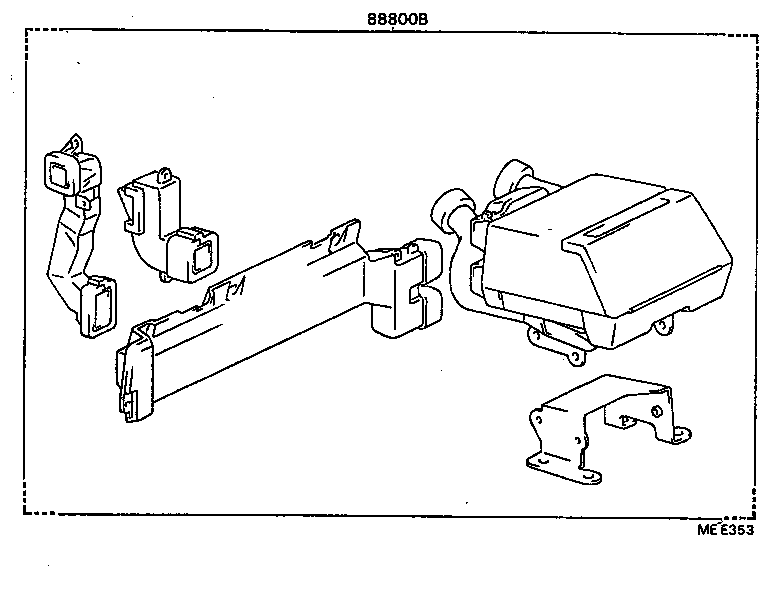

diagram 88800B
Part # Description Qty Price
88800B - COOL BOX AND ACCESSORY ASSY, NO.1
88800-20030

AT15#,160,CT150,ST150,162

BLUE

 1
88800-20300

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

GRAY

 1
88800-20320

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

BLUE

 1
88800-20010

AT15#,160,CT150,ST150,162

GRAY

 1
88800-20310

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

BEIGE

 1
88800-20100

AT15#,160,CT150,ST150,162

BROWN

 1
