Toyota Carina ff AT150 HEATING & AIR CONDITIONING - COOLER PIPING

AT150-AEPFS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988

Engine 3ALU

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

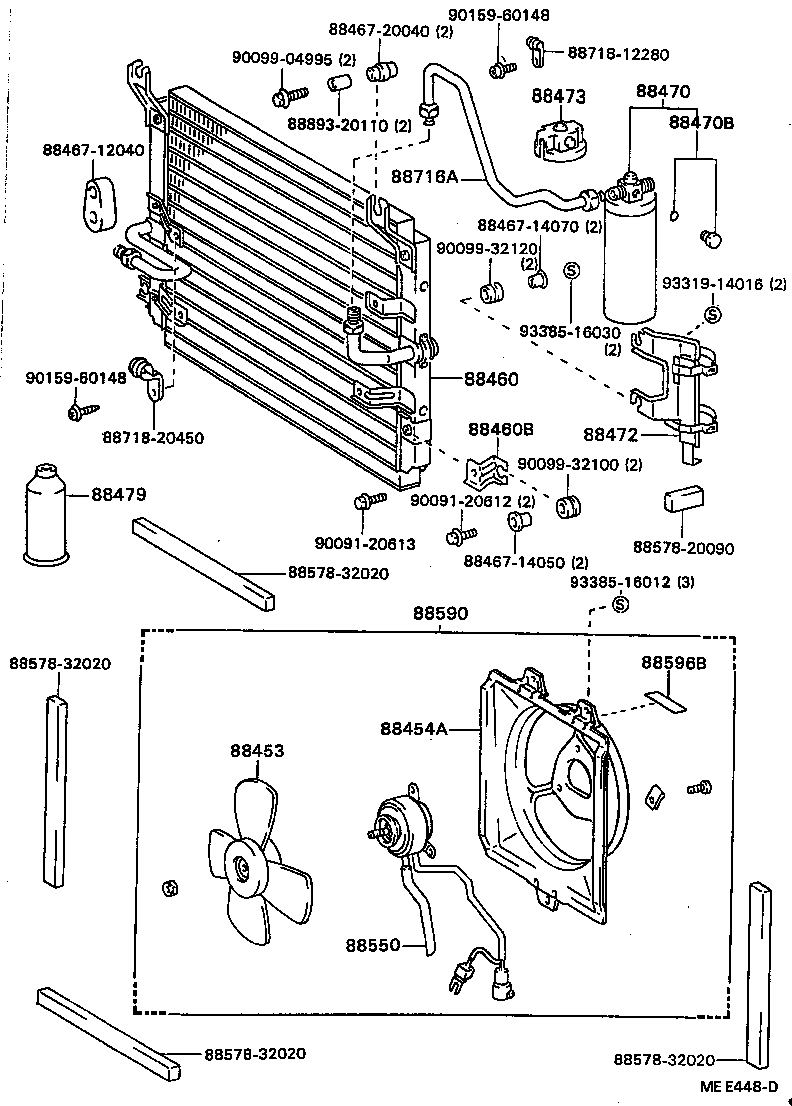

Click highlighted areas on diagram

Part #	Description	Period	Qty
88453 - FAN, COOLING (FOR CONDENSER)
88453-10010	AT15#	05/1986 - 04/1988	1
16361-28010	AT15#	05/1984 - 05/1986	1
88454A - SHROUD, FAN
88454-12050	AT15#..ATM	05/1984 - 05/1986	1
88454-12051	AT15#..ATM	05/1986 - 04/1988	1
88460 - CONDENSER ASSY, COOLER
88460-20210	AT15#,CT150,ST150	05/1985 - 04/1988	1
88460-20180	AT15#,CT150,ST150	05/1984 - 05/1985	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-20330	AT15#,CT150,ST150	05/1984 - 04/1988	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-14010	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
88470B - BOLT, FUSE
88475-12020	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-20010	AT15#,CT150,ST150	05/1984 - 04/1988	1
88473 - CAP, COOLER RECEIVER TANK
88894-12111	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001	AT15#,160,CT150,ST150,162 400G	05/1984 - 04/1988	2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-20020	AT15#,CT150	05/1984 - 05/1986	1
88550-12090	AT15#,CT150	05/1986 - 04/1988	1
88590 - BLOWER ASSY, W/SHROUD
88590-20030	AT15#..ATM	05/1984 - 05/1986	1
88590-12120	AT15#..ATM	05/1986 - 04/1988	1
88596B - PLATE, CAUTION, NO.1
88596-14010	AT15#,CT150	05/1986 - 04/1988	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-20640	AT15#,CT150,ST150	05/1984 - 04/1988	1
Common parts
88467-12040
88467-14050
88467-14070
88467-20040
88578-20090
88578-32020
88718-12280
88718-20450
88893-20110
90091-20612
90091-20613
90099-04995
90099-32100
90099-32120
90159-60148
93319-14016
93385-16012
93385-16030

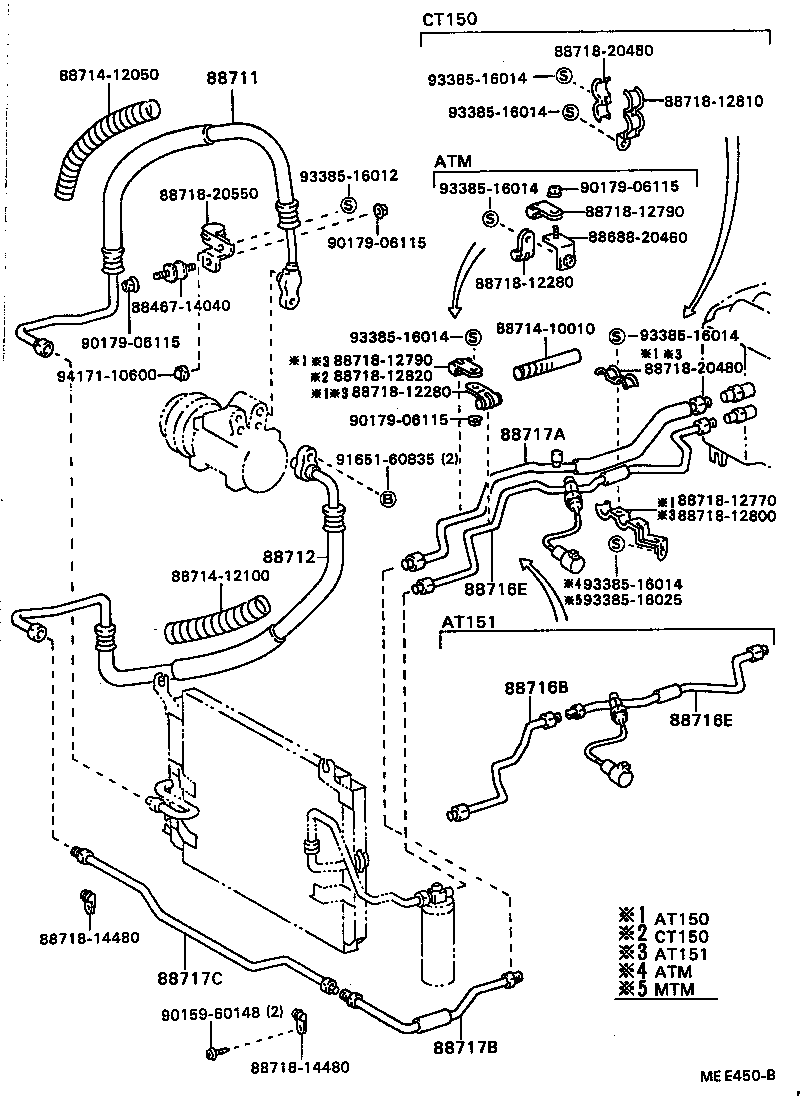

Click highlighted areas on diagram

Part #	Description	Period	Qty
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20460	AT15#	05/1985 - 04/1988	1
88711-20390	AT15#	05/1984 - 05/1985	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-20600	AT15#	05/1985 - 04/1988	1
88712-20471	AT15#	05/1984 - 05/1985	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-20730	AT150..ATM	05/1984 - 05/1986	1
88710-20090	AT150..ATM	05/1986 - 04/1988	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-20730	AT150..ATM	05/1984 - 05/1986	1
88710-20090	AT150..ATM	05/1986 - 04/1988	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-20370	AT150	05/1984 - 04/1988	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-20550	AT15#,CT150,ST150	05/1985 - 04/1988	1
88717-20350	AT15#,CT150,ST150	05/1984 - 05/1985	1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-20560	AT15#,CT150,ST150	05/1985 - 04/1988	1
88717-20430	AT15#,CT150,ST150	05/1984 - 05/1985	1
Common parts
88467-14040
88688-20460
88714-10010
88714-12050
88714-12100
88718-12280
88718-12770
88718-12790
88718-12800
88718-12810
88718-12820
88718-14480
88718-20480
88718-20550
90159-60148
90179-06115
91651-60835
93385-16012
93385-16014
93385-16025
94171-10600

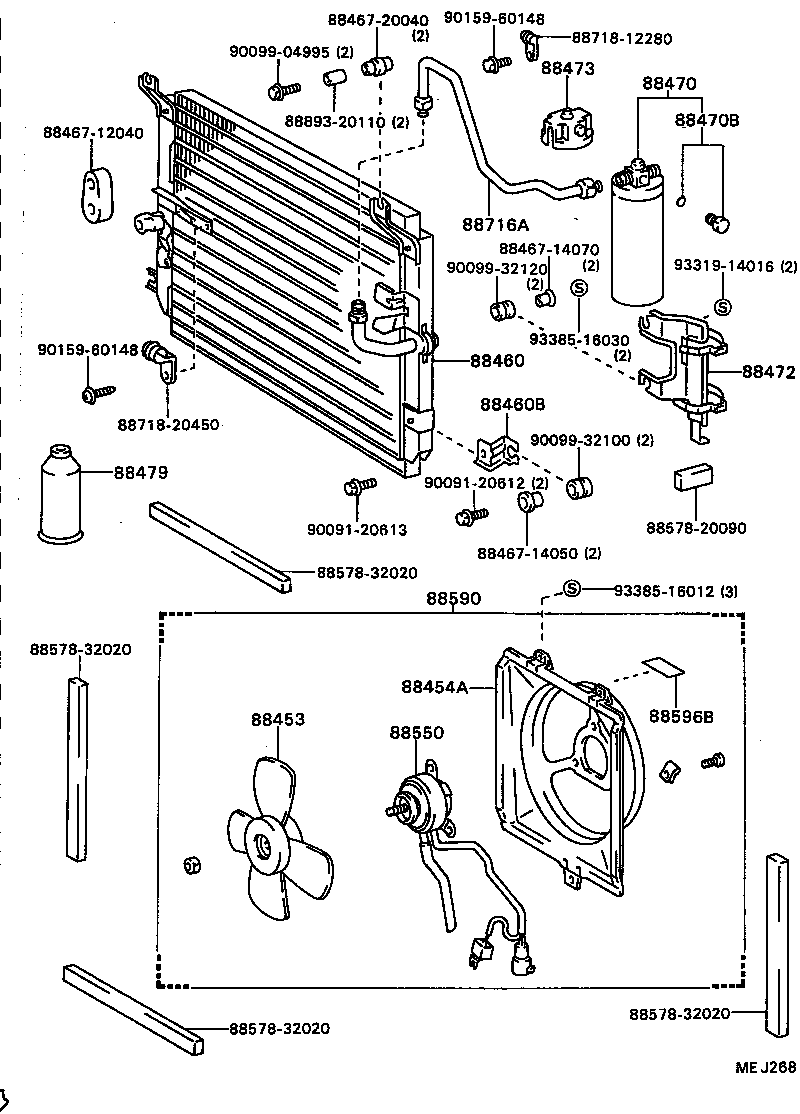

Click highlighted areas on diagram

Part #	Description	Period	Qty
88453 - FAN, COOLING (FOR CONDENSER)
88453-10010	AT15#	05/1986 - 04/1988	1
16361-28010	AT15#	05/1984 - 05/1986	1
88454A - SHROUD, FAN
88454-12050	AT15#..ATM	05/1984 - 05/1986	1
88454-12051	AT15#..ATM	05/1986 - 04/1988	1
88460 - CONDENSER ASSY, COOLER
88460-20210	AT15#,CT150,ST150	05/1985 - 04/1988	1
88460-20180	AT15#,CT150,ST150	05/1984 - 05/1985	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-20330	AT15#,CT150,ST150	05/1984 - 04/1988	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-14010	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
88470B - BOLT, FUSE
88475-12020	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-20010	AT15#,CT150,ST150	05/1984 - 04/1988	1
88473 - CAP, COOLER RECEIVER TANK
88894-12111	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001	AT15#,160,CT150,ST150,162 400G	05/1984 - 04/1988	2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-20020	AT15#,CT150	05/1984 - 05/1986	1
88550-12090	AT15#,CT150	05/1986 - 04/1988	1
88590 - BLOWER ASSY, W/SHROUD
88590-20030	AT15#..ATM	05/1984 - 05/1986	1
88590-12120	AT15#..ATM	05/1986 - 04/1988	1
88596B - PLATE, CAUTION, NO.1
88596-14010	AT15#,CT150	05/1986 - 04/1988	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-20640	AT15#,CT150,ST150	05/1984 - 04/1988	1
Common parts
88467-12040
88467-14050
88467-14070
88467-20040
88578-20090
88578-32020
88718-12280
88718-20450
88893-20110
90091-20612
90091-20613
90099-04995
90099-32100
90099-32120
90159-60148
93319-14016
93385-16012
93385-16030

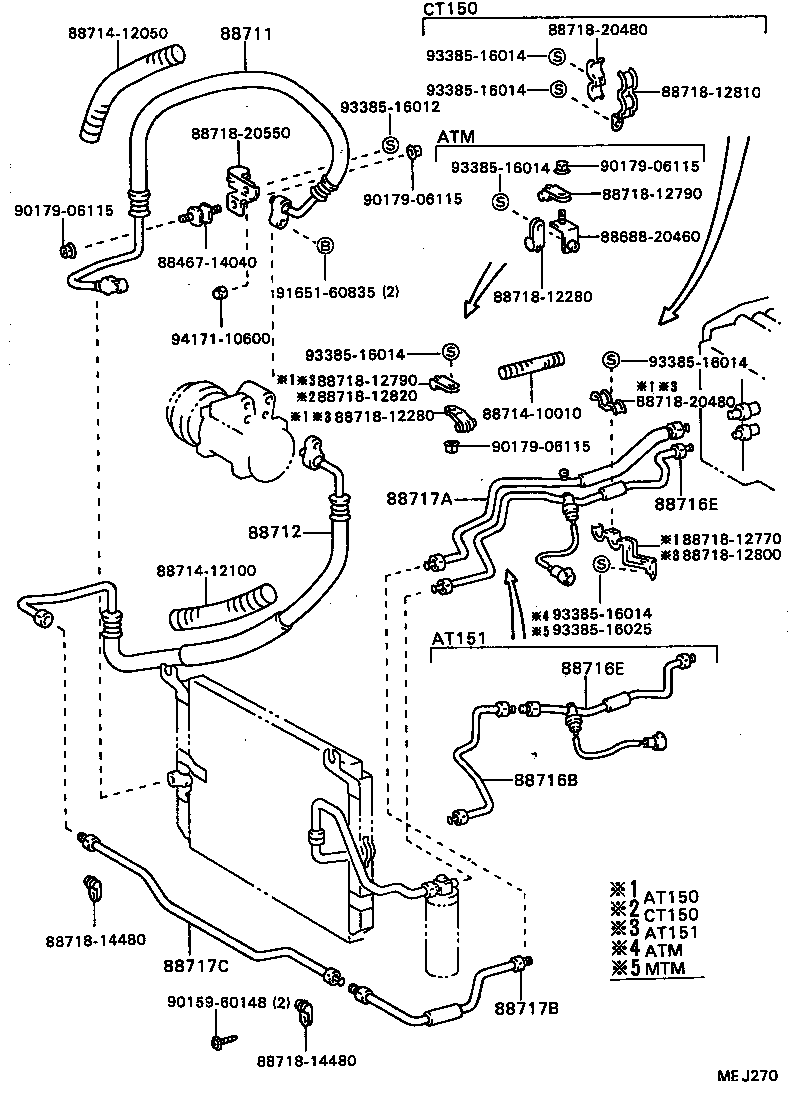

Click highlighted areas on diagram

Part #	Description	Period	Qty
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20460	AT15#	05/1985 - 04/1988	1
88711-20390	AT15#	05/1984 - 05/1985	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-20600	AT15#	05/1985 - 04/1988	1
88712-20471	AT15#	05/1984 - 05/1985	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-20730	AT150..ATM	05/1984 - 05/1986	1
88710-20090	AT150..ATM	05/1986 - 04/1988	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-20730	AT150..ATM	05/1984 - 05/1986	1
88710-20090	AT150..ATM	05/1986 - 04/1988	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-20370	AT150	05/1984 - 04/1988	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-20550	AT15#,CT150,ST150	05/1985 - 04/1988	1
88717-20350	AT15#,CT150,ST150	05/1984 - 05/1985	1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-20560	AT15#,CT150,ST150	05/1985 - 04/1988	1
88717-20430	AT15#,CT150,ST150	05/1984 - 05/1985	1
Common parts
88467-14040
88688-20460
88714-10010
88714-12050
88714-12100
88718-12280
88718-12770
88718-12790
88718-12800
88718-12810
88718-12820
88718-14480
88718-20480
88718-20550
90159-60148
90179-06115
91651-60835
93385-16012
93385-16014
93385-16025
94171-10600
