AT150-AEPFS (1984)
Toyota Carina Ff

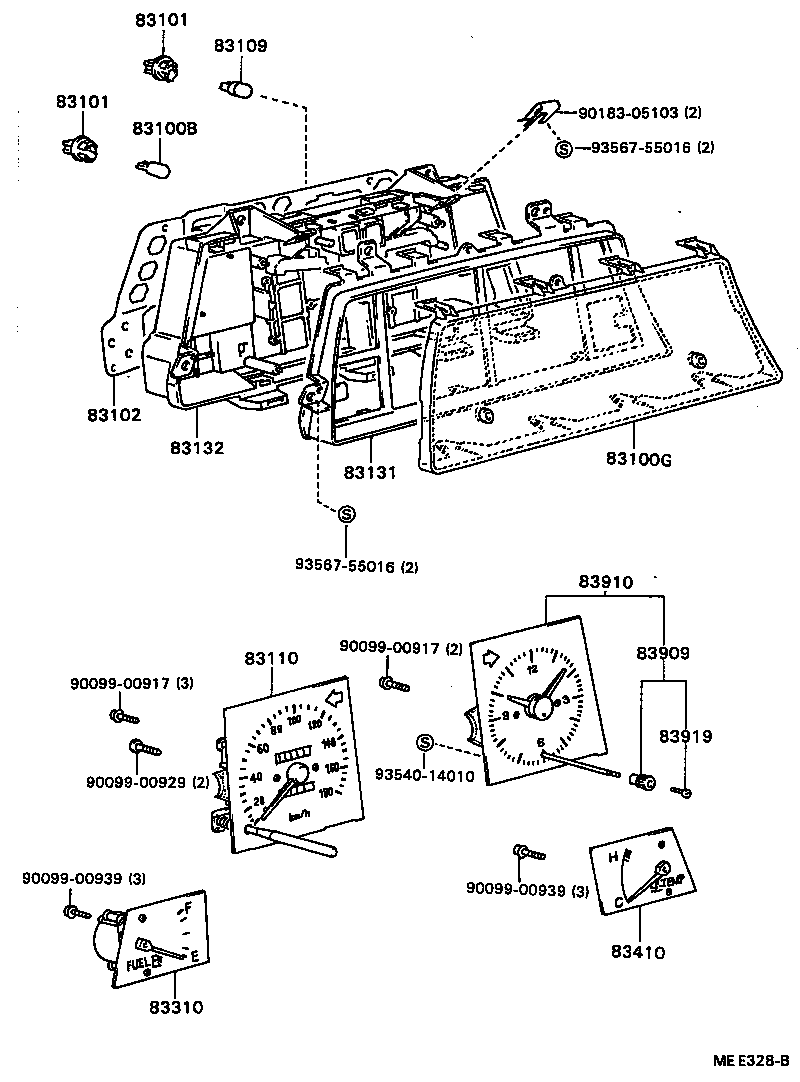

ILLUST NO. 1 OF 2(8405- )
ANALOG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT150..SG 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
6 | ||
| 90981-11018 |
AT150,CT150,ST150..SG 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
5 | ||
| 99132-12034 |
AT15#,160,CT150,ST150,162 12V 3.4W,12V 3.4W |
12 | ||
| 90981-11018 |
AT150..(4FC,5F)..SG 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
5 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-14910 |
AT150..(4FC,5F)..SG W/TACHOMETER |
1 | ||
| 83138-14890 |
ST150;AT15#,CT150..DX,SG W/O TACHOMETER |
1 | ||
| 83138-14910 |
AT150..SG W/TACHOMETER |
1 | ||
| 83138-14910 |
AT150,CT150,ST150..SG W/TACHOMETER |
1 | ||
| 83138-14890 |
AT15#,CT150,ST150..DX,SG W/O TACHOMETER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AT15#,160,CT150,ST150,162 BULB;12V 3.4W |
12 | ||
| 83101-14040 |
AT150..(4FC,5F)..SG BULB;12V 1.4W |
5 | ||
| 83101-14040 |
AT150..SG BULB;12V 1.4W |
6 | ||
| 83101-14040 |
AT150,CT150,ST150..SG BULB;12V 1.4W |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AT15#,160,CT150,ST150,162 BULB;12V 3.4W |
12 | ||
| 83101-14040 |
AT150..(4FC,5F)..SG BULB;12V 1.4W |
5 | ||
| 83101-14040 |
AT150..SG BULB;12V 1.4W |
6 | ||
| 83101-14040 |
AT150,CT150,ST150..SG BULB;12V 1.4W |
5 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1D431 |
AT150..SG W/TACHOMETER |
1 | ||
| 83247-1D431 |
AT150..(4FC,5F)..SG W/TACHOMETER |
1 | ||
| 83247-1D370 |
AT150..DX,SG W/CLOCK |
1 | ||
| 83247-1D430 |
AT150..SG W/TACHOMETER |
1 | ||
| 83247-1D431 |
AT150..SG W/TACHOMETER |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-20050 |
AT15#,160,CT150,ST150,162 |
5 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2B320 |
ST150;AT15#,CT150..DX,SG W/O TACHOMETER |
1 | ||
| 83110-2B640 |
AT150..(4FC,5F)..SG W/TACHOMETER |
1 | ||
| 83110-2B630 |
AT15#,CT150,ST150..DX,SG W/O TACHOMETER |
1 | ||
| 83110-2B640 |
AT150,CT150,ST150..SG W/TACHOMETER |
1 | ||
| 83110-2B330 |
AT150..SG W/TACHOMETER |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83133-1B230 |
AT150..SG W/TACHOMETER |
1 | ||
| 83133-1B230 |
AT150,CT150,ST150..SG W/TACHOMETER |
1 | ||
| 83133-1B210 |
ST150;AT15#,CT150..DX,SG W/O TACHOMETER |
1 | ||
| 83133-1B210 |
AT15#,CT150,ST150..DX,SG W/O TACHOMETER |
1 | ||
| 83133-1B230 |
AT150..(4FC,5F)..SG W/TACHOMETER |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1D630 |
AT150..SG W/TACHOMETER |
1 | ||
| 83132-1D570 |
AT150..DX,SG W/CLOCK |
1 | ||
| 83132-1D630 |
AT150..SG W/TACHOMETER |
1 | ||
| 83132-1D630 |
AT150..(4FC,5F)..SG W/TACHOMETER |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-14650 |
ST150;AT15#,CT150..DX,SG W/O TACHOMETER |
1 | ||
| 83243-14670 |
AT150..SG W/TACHOMETER |
1 | ||
| 83243-14830 |
AT150..(4FC,5F)..SG W/TACHOMETER |
1 | ||
| 83243-14810 |
AT15#,CT150,ST150..DX,SG W/O TACHOMETER |
1 | ||
| 83243-14830 |
AT150,CT150,ST150..SG W/TACHOMETER |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1B230 |
AT15#,CT150,ST150..DX,SG W/O TACHOMETER |
1 | ||
| 83244-1B070 |
ST150;AT15#,CT150..DX,SG W/O TACHOMETER |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
AT15#,CT150,ST150..DX,SG ANALOGUE CLOCK |
1 | ||
| 83909-22180 |
AT150..(4FC,5F)..SG DIGITAL CLOCK |
1 | ||
| 83909-22180 |
AT150..SG DIGITAL CLOCK |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20550 |
AT150..DX,SG ANALOGUE |
1 | ||
| 83910-20520 |
AT150..SG DIGITAL |
1 | ||
| 83910-20390 |
AT150..DX,SG ANALOGUE |
1 | ||
| 83910-20520 |
AT150..(4FC,5F)..SG DIGITAL |
1 | ||
| 83910-20520 |
AT150,CT150,ST150..SG DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
AT150..SG DIGITAL CLOCK |
1 | ||
| 83919-14012 |
AT15#,CT150,ST150..DX,SG ANALOGUE CLOCK |
1 | ||
| 83919-12230 |
AT150..(4FC,5F)..SG DIGITAL CLOCK |
1 | ||
| Common parts | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90183-05103 | ||||
| 93540-14010 | ||||
| 93567-55016 | ||||
ILLUST NO. 1 OF 2(8405- ) ; (8410-8605) ; (8605-8612) ; (8612-)
ANALOG(W/TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT150..SG 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
6 | ||
| 90981-11018 |
AT150,CT150,ST150..SG 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
5 | ||
| 99132-12034 |
AT15#,160,CT150,ST150,162 12V 3.4W,12V 3.4W |
12 | ||
| 90981-11018 |
AT150..(4FC,5F)..SG 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
5 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT150..SG 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
6 | ||
| 90981-11018 |
AT150,CT150,ST150..SG 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
5 | ||
| 99132-12034 |
AT15#,160,CT150,ST150,162 12V 3.4W,12V 3.4W |
12 | ||
| 90981-11018 |
AT150..(4FC,5F)..SG 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
5 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-14910 |
AT150..(4FC,5F)..SG W/TACHOMETER |
1 | ||
| 83138-14890 |
ST150;AT15#,CT150..DX,SG W/O TACHOMETER |
1 | ||
| 83138-14910 |
AT150..SG W/TACHOMETER |
1 | ||
| 83138-14910 |
AT150,CT150,ST150..SG W/TACHOMETER |
1 | ||
| 83138-14890 |
AT15#,CT150,ST150..DX,SG W/O TACHOMETER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AT15#,160,CT150,ST150,162 BULB;12V 3.4W |
12 | ||
| 83101-14040 |
AT150..(4FC,5F)..SG BULB;12V 1.4W |
5 | ||
| 83101-14040 |
AT150..SG BULB;12V 1.4W |
6 | ||
| 83101-14040 |
AT150,CT150,ST150..SG BULB;12V 1.4W |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AT15#,160,CT150,ST150,162 BULB;12V 3.4W |
12 | ||
| 83101-14040 |
AT150..(4FC,5F)..SG BULB;12V 1.4W |
5 | ||
| 83101-14040 |
AT150..SG BULB;12V 1.4W |
6 | ||
| 83101-14040 |
AT150,CT150,ST150..SG BULB;12V 1.4W |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AT15#,160,CT150,ST150,162 BULB;12V 3.4W |
12 | ||
| 83101-14040 |
AT150..(4FC,5F)..SG BULB;12V 1.4W |
5 | ||
| 83101-14040 |
AT150..SG BULB;12V 1.4W |
6 | ||
| 83101-14040 |
AT150,CT150,ST150..SG BULB;12V 1.4W |
5 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1D431 |
AT150..SG W/TACHOMETER |
1 | ||
| 83247-1D431 |
AT150..(4FC,5F)..SG W/TACHOMETER |
1 | ||
| 83247-1D370 |
AT150..DX,SG W/CLOCK |
1 | ||
| 83247-1D430 |
AT150..SG W/TACHOMETER |
1 | ||
| 83247-1D431 |
AT150..SG W/TACHOMETER |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-20050 |
AT15#,160,CT150,ST150,162 |
5 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2B320 |
ST150;AT15#,CT150..DX,SG W/O TACHOMETER |
1 | ||
| 83110-2B640 |
AT150..(4FC,5F)..SG W/TACHOMETER |
1 | ||
| 83110-2B630 |
AT15#,CT150,ST150..DX,SG W/O TACHOMETER |
1 | ||
| 83110-2B640 |
AT150,CT150,ST150..SG W/TACHOMETER |
1 | ||
| 83110-2B330 |
AT150..SG W/TACHOMETER |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-14510 |
AT150..(4FC,5F)..SG |
1 | ||
| 83128-14510 |
AT150..SG |
1 | ||
| 83128-14510 |
AT150,CT150,ST150..SG |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83133-1B230 |
AT150..SG W/TACHOMETER |
1 | ||
| 83133-1B230 |
AT150,CT150,ST150..SG W/TACHOMETER |
1 | ||
| 83133-1B210 |
ST150;AT15#,CT150..DX,SG W/O TACHOMETER |
1 | ||
| 83133-1B210 |
AT15#,CT150,ST150..DX,SG W/O TACHOMETER |
1 | ||
| 83133-1B230 |
AT150..(4FC,5F)..SG W/TACHOMETER |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1D630 |
AT150..SG W/TACHOMETER |
1 | ||
| 83132-1D570 |
AT150..DX,SG W/CLOCK |
1 | ||
| 83132-1D630 |
AT150..SG W/TACHOMETER |
1 | ||
| 83132-1D630 |
AT150..(4FC,5F)..SG W/TACHOMETER |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-14810 |
AT150..SG |
1 | ||
| 83242-1B710 |
AT150..(4FC,5F)..SG |
1 | ||
| 83242-1B710 |
AT150,ST150..SG |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-14650 |
ST150;AT15#,CT150..DX,SG W/O TACHOMETER |
1 | ||
| 83243-14670 |
AT150..SG W/TACHOMETER |
1 | ||
| 83243-14830 |
AT150..(4FC,5F)..SG W/TACHOMETER |
1 | ||
| 83243-14810 |
AT15#,CT150,ST150..DX,SG W/O TACHOMETER |
1 | ||
| 83243-14830 |
AT150,CT150,ST150..SG W/TACHOMETER |
1 | ||
| 83510 - GAGE ASSY, OIL PRESSURE RECEIVER | ||||
| 83246-14710 |
AT150..(4FC,5F)..SG |
1 | ||
| 83246-14590 |
AT150..SG |
1 | ||
| 83246-14710 |
AT150,ST150..SG |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
AT15#,CT150,ST150..DX,SG ANALOGUE CLOCK |
1 | ||
| 83909-22180 |
AT150..(4FC,5F)..SG DIGITAL CLOCK |
1 | ||
| 83909-22180 |
AT150..SG DIGITAL CLOCK |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20550 |
AT150..DX,SG ANALOGUE |
1 | ||
| 83910-20520 |
AT150..SG DIGITAL |
1 | ||
| 83910-20390 |
AT150..DX,SG ANALOGUE |
1 | ||
| 83910-20520 |
AT150..(4FC,5F)..SG DIGITAL |
1 | ||
| 83910-20520 |
AT150,CT150,ST150..SG DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
AT150..SG DIGITAL CLOCK |
1 | ||
| 83919-14012 |
AT15#,CT150,ST150..DX,SG ANALOGUE CLOCK |
1 | ||
| 83919-12230 |
AT150..(4FC,5F)..SG DIGITAL CLOCK |
1 | ||
| Common parts | ||||
| 90099-00153 | ||||
| 90099-00909 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||

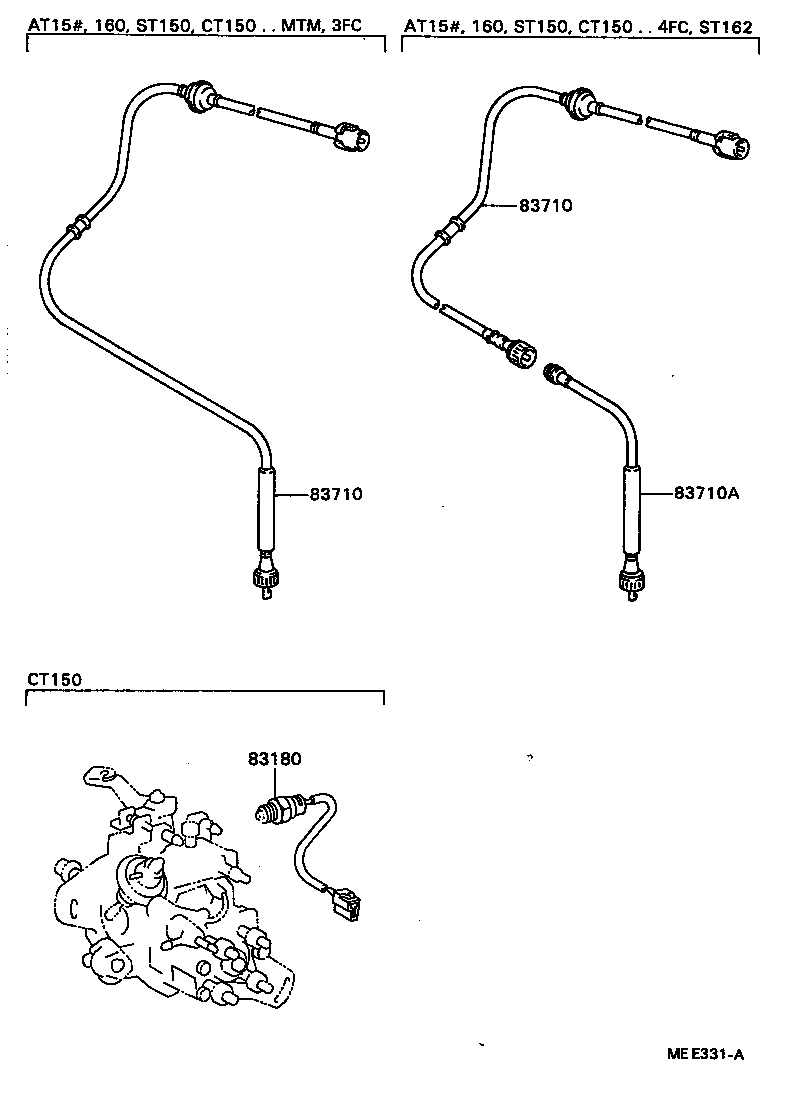

ILLUST NO. 2 OF 2(8405- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-20390 |
AT15#,160,CT150,ST150..3FC,4F,5F |
1 | ||
| 83710-20450 |
ST162;AT15#,CT150,ST150..4FC |
1 | ||
| 83710-20450 |
AT15#,CT150,ST150..ATM |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-20390 |
AT15#,160,CT150,ST150..3FC,4F,5F |
1 | ||
| 83710-20450 |
ST162;AT15#,CT150,ST150..4FC |
1 | ||
| 83710-20450 |
AT15#,CT150,ST150..ATM |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-20460 |
AT15#,160,CT150,ST150..ATM |
1 | ||
| 83710-20460 |
ST162;AT15#,160,CT150,ST150..4FC |
1 | ||
