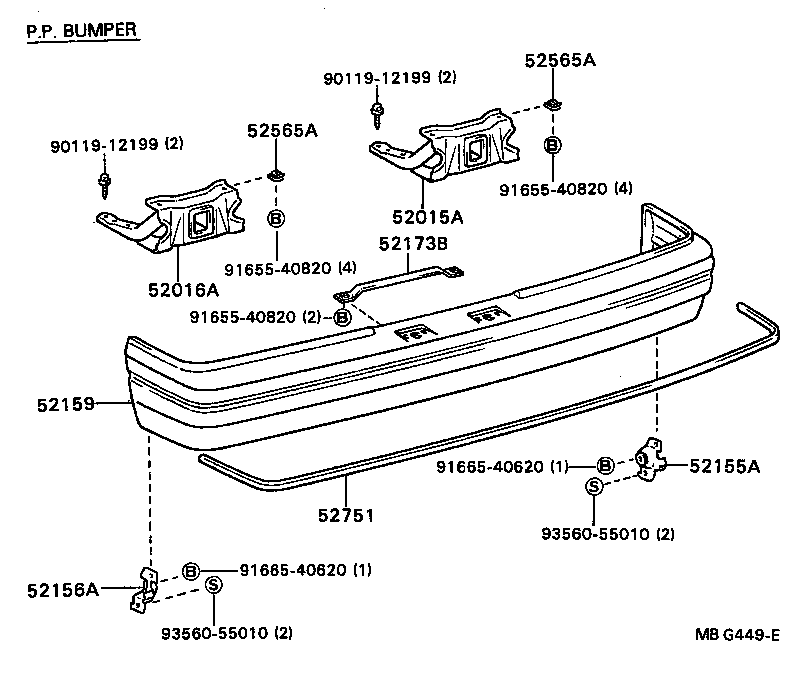

AT150-AEPFS (1984)
Toyota Carina Ff
(8405-8605)DX,SG,ST ; (8605- )DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-20110 |
AT15#,CT150,ST150..DX,SG |
1 | ||
| 52015-20110 |
AT15#,CT150..DX,SG,ST |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52015-20110 |
AT15#,CT150,ST150..DX,SG |
1 | ||
| 52015-20110 |
AT15#,CT150..DX,SG,ST |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-20110 |
AT15#,CT150,ST150..DX,SG |
1 | ||
| 52155-20110 |
AT15#,CT150..DX,SG,ST |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-20110 |
AT15#,CT150..DX,SG,ST |
1 | ||
| 52156-20110 |
AT15#,CT150,ST150..DX,SG |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-20260 |
AT15#,CT150..DX,SG,ST |
1 | ||
| 52159-20270 |
AT150..SG JEUNE |
1 | ||
| 52159-20370 |
AT150..SG JEUNE |
1 | ||
| 52159-2035008 |
AT150,CT150,ST150..SG MY ROAD,SUPER WHITE,SUPER WHITE,040 |
1 | ||
| 52159-20360 |
AT15#,CT150,ST150..SG |
1 | ||
| 52159-2035005 |
AT150..(4FC,5F)..SG THE 40TH,BEIGE-M,BEIGE METALLIC,4G8 |
1 | ||
| 52159-2035005 |
AT150,CT150,ST150..SG MY ROAD,BEIGE-M,BEIGE METALLIC,4G8 |
1 | ||
| 52159-2035003 |
AT150..(4FC,5F)..SG THE 40TH,WORM GRAY-M,WARM GRAY METALLIC,165 |
1 | ||
| 52159-2035002 |
AT150,CT150,ST150..SG MY ROAD,RED,RED,3E6 |
1 | ||
| 52159-20250 |
AT150..SG *UB |
1 | ||
| 52159-2035008 |
AT150..(4FC,5F)..SG THE 40TH,SUPER WHITE,SUPER WHITE,040 |
1 | ||
| 52173B - REINFORCEMENT, REAR BUMPER | ||||
| 52171-20100 |
AT15#,CT150..DX,SG,ST |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-16020 |
AT15#,CT150..DX,SG,ST |
8 | ||
| 52565-16020 |
AT15#,CT150,ST150..DX,SG |
8 | ||
| 52565-20040 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52565-20040 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52565-20040 |
AT150..SG *UB |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-16020 |
AT15#,CT150..DX,SG,ST |
8 | ||
| 52565-16020 |
AT15#,CT150,ST150..DX,SG |
8 | ||
| 52565-20040 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52565-20040 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52565-20040 |
AT150..SG *UB |
1 | ||
| 52751 - MOULDING, REAR BUMPER | ||||
| 52751-20100 |
AT150..SG *UB |
1 | ||
| 52751-20110 |
AT15#,CT150..DX,SG,ST |
1 | ||
| 52751-20080 |
AT150..SG JEUNE |
1 | ||
| 52751-20150 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52751-20150 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52751-20170 |
AT15#,CT150,ST150..SG |
1 | ||
| Common parts | ||||
| 90119-12199 | ||||
| 91655-40820 | ||||
| 91665-40620 | ||||
| 93560-55010 | ||||

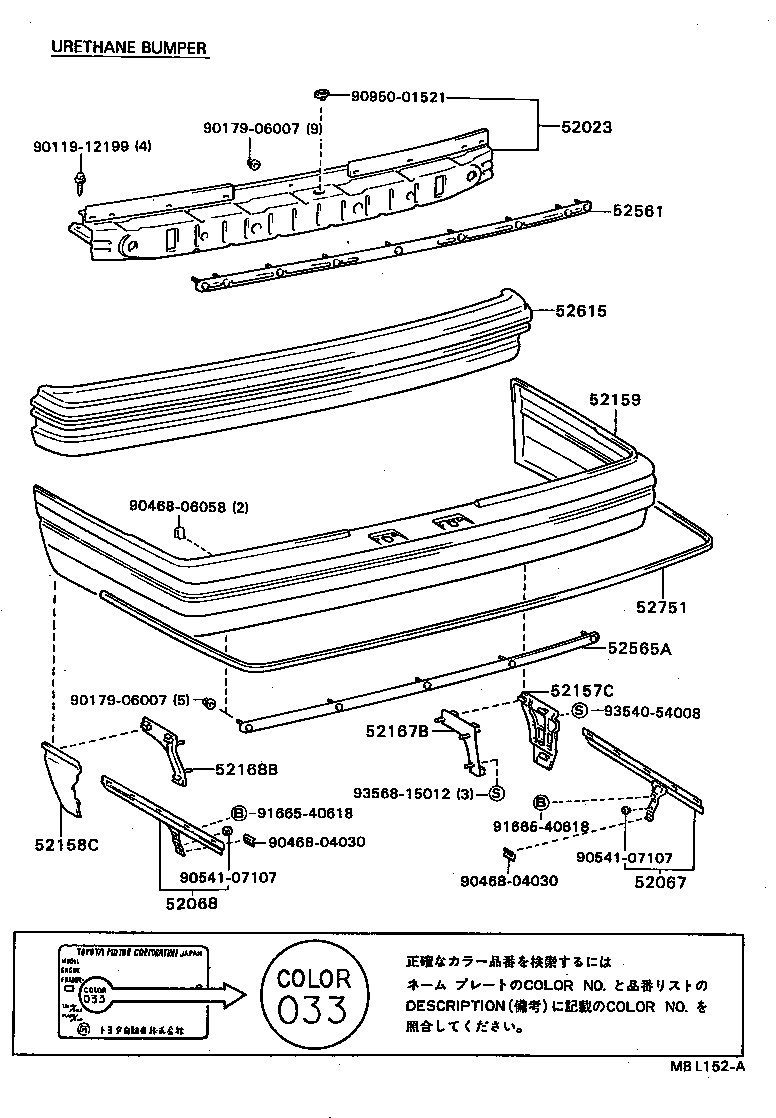

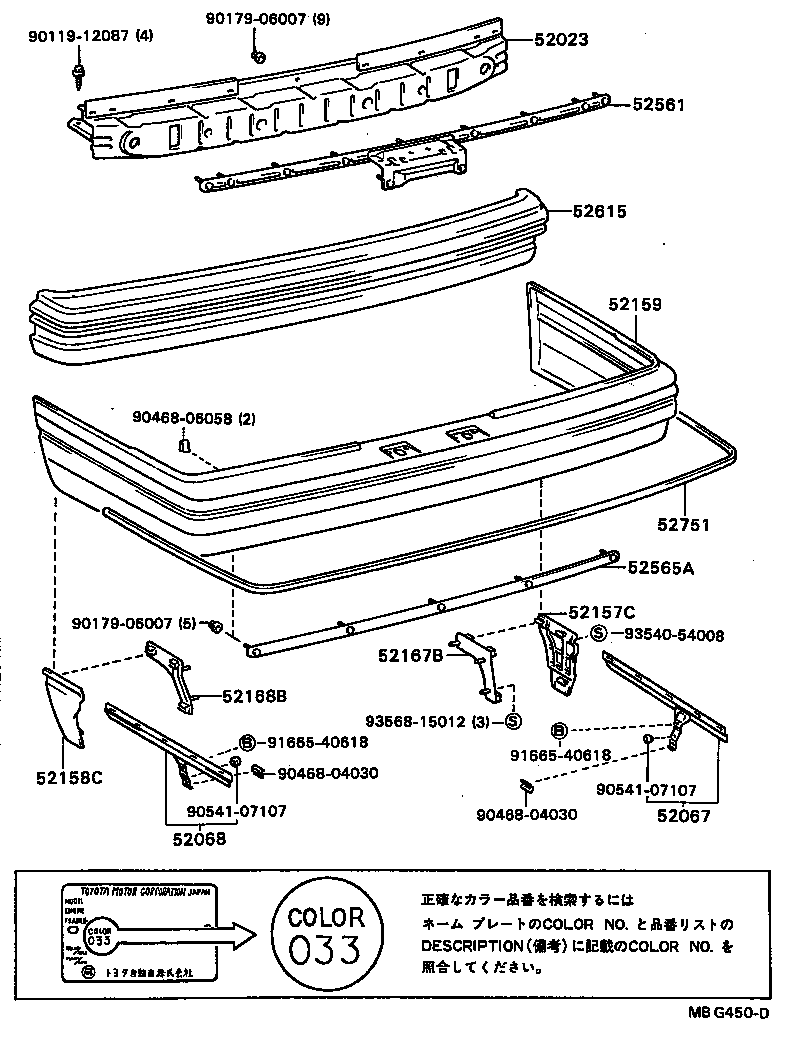

(8405-8410)SE,ST ; (8410-8605)GT,GTR,SE,SG,ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-20140 |
AT150..SG *UB |
1 | ||
| 52023-20230 |
AT150,ST150..SG *UB |
1 | ||
| 52023-20230 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52023-20230 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52067 - SUPPORT SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52067-20010 |
AT150..SG *UB |
1 | ||
| 52067-20020 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52067-20020 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52067-20030 |
AT15#,CT150,ST150..SG |
1 | ||
| 52068 - SUPPORT SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52068-20020 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52068-20010 |
AT150..SG *UB |
1 | ||
| 52068-20020 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52068-20030 |
AT15#,CT150,ST150..SG |
1 | ||
| 52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-20060 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52157-20060 |
AT150..SG *UB |
1 | ||
| 52157-20060 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52157-20060 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST *UB |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-20040 |
AT150..SG *UB |
1 | ||
| 52158-20040 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52158-20040 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52158-20040 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-20260 |
AT15#,CT150..DX,SG,ST |
1 | ||
| 52159-20270 |
AT150..SG JEUNE |
1 | ||
| 52159-20370 |
AT150..SG JEUNE |
1 | ||
| 52159-2035008 |
AT150,CT150,ST150..SG MY ROAD,SUPER WHITE,SUPER WHITE,040 |
1 | ||
| 52159-20360 |
AT15#,CT150,ST150..SG |
1 | ||
| 52159-2035005 |
AT150..(4FC,5F)..SG THE 40TH,BEIGE-M,BEIGE METALLIC,4G8 |
1 | ||
| 52159-2035005 |
AT150,CT150,ST150..SG MY ROAD,BEIGE-M,BEIGE METALLIC,4G8 |
1 | ||
| 52159-2035003 |
AT150..(4FC,5F)..SG THE 40TH,WORM GRAY-M,WARM GRAY METALLIC,165 |
1 | ||
| 52159-2035002 |
AT150,CT150,ST150..SG MY ROAD,RED,RED,3E6 |
1 | ||
| 52159-20250 |
AT150..SG *UB |
1 | ||
| 52159-2035008 |
AT150..(4FC,5F)..SG THE 40TH,SUPER WHITE,SUPER WHITE,040 |
1 | ||
| 52167B - BRACKET, REAR BUMPER EXTENSION MOUNTING, RH | ||||
| 52167-20030 |
AT150..SG *UB |
1 | ||
| 52167-20030 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
1 | ||
| 52167-20030 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52167-20030 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52168B - BRACKET, REAR BUMPER EXTENSION MOUNTING, LH | ||||
| 52168-20020 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52168-20020 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
1 | ||
| 52168-20020 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52168-20020 |
AT150..SG *UB |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-20060 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52561-20060 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52305-20010 |
AT150..SG *UB |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-16020 |
AT15#,CT150..DX,SG,ST |
8 | ||
| 52565-16020 |
AT15#,CT150,ST150..DX,SG |
8 | ||
| 52565-20040 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52565-20040 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52565-20040 |
AT150..SG *UB |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-20110 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52615-20110 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52615-20060 |
AT150..SG *UB |
1 | ||
| 52751 - MOULDING, REAR BUMPER | ||||
| 52751-20100 |
AT150..SG *UB |
1 | ||
| 52751-20110 |
AT15#,CT150..DX,SG,ST |
1 | ||
| 52751-20080 |
AT150..SG JEUNE |
1 | ||
| 52751-20150 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52751-20150 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52751-20170 |
AT15#,CT150,ST150..SG |
1 | ||
| Common parts | ||||
| 90119-12087 | ||||
| 90179-06007 | ||||
| 90468-04030 | ||||
| 90468-06058 | ||||
| 90541-07107 | ||||
| 91665-40618 | ||||
| 93540-54008 | ||||
| 93568-15012 | ||||

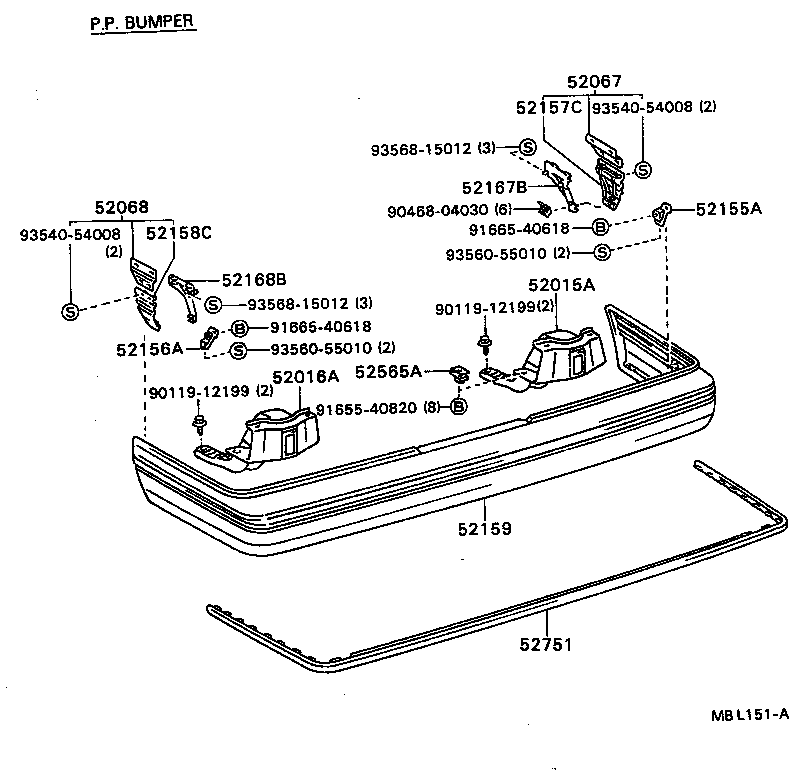

(8605- )SG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-20110 |
AT15#,CT150,ST150..DX,SG |
1 | ||
| 52015-20110 |
AT15#,CT150..DX,SG,ST |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52015-20110 |
AT15#,CT150,ST150..DX,SG |
1 | ||
| 52015-20110 |
AT15#,CT150..DX,SG,ST |
1 | ||
| 52067 - SUPPORT SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52067-20010 |
AT150..SG *UB |
1 | ||
| 52067-20020 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52067-20020 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52067-20030 |
AT15#,CT150,ST150..SG |
1 | ||
| 52068 - SUPPORT SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52068-20020 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52068-20010 |
AT150..SG *UB |
1 | ||
| 52068-20020 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52068-20030 |
AT15#,CT150,ST150..SG |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-20110 |
AT15#,CT150,ST150..DX,SG |
1 | ||
| 52155-20110 |
AT15#,CT150..DX,SG,ST |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-20110 |
AT15#,CT150..DX,SG,ST |
1 | ||
| 52156-20110 |
AT15#,CT150,ST150..DX,SG |
1 | ||
| 52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-20060 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52157-20060 |
AT150..SG *UB |
1 | ||
| 52157-20060 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52157-20060 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST *UB |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-20040 |
AT150..SG *UB |
1 | ||
| 52158-20040 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52158-20040 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52158-20040 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-20260 |
AT15#,CT150..DX,SG,ST |
1 | ||
| 52159-20270 |
AT150..SG JEUNE |
1 | ||
| 52159-20370 |
AT150..SG JEUNE |
1 | ||
| 52159-2035008 |
AT150,CT150,ST150..SG MY ROAD,SUPER WHITE,SUPER WHITE,040 |
1 | ||
| 52159-20360 |
AT15#,CT150,ST150..SG |
1 | ||
| 52159-2035005 |
AT150..(4FC,5F)..SG THE 40TH,BEIGE-M,BEIGE METALLIC,4G8 |
1 | ||
| 52159-2035005 |
AT150,CT150,ST150..SG MY ROAD,BEIGE-M,BEIGE METALLIC,4G8 |
1 | ||
| 52159-2035003 |
AT150..(4FC,5F)..SG THE 40TH,WORM GRAY-M,WARM GRAY METALLIC,165 |
1 | ||
| 52159-2035002 |
AT150,CT150,ST150..SG MY ROAD,RED,RED,3E6 |
1 | ||
| 52159-20250 |
AT150..SG *UB |
1 | ||
| 52159-2035008 |
AT150..(4FC,5F)..SG THE 40TH,SUPER WHITE,SUPER WHITE,040 |
1 | ||
| 52167B - BRACKET, REAR BUMPER EXTENSION MOUNTING, RH | ||||
| 52167-20030 |
AT150..SG *UB |
1 | ||
| 52167-20030 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
1 | ||
| 52167-20030 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52167-20030 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52168B - BRACKET, REAR BUMPER EXTENSION MOUNTING, LH | ||||
| 52168-20020 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52168-20020 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
1 | ||
| 52168-20020 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52168-20020 |
AT150..SG *UB |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-16020 |
AT15#,CT150..DX,SG,ST |
8 | ||
| 52565-16020 |
AT15#,CT150,ST150..DX,SG |
8 | ||
| 52565-20040 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52565-20040 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52565-20040 |
AT150..SG *UB |
1 | ||
| 52751 - MOULDING, REAR BUMPER | ||||
| 52751-20100 |
AT150..SG *UB |
1 | ||
| 52751-20110 |
AT15#,CT150..DX,SG,ST |
1 | ||
| 52751-20080 |
AT150..SG JEUNE |
1 | ||
| 52751-20150 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52751-20150 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52751-20170 |
AT15#,CT150,ST150..SG |
1 | ||
| Common parts | ||||
| 90119-12199 | ||||
| 90468-04030 | ||||
| 91655-40820 | ||||
| 91665-40618 | ||||
| 93540-54008 | ||||
| 93560-55010 | ||||
| 93568-15012 | ||||
(8605- )GT,GTR,SE,SG,ST ; (8712-8804)DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-20140 |
AT150..SG *UB |
1 | ||
| 52023-20230 |
AT150,ST150..SG *UB |
1 | ||
| 52023-20230 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52023-20230 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52067 - SUPPORT SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52067-20010 |
AT150..SG *UB |
1 | ||
| 52067-20020 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52067-20020 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52067-20030 |
AT15#,CT150,ST150..SG |
1 | ||
| 52068 - SUPPORT SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52068-20020 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52068-20010 |
AT150..SG *UB |
1 | ||
| 52068-20020 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52068-20030 |
AT15#,CT150,ST150..SG |
1 | ||
| 52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-20060 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52157-20060 |
AT150..SG *UB |
1 | ||
| 52157-20060 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52157-20060 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST *UB |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-20040 |
AT150..SG *UB |
1 | ||
| 52158-20040 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52158-20040 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52158-20040 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-20260 |
AT15#,CT150..DX,SG,ST |
1 | ||
| 52159-20270 |
AT150..SG JEUNE |
1 | ||
| 52159-20370 |
AT150..SG JEUNE |
1 | ||
| 52159-2035008 |
AT150,CT150,ST150..SG MY ROAD,SUPER WHITE,SUPER WHITE,040 |
1 | ||
| 52159-20360 |
AT15#,CT150,ST150..SG |
1 | ||
| 52159-2035005 |
AT150..(4FC,5F)..SG THE 40TH,BEIGE-M,BEIGE METALLIC,4G8 |
1 | ||
| 52159-2035005 |
AT150,CT150,ST150..SG MY ROAD,BEIGE-M,BEIGE METALLIC,4G8 |
1 | ||
| 52159-2035003 |
AT150..(4FC,5F)..SG THE 40TH,WORM GRAY-M,WARM GRAY METALLIC,165 |
1 | ||
| 52159-2035002 |
AT150,CT150,ST150..SG MY ROAD,RED,RED,3E6 |
1 | ||
| 52159-20250 |
AT150..SG *UB |
1 | ||
| 52159-2035008 |
AT150..(4FC,5F)..SG THE 40TH,SUPER WHITE,SUPER WHITE,040 |
1 | ||
| 52167B - BRACKET, REAR BUMPER EXTENSION MOUNTING, RH | ||||
| 52167-20030 |
AT150..SG *UB |
1 | ||
| 52167-20030 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
1 | ||
| 52167-20030 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52167-20030 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52168B - BRACKET, REAR BUMPER EXTENSION MOUNTING, LH | ||||
| 52168-20020 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52168-20020 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
1 | ||
| 52168-20020 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52168-20020 |
AT150..SG *UB |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-20060 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52561-20060 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52305-20010 |
AT150..SG *UB |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-16020 |
AT15#,CT150..DX,SG,ST |
8 | ||
| 52565-16020 |
AT15#,CT150,ST150..DX,SG |
8 | ||
| 52565-20040 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52565-20040 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52565-20040 |
AT150..SG *UB |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-20110 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52615-20110 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52615-20060 |
AT150..SG *UB |
1 | ||
| 52751 - MOULDING, REAR BUMPER | ||||
| 52751-20100 |
AT150..SG *UB |
1 | ||
| 52751-20110 |
AT15#,CT150..DX,SG,ST |
1 | ||
| 52751-20080 |
AT150..SG JEUNE |
1 | ||
| 52751-20150 |
AT150..(4FC,5F)..SG THE 40TH,*UB |
1 | ||
| 52751-20150 |
AT150,CT150,ST150..SG MY ROAD,*UB |
1 | ||
| 52751-20170 |
AT15#,CT150,ST150..SG |
1 | ||
| Common parts | ||||
| 90119-12199 | ||||
| 90179-06007 | ||||
| 90468-04030 | ||||
| 90468-06058 | ||||
| 90541-07107 | ||||
| 90950-01521 | ||||
| 91665-40618 | ||||
| 93540-54008 | ||||
| 93568-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
